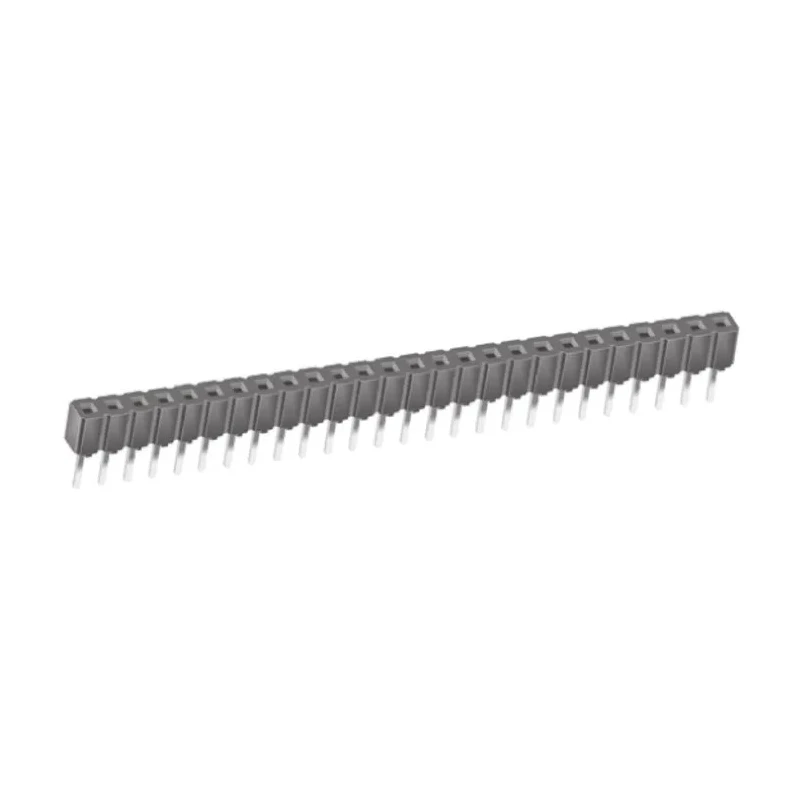

Samtec CES Series 26-Contact 1 Row 2.54 mm Pitch Through Hole PCB Socket CES-126-01-T-S

Samtec CES-126-01-T-S is a high-quality PCB socket designed for board-to-board connections with 26 contacts arranged in a single row and a 2.54 mm pitch. The socket features a straight orientation and utilizes a through hole termination type to ensure strong solder joints on the PCB.

The housing is crafted from black glass filled polyester, providing excellent mechanical strength and thermal stability. The contacts are constructed from phosphor bronze and coated with matte tin plating for corrosion resistance and reliable electrical performance. This assembly supports a current rating of 12 A and a voltage rating up to 333 V, suitable for various industrial and electronic applications.

Operating temperature ranges from -55°C to 105°C, making it suitable for harsh environments in electronics manufacturing and industrial equipment.

The low profile design includes a 3.25 mm solder tail, contributing to a compact and efficient PCB layout. The CES series sockets are RoHS compliant, ensuring environmentally safe materials and manufacturing processes.

This model mates effectively with TLW series low profile square post headers, TSM series square post headers, and TSW series square post headers, enhancing design flexibility and compatibility across PCB assemblies.

Board-to-board through hole closed entry socket strip with 2.54 mm pitch. Black glass filled polyester housing for durability and thermal resistance. Phosphor bronze contacts with matte tin plating for corrosion resistance.

Voltage rating of 333 V and current rating of 12 A for robust electrical performance. Operating temperature range from -55°C to 105°C suitable for diverse applications. Low profile design with a 3.25 mm solder tail for compact PCB integration.

RoHS compliant for environmentally responsible manufacturing. Mates with TLW, TSM, and TSW series square post headers.

This Samtec CES series PCB socket is ideal for industrial, electronics manufacturing, and board assembly applications, providing reliable and durable electrical connections essential for modern electronic devices. For more products and options, explore the PCB Sockets category on EnvMart.
