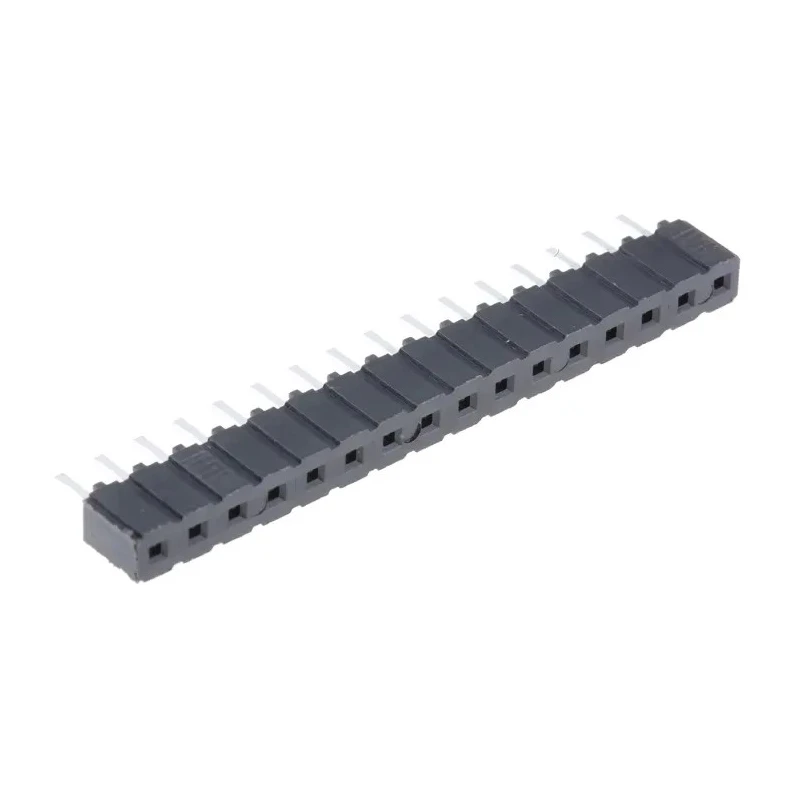

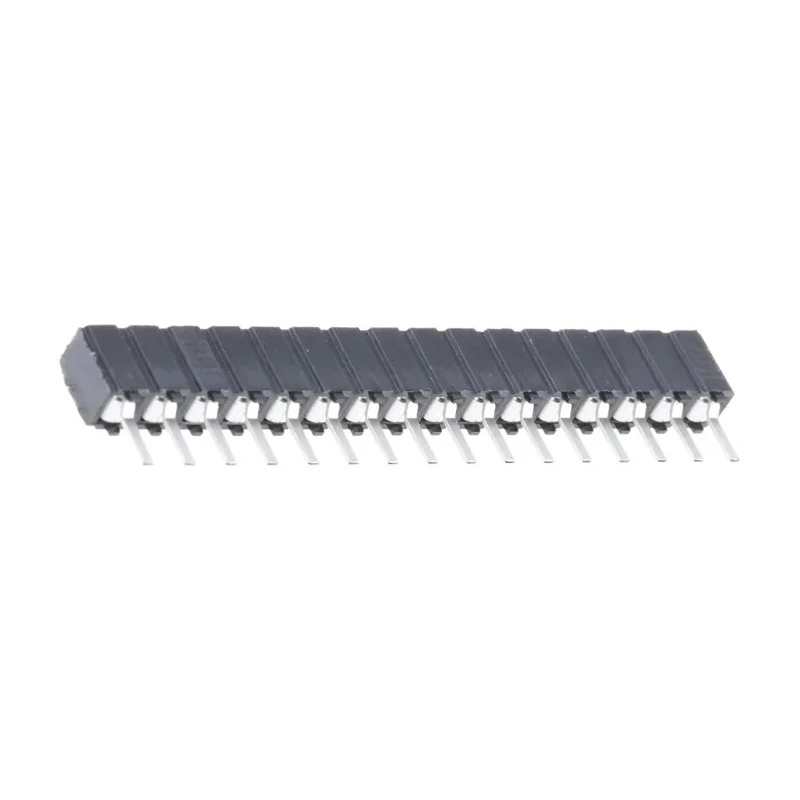

Samtec CES Series Straight Through Hole PCB Socket 16-Contact 1 Row 2.54 mm Pitch 12A Current Rating CES-116-01-T-S
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 400V ac |
| Brand | Samtec |
| Orientation | Straight |
| Current | 12A |
| Model | CES-116-01-T-S |
| Mount Type | Through Hole |
| Housing Material | Black Glass Filled Polyester |
| Contact Material | Bronze |
| Series | CES |
| Termination Type | Through Hole |
| Maximum Operating Temperature | 105°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Matt Tin |
| Number of Contacts | 16 |
| Connector System | Board-to-Board |
Key Features
- This PCB socket supports a high current rating of 12A for demanding electronic circuits.
- The straight through-hole mount ensures stable and reliable installation onto circuit boards.
- The black glass filled polyester housing offers strong durability and heat resistance.
- Contact points are made from bronze material with matt tin plating for corrosion resistance and long-lasting performance.
- Supports operating voltages up to 400V AC suitable for diverse applications.
- The connector system is designed for board-to-board connections improving assembly efficiency.
- Operating temperature range from -55°C to 105°C accommodates harsh environments.
Product Description
Samtec CES-116-01-T-S is a premium PCB socket featuring 16 contact points arranged in a single row with a pitch of 2.54 mm. Designed with a straight orientation and through-hole mounting type, it enables secure and reliable board-to-board electronic connections.
Constructed from black glass filled polyester housing, the socket provides excellent mechanical strength and thermal stability. The bronze contact material plated with matt tin adds enhanced corrosion resistance and durability to maintain consistent electrical performance.
Rated for a robust 12A current and 400V AC voltage, this connector is well-suited for high-power industrial, automation, and electronics applications. It supports operating temperatures ranging from -55°C to 105°C which ensures reliable function under extreme conditions.
The solder termination and through-hole mount ensure stable assembly on the PCB, reducing mechanical stress in high-vibration environments. Common applications include industrial automation controls, electronic devices requiring robust power transmission, and mechanical interface systems.
This PCB socket supports a high current rating of 12A for demanding electronic circuits. The straight through-hole mount ensures stable and reliable installation onto circuit boards. The black glass filled polyester housing offers strong durability and heat resistance.
Contact points are made from bronze material with matt tin plating for corrosion resistance and long-lasting performance. Supports operating voltages up to 400V AC suitable for diverse applications. The connector system is designed for board-to-board connections improving assembly efficiency.
Operating temperature range from -55°C to 105°C accommodates harsh environments. This product meets RoHS compliance standards, reflecting its environmental safety. Explore more in the PCB Sockets category for compatible connectors and mounting equipment at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket has a current rating of 12A, making it suitable for demanding electronic circuits.
The maximum operating voltage for the CES-116-01-T-S is 400V AC, allowing it to be used in various high-power applications.
The contact points in this model are arranged with a pitch of 2.54 mm.
The housing is made from black glass filled polyester, while the contact points are bronze with matt tin plating for corrosion resistance.
It operates within a temperature range of -55°C to 105°C, making it suitable for harsh environments.
This model features 16 contact points arranged in a single row.
The CES-116-01-T-S uses a through-hole mounting type for secure installation on circuit boards.
Yes, this product meets RoHS compliance standards, ensuring its environmental safety.
It is suitable for applications in industrial automation controls, electronic devices requiring robust power transmission, and mechanical interface systems.
This model has a straight orientation, facilitating easy board-to-board connections.
The CES-116-01-T-S utilizes a board-to-board connector system, enhancing assembly efficiency.
The CES-116-01-T-S is manufactured in India.
