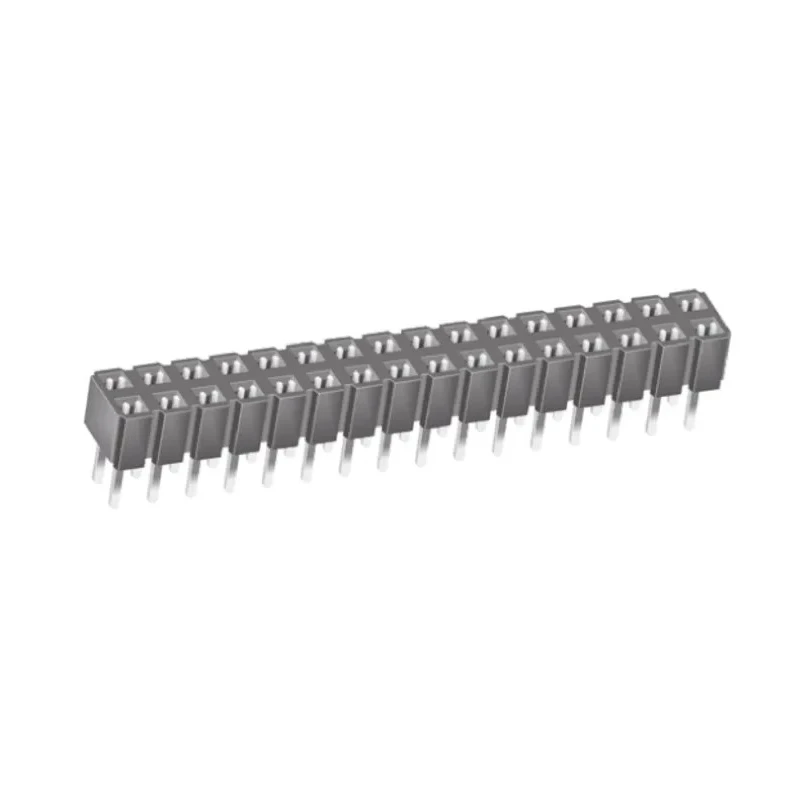

Samtec CES Series Straight Through Hole PCB Socket 32-Contact 2 Row 2.54 mm Pitch Through Hole CES-116-01-T-D

Samtec CES-116-01-T-D is a high-quality straight through hole PCB socket from the CES Series, offering 32 contacts arranged in 2 rows with a 2.54 mm pitch suitable for board-to-board connections. This connector is engineered for industrial and commercial electronics manufacturing, featuring a low profile design with a 3.25 mm solder tail to facilitate quick insertion and soldering.

The housing is crafted from black glass filled polyester, providing excellent mechanical strength and insulation. Contacts are made from phosphor bronze with matte tin plating to ensure durable and consistent conductivity while minimizing oxidation and corrosion. The socket supports a current rating of 12 A and voltage up to 333 V, making it suitable for a range of electrical assembly requirements.

It operates reliably within temperature extremes spanning from -55°C to +105°C, making it suitable for demanding industrial environments. The through hole termination combined with a straight orientation allows straightforward mounting on printed circuit boards. This product complies with RoHS directives, ensuring environmentally safe manufacturing.

The CES-116-01-T-D socket is compatible with various Samtec header series such as TLW low profile square post headers, TSM square post headers, and TSW square post headers, allowing flexible system designs. Such adaptability makes it valuable in electronics manufacturing, testing equipment, and other applications requiring secure, modular PCB connections.

The socket features a low profile design with a 3.25 mm solder tail for efficient soldering. Constructed with black glass filled polyester housing for durable insulation. Phosphor bronze contacts with matte tin plating ensure reliable electrical connection.

Supports a maximum current of 12 A and voltage rating of 333 V. Operates effectively within a temperature range of -55°C to +105°C. Through hole termination type and straight orientation for versatile mounting options. Complies with RoHS standards for environmental safety.

Mates with TLW, TSM, and TSW series square post headers for flexible system design. Designed for industrial and electronic component assembly applications. Explore further connectors and PCB Sockets in the Electronics & Electricals category at EnvMart for diverse industrial and laboratory use cases.
