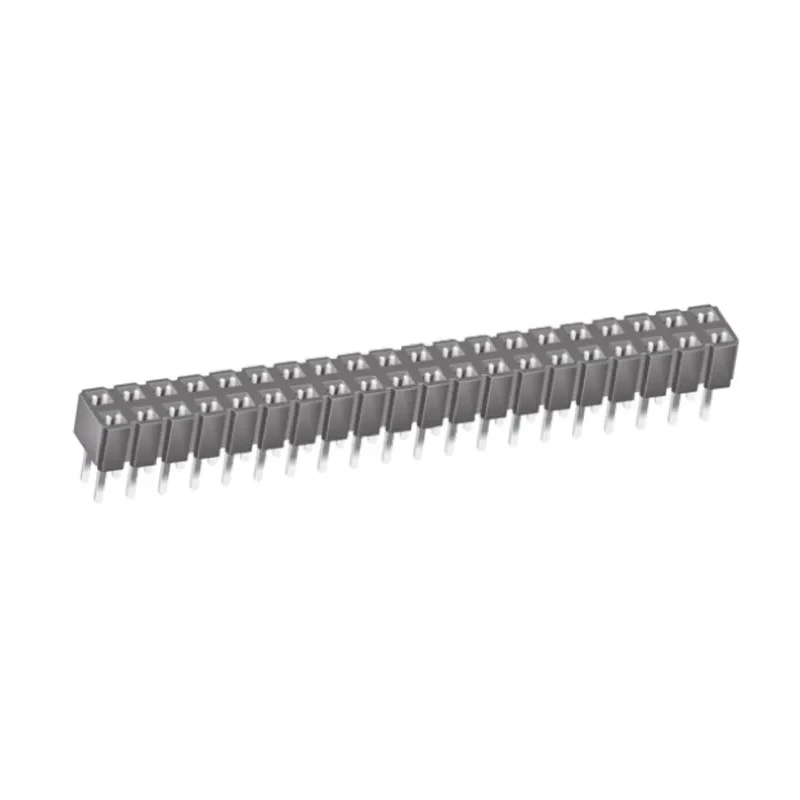

Samtec CES Series Straight Through Hole PCB Socket, 40-Contact, 2 Row, 2.54 mm Pitch, Through Hole Termination CES-120-01-T-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 333V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 12A |
| Model | CES-120-01-T-D |
| Mount Type | Through Hole |
| Housing Material | Black Glass Filled Polyester |
| Contact Material | Bronze |
| Series | CES |
| Termination Type | Through Hole |
| Maximum Operating Temperature | 105°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Number of Contacts | 40 |
| Connector System | Board-to-Board |
| TLW series low profile square post headers | see stock number 765-6168 typically |
| TSM series square post headers | see stock number 765-6613 typically |
| TSW series square post headers | see stock number 767-1044 typically |
Key Features
- Features 40 contacts arranged in 2 rows with a 2.54 mm pitch for compact PCB integration.
- Terminated using through hole technology for secure and robust mounting.
- Constructed with black glass filled polyester housing for enhanced durability.
- Contacts are made from phosphor bronze with matte tin plating to ensure excellent conductivity and corrosion resistance.
- Operates reliably within temperature ranges from -55°C to +105°C.
- Rated for a maximum current of 12 A and voltage up to 333 V for demanding electronic applications.
- Low profile design with a 3.25 mm solder tail for streamlined assembly.
- Compatible with TLW, TSM, and TSW series square post headers for versatile use.
Product Description
Samtec CES-120-01-T-D is a high-quality CES Series straight through hole PCB socket featuring 40 contacts arranged in 2 rows with a standard 2.54 mm pitch. It is designed to provide reliable and durable board-to-board connections in various electronics applications.
The socket housing is manufactured from black glass filled polyester, offering strength and resistance to environmental factors. The contacts are phosphor bronze plated with a matte tin finish to ensure excellent electrical conductivity and corrosion resistance.
This socket supports through hole termination, allowing sturdy mounting on PCBs, and features a low-profile design with a 3.25 mm solder tail to facilitate compact and efficient PCB assembly.
Operating within a temperature range of -55°C to +105°C, the connector is capable of handling up to 12 A current and 333 V voltage, making it suitable for demanding industrial, commercial, and electronics manufacturing uses.
The CES series sockets are compliant with RoHS directives, ensuring environmentally friendly manufacturing and usage. 40 contacts arranged in 2 rows with 2.54 mm pitch. Through hole termination for robust mounting. Black glass filled polyester housing for durability.
Phosphor bronze contacts with matte tin plating. Operates between -55°C to 105°C temperature range. 12 A current and 333 V voltage rating. Low profile design with 3.25 mm solder tail. Compatible with TLW, TSM, and TSW series headers.
RoHS compliant for environmental safety.
These sockets are ideal for applications in electronics manufacturing, industrial equipment, automation systems, and PCB prototyping. Their reliable connection and durable build ensure long-lasting performance in critical electronic assemblies.
Explore more high-quality connectors and PCB socket solutions in EnvMart's Electronics & Electricals category for efficient and precision wiring needs.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB socket is 2.54 mm, which allows for compact integration on printed circuit boards.
This model features 40 contacts arranged in 2 rows, providing multiple connection points for board-to-board applications.
It is rated for a maximum current of 12 A, making it suitable for demanding electronic applications.
The CES-120-01-T-D can handle a maximum voltage of 333 V, ensuring it can be used in various electronic circuits.
The housing is made from black glass filled polyester, while the contacts are made from phosphor bronze with matte tin plating for conductivity and corrosion resistance.
It operates reliably within a temperature range of -55°C to +105°C, suitable for various environmental conditions.
This model uses through hole termination, allowing for secure and robust mounting on PCBs.
It is compatible with TLW, TSM, and TSW series square post headers, enhancing its versatility for different applications.
This socket features a low-profile design with a 3.25 mm solder tail, facilitating efficient PCB assembly.
Yes, this PCB socket is RoHS compliant, ensuring it meets environmental safety standards.
It utilizes a board-to-board connector system, making it suitable for connecting two PCBs together.
The country of origin for this model is India, reflecting its manufacturing location.
