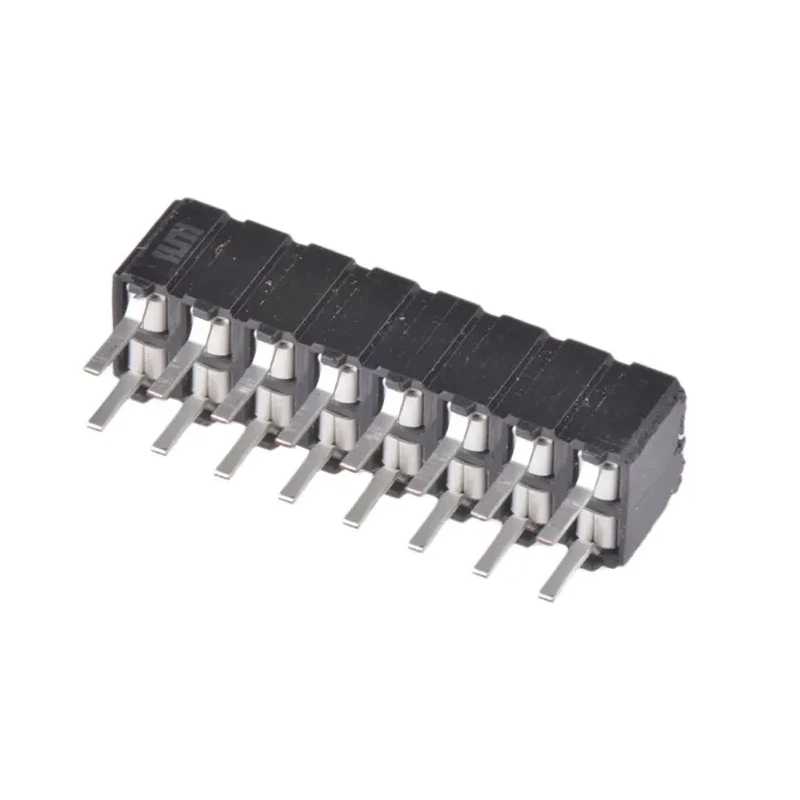

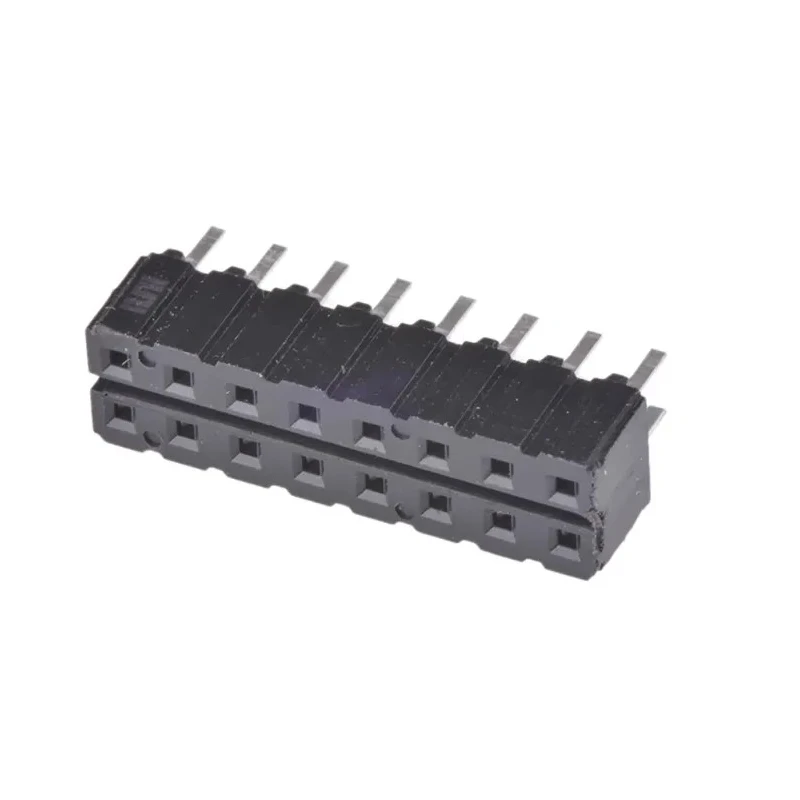

Samtec CES Series Straight Through Hole PCB Socket 16-Contact 2 Row 2.54 mm Pitch CES-108-01-T-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 333V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 12A |
| Model | CES-108-01-T-D |
| Mount Type | Through Hole |
| Housing Material | Black Glass Filled Polyester |
| Contact Material | Bronze |
| Series | CES |
| Termination Type | Through Hole |
| Maximum Operating Temperature | 105°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Number of Contacts | 16 |
| Connector System | Board-to-Board |
| TLW series low profile square post headers | see stock number 765-6168 typically |
| TSM series square post headers | see stock number 765-6613 typically |
| TSW series square post headers | see stock number 767-1044 typically |
Key Features
- Constructed from black glass filled polyester housing for durability.
- Features phosphor bronze contacts with matte tin plating for reliable electrical performance.
- Designed for through hole mounting with a low profile of 3.25 mm solder tail.
- Supports up to 12A current and operates at voltage up to 333V.
- Operates within temperature range of -55°C to 105°C.
- Complies with RoHS standards for environmental safety.
- Compatible with TLW, TSM, and TSW series square post headers.
- Ideal for industrial and electronic applications requiring stable PCB connections.
Product Description
Samtec CES-108-01-T-D is a high-quality PCB Socket from the CES series featuring a 16-contact, 2-row straight through hole design with a standard 2.54 mm pitch. The socket's black glass filled polyester housing ensures mechanical strength and resistance to thermal cycling. Its phosphor bronze contact material, coupled with matte tin plating, provides excellent conductivity and corrosion resistance.
Designed specifically for through hole mounting, this socket has a low profile 3.25 mm solder tail allowing compact PCB layouts. It can handle currents up to 12 Amperes and voltages up to 333 Volts, making it suitable for various electronic and industrial control applications.
Operating temperature range from -55°C to 105°C enables use in harsh environmental conditions such as industrial automation, manufacturing equipment, and power electronics. The product meets RoHS environmental requirements, ensuring it is free from hazardous substances.
This PCB Socket is compatible with Samtec TLW, TSM, and TSW series square post headers, enabling flexible board-to-board or wire-to-board connectivity solutions. Its robust construction ensures reliable electrical contact over extended duty cycles.
Constructed from black glass filled polyester housing for durability. Phosphor bronze contact material with matte tin plating for corrosion resistance. Through hole mounting with a low profile 3.25 mm solder tail. Supports 12A current and 333V voltage operation.
Wide operating temperature range from -55°C to 105°C. RoHS compliant for environmental safety. Compatible with TLW, TSM, and TSW series square post headers. Suitable for industrial, electronics manufacturing, and power connector applications.
Samtec CES series sockets are widely used in electronic components applications including industrial tools, power connectors, and board-to-board connections. They facilitate easy and reliable PCB interface solutions for demanding environments. Explore more Samtec connectors and sockets at EnvMart for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a maximum current of 12 Amperes.
This model operates at a voltage of up to 333 Volts.
It operates within a temperature range of -55°C to 105°C.
The housing is made from black glass filled polyester, and the contacts are made of phosphor bronze with matte tin plating.
It is designed for through hole mounting with a low profile 3.25 mm solder tail.
It is compatible with TLW, TSM, and TSW series square post headers.
This socket features 16 contacts arranged in 2 rows.
The contact pitch is 2.54 mm.
Yes, it complies with RoHS standards for environmental safety.
It utilizes a board-to-board connector system.
The socket has a straight orientation.
The country of origin for this socket is India.
