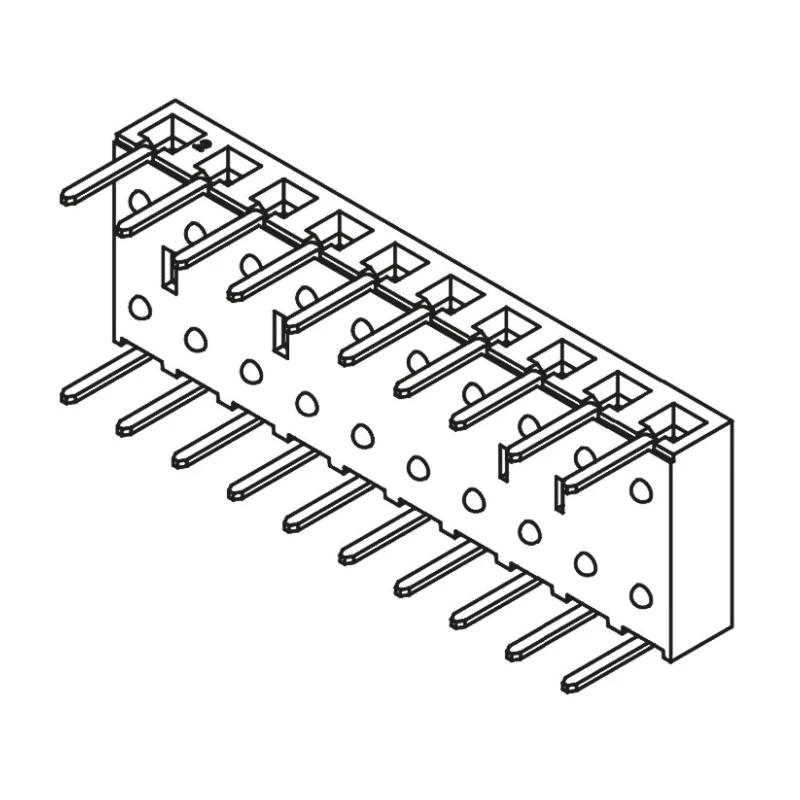

Samtec BCS Series Right Angle Through Hole PCB Socket, 10-Contact, 1 Row, 2.54 mm Pitch, 450V, 5.9A Current BCS-110-L-S-HE
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 450V |
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 5.9A |
| Model | BCS-110-L-S-HE |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | BCS |
| Termination Type | Through Hole |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Standards/Approvals | CHINA RoHS, EU REACH, EU RoHS |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Connector System | Board-to-Board |
| Row Pitch | 0.1in |
Key Features
- This PCB socket features a right angle orientation for efficient board stacking.
- Constructed with liquid crystal polymer housing for durability and thermal stability.
- Phosphor bronze contacts plated with 0.25μm gold ensure excellent conductivity.
- Rated for 5.9A current and 450V operating voltage, suitable for demanding applications.
- Designed for through hole mounting providing secure mechanical and electrical connections.
- Operating temperature range from -55°C to 125°C supports wide industrial environments.
- Compatible with various Samtec header series for flexible board-to-board configurations.
- Compliant with CHINA RoHS, EU REACH, and EU RoHS environmental standards.
Product Description
Samtec BCS-110-L-S-HE is a high-quality right angle through hole PCB socket featuring 10 contacts arranged in a single row with a standard 2.54 mm pitch. Manufactured with a black liquid crystal polymer housing, this board-to-board connector is engineered for durability and long-term performance in industrial and commercial electronic applications.
The contact system uses phosphor bronze material with a 0.25 micrometer gold plating on the contact surfaces combined with matte tin on the tails for optimal conductivity and corrosion resistance. Rated for a current of 5.9 amps and voltage up to 450 volts, it supports robust electrical performance under varying load conditions.
Mounting is through hole style, ensuring strong mechanical stability on printed circuit boards. The right angle orientation helps save board space and facilitates easy stacking in complex board assemblies. Operating temperature range from -55°C to 125°C guarantees reliable performance in harsh environmental conditions.
This socket is compatible with several Samtec header series including TSW, TSM, DW, and EW, enabling versatile board-to-board and wire-to-board configurations. It conforms to CHINA RoHS, EU REACH, and EU RoHS directives, ensuring eco-friendly and compliance-certified usage.
Right angle orientation for efficient PCB layout. Liquid crystal polymer housing for thermal and mechanical durability. Gold-plated phosphor bronze contacts ensure low resistance connections. Supports up to 5.9A current and 450V voltage for robust electrical performance.
Through hole mounting provides reliable mechanical fastening. Wide temperature operating range of -55°C to 125°C. Compatible with multiple Samtec header series for board stacking versatility. RoHS and REACH compliant, supporting environmental safety standards.
Single row, 10-contact configuration for precise electrical assembly.
Ideal for use in industrial, laboratory, manufacturing, and commercial electronic equipment, Samtec BCS-110-L-S-HE socket offers reliable connectivity and durability. Browse more PCB Sockets and connectors on EnvMart to find compatible accessories and related products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 5.9A, making it suitable for robust electrical performance in various applications.
The operating voltage for this PCB socket is 450V, ensuring it can handle demanding electrical conditions.
The contacts in this socket are arranged with a pitch of 2.54 mm, which is standard for many PCB applications.
It features a housing made of liquid crystal polymer and contacts made of phosphor bronze with gold plating for optimal conductivity.
The operating temperature range is from -55°C to 125°C, allowing it to perform reliably in harsh environments.
This socket has a total of 10 contacts arranged in a single row, facilitating precise electrical assembly.
It utilizes through hole mounting, which provides strong mechanical stability on printed circuit boards.
Yes, it is compatible with several Samtec header series including TSW, TSM, DW, and EW, allowing for versatile configurations.
This model is compliant with CHINA RoHS, EU REACH, and EU RoHS environmental standards, ensuring eco-friendly usage.
The socket features a right angle orientation, which helps save board space and facilitates easy stacking in complex assemblies.
This model is designed as a board-to-board connector system, suitable for various electronic applications.
The country of origin for this PCB socket is India, indicating its manufacturing location.
