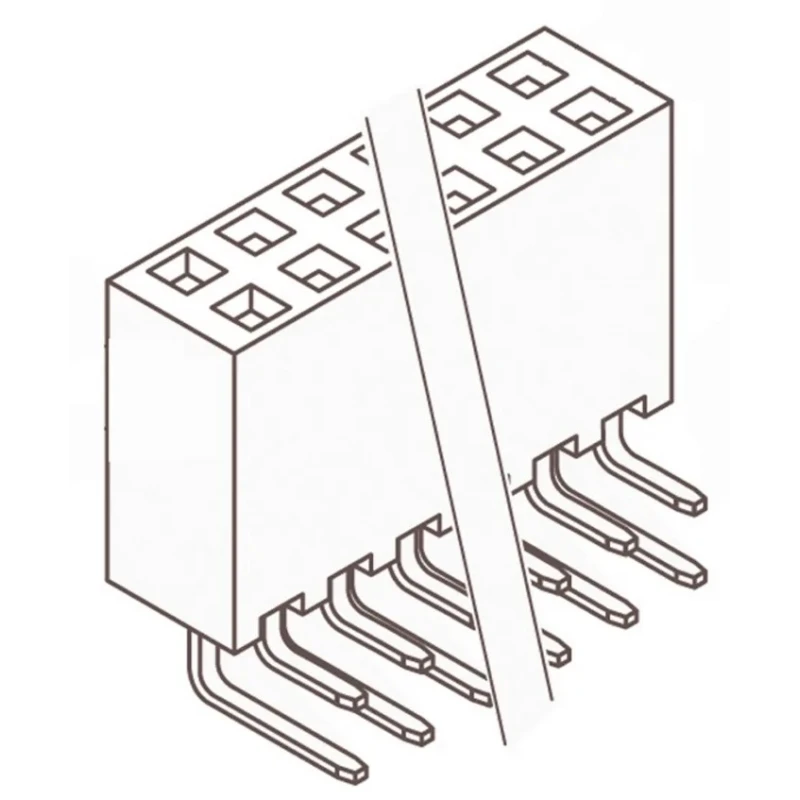

Samtec PCB Socket 8-Contact 2 Row 2.54 mm Pitch Through Hole Right Angle Solder SSW-104-02-G-D-RA
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 6.9A |
| Model | SSW-104-02-G-D-RA |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 2.5mm |
Key Features
- Manufactured with a liquid crystal polymer housing for durability.
- Contacts are made of bronze with gold plating to ensure reliable conductivity.
- Designed for board-to-board connection with a current rating of 6.9 A.
- Suitable for operating temperatures from -55°C to 125°C.
- Right angle orientation with a 2.5 mm row pitch for compact PCB layouts.
- Through hole mounting ensures stable mechanical and electrical connection.
- Compatible with Samtec TSW and TSM series headers for diverse assembly options.
- Rated for 550 V voltage withstand ensuring robustness in electronic circuits.
Product Description
Samtec SSW-104-02-G-D-RA is a high-quality PCB socket designed for board-to-board connections, providing 8 contacts arranged in 2 rows with a precise 2.54 mm pitch. The socket features through hole mounting and a right angle orientation for versatile PCB design integration.
The housing is constructed from liquid crystal polymer, offering excellent durability and stability in various industrial and commercial applications. Contacts are made of bronze with gold plating, enhancing conductivity and resisting corrosion, which supports a current rating of 6.9 A and voltage rating of 550 V, making it suitable for demanding electronic environments.
Operating temperature ranges from -55°C to 125°C, allowing reliable performance in extreme temperature conditions. The solder type termination ensures robust and secure attachment to printed circuit boards.
This socket series is specifically compatible with Samtec's TSW and TSM series square post headers, supporting a wide range of configurations including single and double rows and varying post lengths, thereby enhancing flexibility in manufacturing and prototyping.
The SSW-104-02-G-D-RA model offers a 2.5 mm row pitch and a right angle connector system facilitating efficient space utilization on PCBs. Its precision and durability make it ideal for industrial automation, instrumentation, telecommunications, and consumer electronics.
Manufactured with a liquid crystal polymer housing for durability. Contacts made of bronze with gold plating provide dependable conductivity. Designed for board-to-board connections with 8 contacts in a 2-row 2.54 mm pitch.
Supports current up to 6.9 A and voltage up to 550 V. Operating temperature range is -55°C to 125°C for reliable performance. Right angle orientation and through hole mount type for secure PCB integration. Compatible with Samtec TSW and TSM series headers.
Ideal for applications in industrial, telecommunications, and electronic manufacturing. Explore more PCB Sockets and related components in the Electronics & Electricals category on EnvMart to meet your specific technical and industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this model is 6.9 A, making it suitable for various electronic applications.
This PCB socket has a voltage withstand rating of 550 V, ensuring robustness in electronic circuits.
It operates reliably within a temperature range of -55°C to 125°C, suitable for extreme conditions.
This socket utilizes through hole mounting, providing a stable mechanical and electrical connection.
The housing is made of liquid crystal polymer, while the contacts are constructed from bronze with gold plating for enhanced conductivity.
This model features 8 contacts arranged in 2 rows, with a pitch of 2.54 mm.
Yes, it is compatible with Samtec's TSW and TSM series headers, allowing for diverse assembly options.
The socket is designed with a right angle orientation, facilitating compact PCB layouts.
It uses a solder type termination, ensuring a secure attachment to printed circuit boards.
The pitch between the rows of contacts is 2.5 mm, optimizing space utilization on PCBs.
This model is suitable for applications in industrial automation, instrumentation, telecommunications, and consumer electronics.
The country of origin for this model is India.
