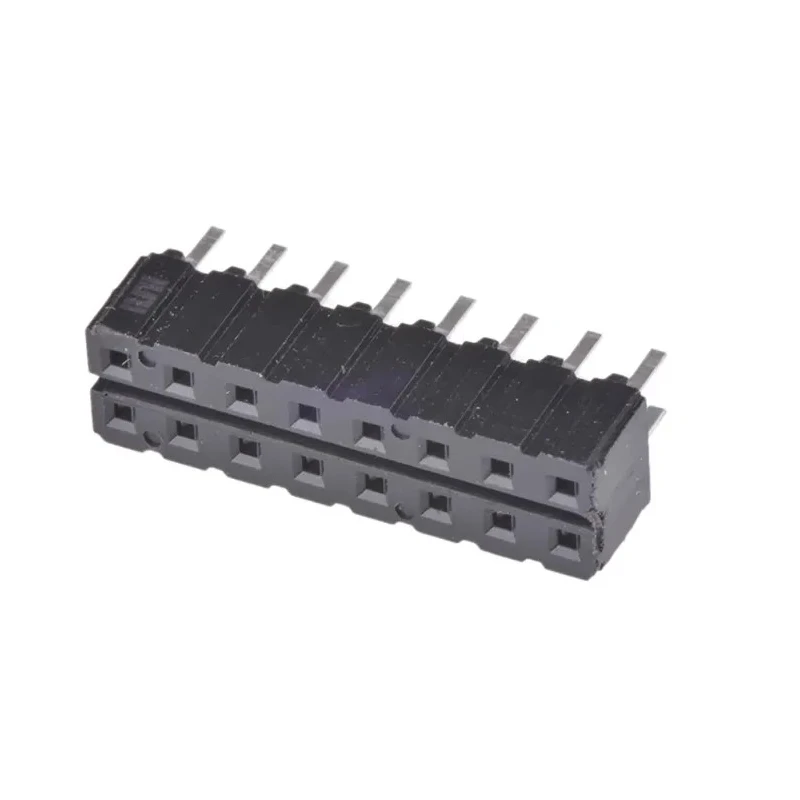

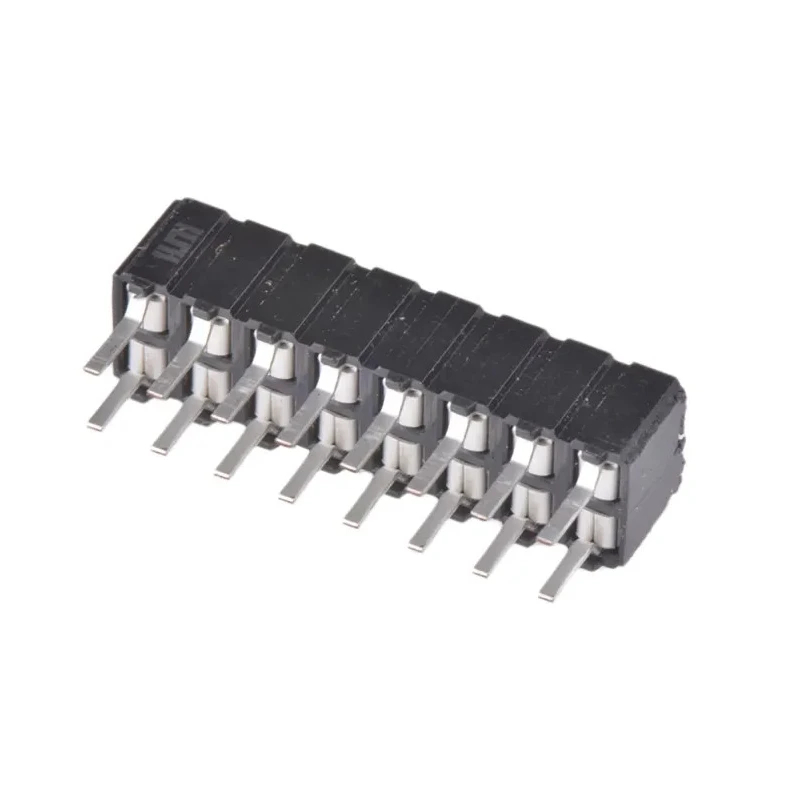

Samtec CES Series Straight Through Hole PCB Socket 16-Contact 2 Row 2.54 mm Pitch CES-108-01-T-D

Samtec CES-108-01-T-D is a high-quality PCB socket from the CES Series, characterized by a low profile, straight through hole design with 16 contacts arranged in 2 rows and a 2.54 mm pitch. This board-to-board socket is engineered to provide secure and reliable electrical connections in various electronic assemblies.

The socket housing is made from black glass filled polyester which offers excellent mechanical strength and thermal stability. The contacts are crafted from phosphor bronze material and coated with a matte tin plating that ensures consistent conductivity and protection against corrosion. With a current rating of 12 amperes and a voltage rating of 333 volts, this component is suitable for a wide range of power levels encountered in industrial and commercial electronics.

Its through hole termination and straight orientation facilitate easy mounting on printed circuit boards, enhancing production efficiency and assembly durability. The CES series sockets are rated for operation in a temperature range from -55°C to 105°C, supporting applications in challenging environmental conditions such as industrial controls, manufacturing equipment, and electronic instrumentation.

This PCB socket complies with RoHS directives, ensuring environmentally friendly manufacturing and materials. It is compatible with specific Samtec header types such as TLW low profile square post headers, TSM square post headers, and TSW square post headers, making it versatile for board-to-board connection needs.

This PCB socket features 16 contacts arranged in 2 rows with a 2.54 mm pitch for precise connectivity. It supports a current rating of 12A, suitable for medium power applications. The socket is manufactured using black glass filled polyester housing for durability and heat resistance.

Phosphor bronze contacts with matte tin plating ensure excellent electrical conductivity and corrosion resistance. Designed for through hole mounting with a straight orientation for easy PCB integration. Operating temperature range is wide, from -55°C up to 105°C, making it suitable for harsh environments.

The connector system is board-to-board type, compliant with RoHS standards for environmental safety.

Ideal for industrial, electronic manufacturing, laboratory equipment, and commercial electronic systems, this socket facilitates efficient and durable connections between printed circuit boards. Explore the full range of Samtec PCB Sockets and connectors on EnvMart for advanced connectivity solutions.
