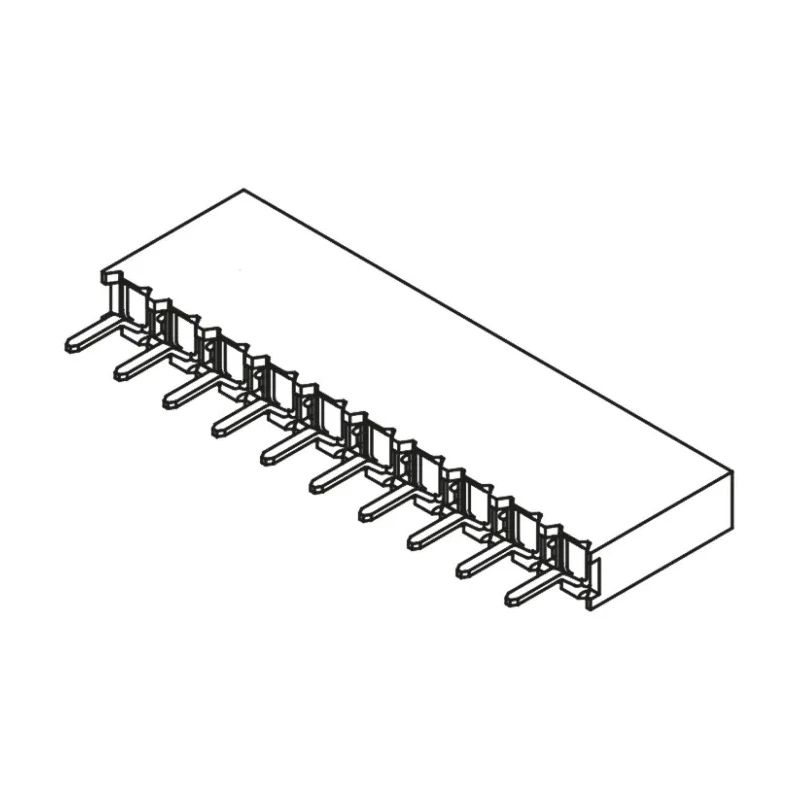

Samtec 10-Contact, 1 Row, 2.54 mm Pitch Straight Through Hole Board-to-Board PCB Socket BCS-110-L-S-TE
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 475V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 4.6A |
| Model | BCS-110-L-S-TE |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | BCS |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Standards/Approvals | CHINA RoHS, EU REACH, EU RoHS |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Connector System | Board-to-Board |
| Row Pitch | 0.1in |
Key Features
- The socket features a black liquid crystal polymer housing for durability.
- Contacts are made from phosphor bronze with 0.25μm gold plating for reliable conductivity.
- Operates safely within -55°C to 125°C temperature range.
- Supports a voltage rating of 475 V and current rating of 4.6 A.
- Designed for through hole mounting with solder termination type.
- This single row connector is straight in orientation with a 0.1 inch row pitch.
- Compatible with Samtec TSW, TSM, DW, and EW series mating connectors.
- Meets CHINA RoHS, EU REACH, and EU RoHS environmental standards.
Product Description
Samtec BCS-110-L-S-TE is a 10-contact, single row, straight through hole PCB socket primarily used for reliable board-to-board electrical connections. It features a standard 2.54 mm pitch, making it suitable for various industrial and electronic applications.
The housing is constructed from black liquid crystal polymer, offering excellent mechanical strength and thermal stability. The contacts are phosphor bronze plated with 0.25μm gold, ensuring optimal conductivity and corrosion resistance, critical for high-reliability environments.
Designed for through hole mounting and solder termination, this socket supports an operating voltage of up to 475 volts and a current of 4.6 amperes. It functions effectively in harsh temperature conditions from -55°C to +125°C, making it suitable for demanding industrial, manufacturing, and laboratory electronics.
The single row connector with 2.54 mm pitch and 0.1 inch row pitch provides straightforward board stack assembly and easy mating with compatible Samtec headers and flexible board stackers such as TSW, TSM, DW, and EW series.
The socket housing is made of durable liquid crystal polymer. Contacts offer gold plating over phosphor bronze for enhanced performance. Supports operating temperatures ranging from -55°C to 125°C. Solder termination type ensures secure connections through the PCB.
The connector system supports a voltage rating of 475 V and current of 4.6 A. Meets key environmental compliance standards including CHINA RoHS, EU REACH, and EU RoHS. Compatible with various Samtec mating connectors for flexible assembly options.
This product is ideal for use in electronics manufacturing, industrial equipment, power electronics, and laboratory instrumentation where reliable board-to-board connections are essential.
Explore more Samtec PCB Sockets and connectors on EnvMart for comprehensive solutions across electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a voltage rating of 475 V, making it suitable for various electrical applications.
The current rating for the BCS-110-L-S-TE is 4.6 A, which allows for reliable electrical connections in various applications.
It operates safely within a temperature range of -55°C to 125°C, making it suitable for harsh environments.
This socket is designed for through hole mounting with a solder termination type for secure connections.
The housing is made from black liquid crystal polymer, while the contacts are phosphor bronze with 0.25μm gold plating for conductivity.
This model features 10 contacts, allowing for multiple connections in board-to-board configurations.
The pitch size for the BCS-110-L-S-TE is 2.54 mm, which is standard for many electronic applications.
It is compatible with Samtec TSW, TSM, DW, and EW series mating connectors, providing flexibility in assembly.
The BCS-110-L-S-TE meets CHINA RoHS, EU REACH, and EU RoHS environmental standards, ensuring it adheres to regulatory requirements.
This model features a straight orientation, facilitating easy installation and connection.
The row pitch for this connector is 0.1 inches, which aligns with standard board designs.
This product is manufactured in India, ensuring quality in production.
