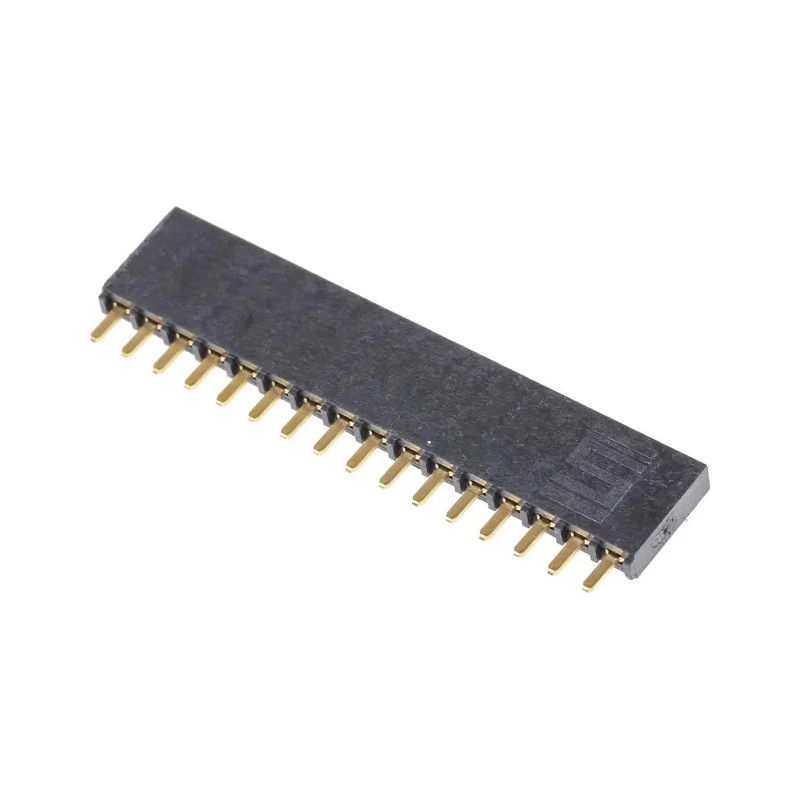

Samtec SSW Series Straight Through Hole PCB Socket, 16-Contact, 1 Row, 2.54 mm Pitch, 6.9A, 550V, Liquid SSW-116-01-G-S
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 6.9A |
| Model | SSW-116-01-G-S |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold Flash |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Constructed with liquid crystal polymer housing for high durability and wear resistance.
- Rated for 6.9A current and 550V AC voltage, suitable for medium-voltage applications.
- Gold flash plated bronze contacts ensure excellent conductivity and reliable signal transmission.
- Through-hole mounting provides vibration-proof and secure installation on PCBs.
- Operating temperature range from -55°C to 125°C supports harsh environment usage.
- Straight orientation ideal for direct board-to-board connector systems.
- Designed for industrial, electrical workshop, renewable energy, and lighting applications.
Product Description
Samtec SSW-116-01-G-S is a Straight Through Hole PCB Socket featuring 16 female contacts arranged in a single row with a 2.54 mm pitch, designed for reliable and efficient board-to-board connections. This component has a current rating of 6.9A and supports up to 550V AC, making it suitable for medium-voltage electronic applications.
The socket is crafted from durable liquid crystal polymer housing material that withstands wear and abrasion, ensuring long-term mechanical and electrical performance. The bronze contacts are plated with a gold flash finish for enhanced conductivity and corrosion resistance. Through-hole mounting guarantees a secure, vibration-resistant connection within electronic assemblies.
Operating temperatures ranging from -55°C to 125°C enable usage in challenging industrial and commercial environments such as electrical workshops, industrial lighting systems, and renewable energy sectors. The straight orientation of this connector corresponds to a board-to-board connector system that simplifies installation and maintenance.
Liquid crystal polymer housing provides excellent durability. 16 contacts support multiple concurrent connections. Gold flash plated bronze contacts ensure high conductivity. 550V AC voltage rating for medium-voltage applications.
Through-hole mount type ensures strong mechanical stability. Wide temperature range suitable for harsh conditions. Straight orientation for direct PCB connections.
This Samtec PCB Socket is an indispensable component in diverse electronic and industrial applications requiring high precision and robustness. Ideal for use in manufacturing, industrial automation, electrical repair, and renewable energy systems.
Explore more PCB connectors from Samtec on EnvMart to complement your electronic design and assembly requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 6.9A, making it suitable for medium-voltage applications.
The voltage rating for this socket is 550V AC, allowing it to be used in medium-voltage electronic applications.
The contacts in this unit are arranged with a pitch of 2.54 mm, which is standard for many PCB connections.
The housing is constructed from liquid crystal polymer, which provides high durability and wear resistance.
This model features 16 female contacts, arranged in a single row, for multiple concurrent connections.
The operating temperature range for this socket is from -55°C to 125°C, enabling its use in harsh environments.
It uses through-hole mounting, which ensures a secure and vibration-resistant connection on PCBs.
The termination type for this socket is solder, which is commonly used for reliable electrical connections.
The orientation of this model is straight, making it ideal for direct board-to-board connections.
The contacts are plated with gold flash, which enhances conductivity and provides corrosion resistance.
This product is manufactured in India, contributing to its availability in various markets.
It is suitable for applications in industrial automation, electrical workshops, renewable energy, and lighting systems.
