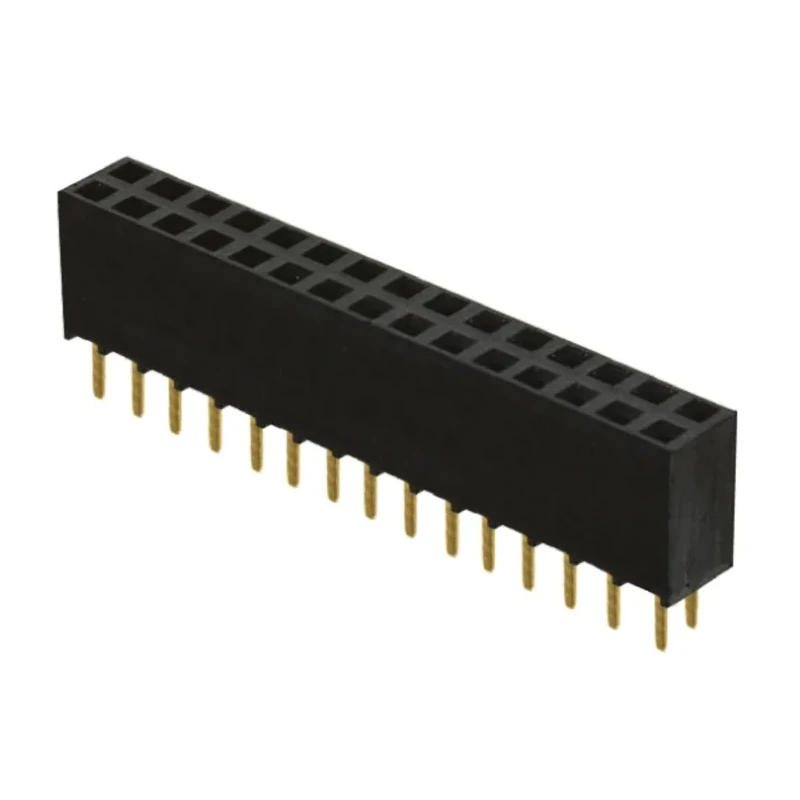

Samtec PCB Socket 30-Contact 2 Row 2.54 mm Pitch Through Hole Board-to-Board 6.9A 550V Solder Termination SSW-115-02-G-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 6.9A |
| Model | SSW-115-02-G-D |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 30 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 2.5mm |
Key Features
- The socket features a liquid crystal polymer housing for thermal stability and durability.
- Contacts are made of phosphor bronze with gold plating for excellent conductivity and corrosion resistance.
- It supports a current rating of 6.9A and a voltage rating of 550V suitable for demanding electronic applications.
- Designed for through hole mounting with a straight orientation for easy PCB integration.
- Operating temperature range spans from -55°C to 125°C, supporting harsh environments.
- The contact gender is female, compatible with corresponding headers for board-to-board connections.
- Row pitch is 2.5mm ensuring precise spacing between rows for compact PCB layouts.
- Commonly used in industrial, manufacturing, and electronic components assembly settings.
Product Description
Samtec SSW-115-02-G-D PCB Socket is a high-quality, 30-contact, 2-row, straight through hole board-to-board connector designed with a 2.54 mm pitch. It features a robust liquid crystal polymer housing that provides excellent mechanical strength and thermal resistance. The phosphor bronze contacts are plated with 0.51 μm gold on the contact area and gold flash on the solder tails, ensuring long-lasting conductivity and resistance to wear.
This PCB socket supports current up to 6.9A and voltage rating of 550V, suitable for various electronic and industrial applications such as manufacturing, electronic assembly, and board-to-board connectivity solutions. The product is designed for through hole mounting with solder tail terminations, allowing secure and reliable connections on printed circuit boards.
Its operating temperature range from -55°C to 125°C makes it suitable for use in demanding environments including industrial and commercial electronic systems. The female contact gender and 2.5 mm row pitch offer compatibility with corresponding headers, facilitating efficient interconnection between PCBs.
The SSW series sockets come in multiple configurations, but this specific model provides a compact yet reliable solder tail socket suitable for board-to-board connection tasks. It mates with TSW and TSM series headers, making it versatile for various PCB layouts and design requirements.
The socket housing is crafted from liquid crystal polymer for enhanced durability. Gold-plated phosphor bronze contacts ensure high electrical performance and corrosion resistance. Rated for 6.9A current and 550V voltage supports demanding electronic circuits.
Through hole solder termination provides a firm and lasting PCB connection. Broad operating temperature range supports applications in harsh environments. Compatible with mating headers from Samtec's TSW and TSM series. Useful in industrial, manufacturing, electronics assembly, and prototyping.
Explore the full range of PCB Sockets and connectors from Samtec at EnvMart to enhance your electronic designs and production efficiency.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket supports a current rating of 6.9A and a voltage rating of 550V, making it suitable for demanding electronic applications.
The operating temperature range for this model spans from -55°C to 125°C, allowing it to function in harsh environments.
It is designed for through hole mounting, which allows for secure and reliable connections on printed circuit boards.
This socket has a pitch of 2.54 mm and features 30 contacts, arranged in 2 rows.
The housing is made from liquid crystal polymer, while the contacts are made of phosphor bronze with gold plating for excellent conductivity and corrosion resistance.
The contact gender for this socket is female, making it compatible with corresponding male headers for board-to-board connections.
This model is compatible with Samtec's TSW and TSM series headers, facilitating efficient interconnection between PCBs.
It features solder termination, which provides a firm and lasting connection on printed circuit boards.
The orientation of this socket is straight, allowing for easy integration into PCB layouts.
This model belongs to the SSW series of PCB sockets, designed for board-to-board connectivity solutions.
The country of origin for this PCB socket is India.
This socket is commonly used in industrial, manufacturing, and electronic components assembly settings.
