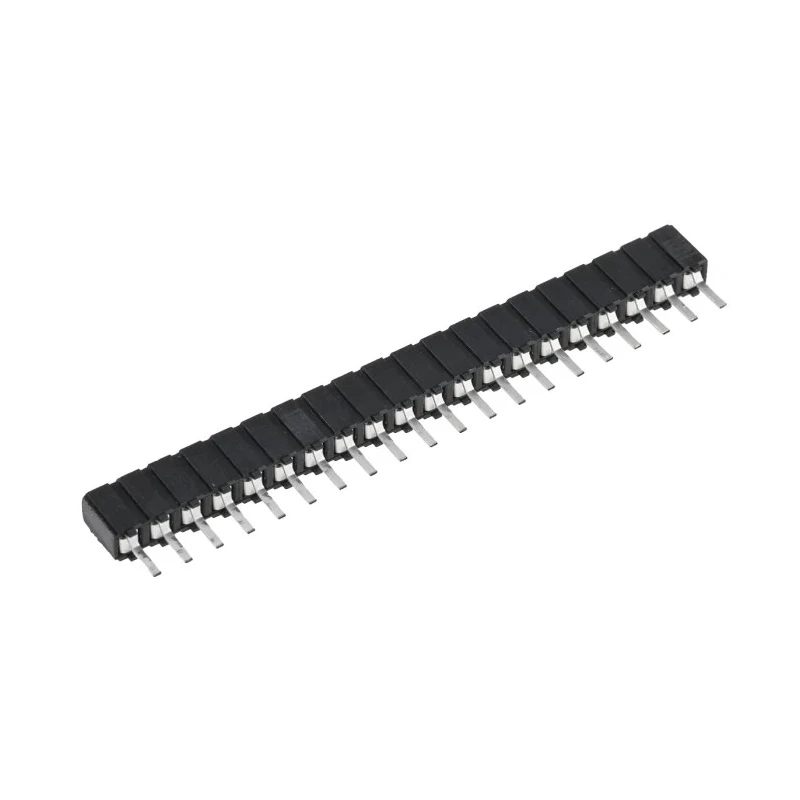

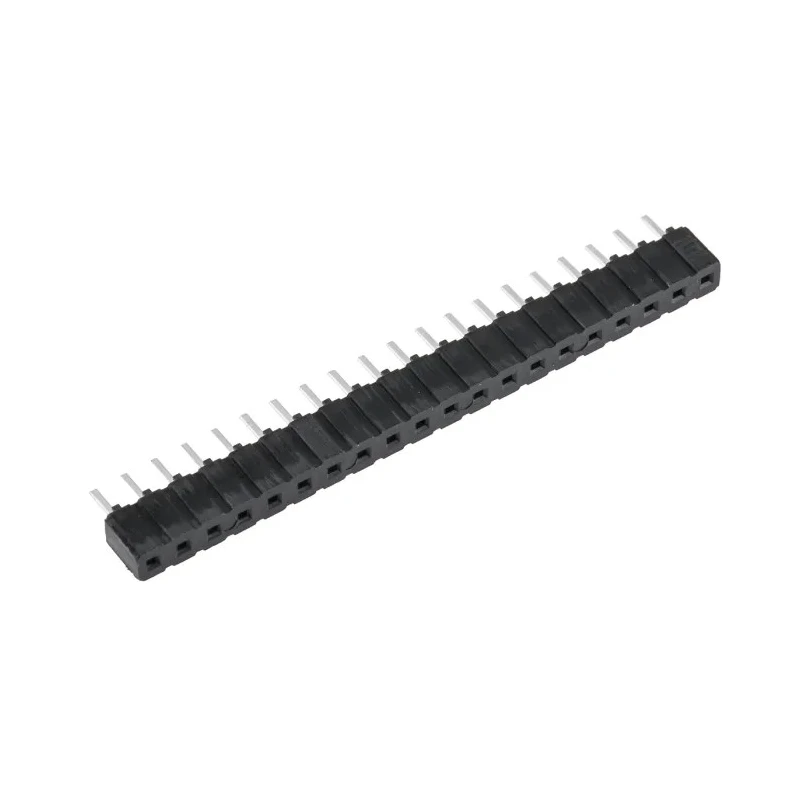

Samtec CES Series Straight Through Hole PCB Socket, 20-Contact, 1 Row, 2.54 mm Pitch, 12A, 333V CES-120-01-T-S

The Samtec CES-120-01-T-S is a precision-engineered PCB socket designed for effective board-to-board connections in demanding industrial environments. Featuring 20 contacts arranged in a single row with a standardized 2.54 mm pitch, this socket ensures safe spacing to prevent short circuits and supports a maximum current of 12A and voltage rating of 333V AC.

Its black glass-filled polyester housing provides excellent electrical insulation and mechanical durability, making it suitable for use in harsh conditions such as HVAC systems, process and packaging machinery, and oil and gas plants. The socket’s through-hole mounting method guarantees a firm and vibration-resistant attachment to circuit boards.

Constructed with bronze contacts plated in matt tin, the unit provides low resistance (around 10 mΩ), promoting seamless signal transmission and prolonged reliability. The socket functions effectively across a wide temperature range, from -55°C to 105°C, supporting both low-temperature and high-temperature applications.

Moreover, the CES series socket is compliant with RoHS directives, reflecting a commitment to environmental safety. Its flame-retardant housing stops burning within 10 seconds, minimizing the risk of fire propagation in electronic assemblies.

Compact in size with precise dimensions of 5.08 mm length by 50.8 mm width and 3.05 mm depth, this socket optimizes PCB layout space. The straight orientation and through-hole construction simplify installation while maintaining strong mechanical and electrical integrity.

The socket holds 20 contacts in a single row with 2.54 mm pitch. Rated for 12A current and 333V voltage to suit light to medium power applications. Black glass-filled polyester housing offers impact resistance and electrical insulation.

Through-hole mount with straight orientation for secure connection. Bronze contacts with matt tin plating provide durability and low resistance. Operational temperature range from -55°C to 105°C enables versatile use. Flame-resistant housing helps mitigate fire risks within electronic devices.

RoHS compliant, ensuring environmental safety standards. Ideal for HVAC, packaging, oil, and gas industry circuitry. Explore the full range of Samtec PCB Sockets on EnvMart for reliable connector solutions catering to industrial, manufacturing, and electronic applications.
