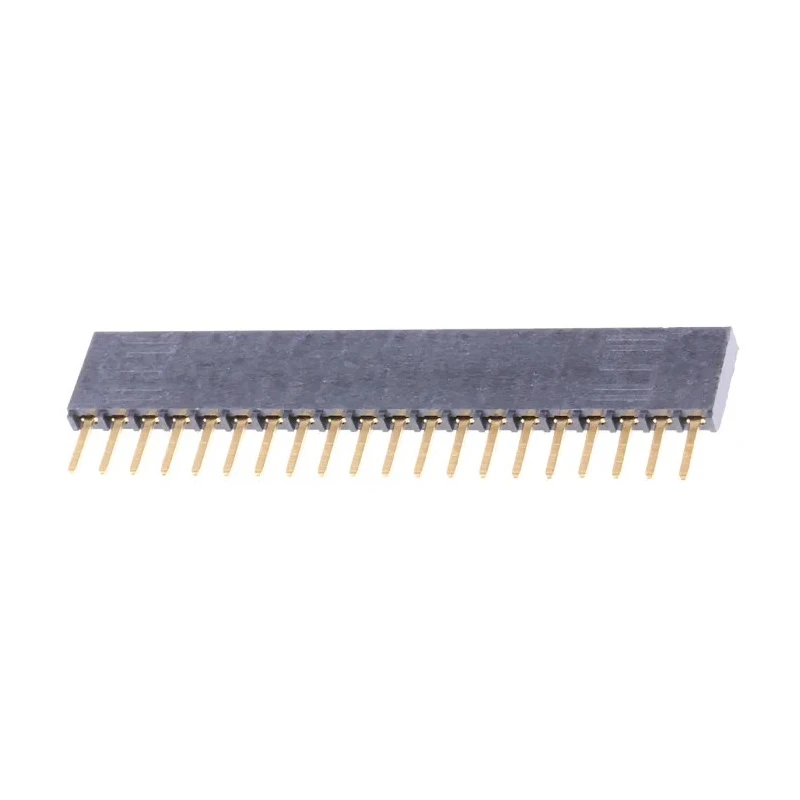

Samtec SSW Series Straight Through Hole PCB Socket 20-Contact 1 Row 2.54 mm Pitch Solder SSW-120-02-G-S

Samtec SSW-120-02-G-S is a high-quality straight through hole PCB socket designed for board-to-board connections with 20 contacts arranged in a single row and a 2.54 mm pitch. The socket features a black liquid crystal polymer housing that provides excellent mechanical strength and thermal stability, operating from -55°C to 125°C.

The contacts are made from phosphor bronze, plated with 0.51μm gold on the contact surface for superior conductivity and corrosion resistance, and gold flash on the tail, ensuring long-term reliability. It is rated for a current of 6.9A and voltage up to 550V, making it suitable for a wide range of electronic and industrial equipment.

Termination is by solder, and the socket is designed for through hole mounting with a straight orientation for easy insertion and soldering on PCB assemblies. This SSW series socket is compatible with TSW and TSM series headers, allowing flexible mating options in circuit design.

Applications include industrial electronics, power connectors, telecommunications, and electronic manufacturing where robust and precise board-to-board interconnection is required. The socket’s operating temperature range and durable materials enable use in demanding environments such as industrial and commercial electronic devices.

High durability liquid crystal polymer housing. Gold-plated phosphor bronze contacts for corrosion resistance. Current rating of 6.9A and voltage rating of 550V. Operating temperature from -55°C to 125°C. Through hole mount with straight orientation.

Compatible with TSW and TSM header series. Female contact gender with solder termination. Suitable for industrial and electronic applications.

EnvMart offers this Samtec SSW series PCB Socket as part of its comprehensive range of power connectors, ensuring high-quality interconnection solutions for your industrial and electronic needs.
