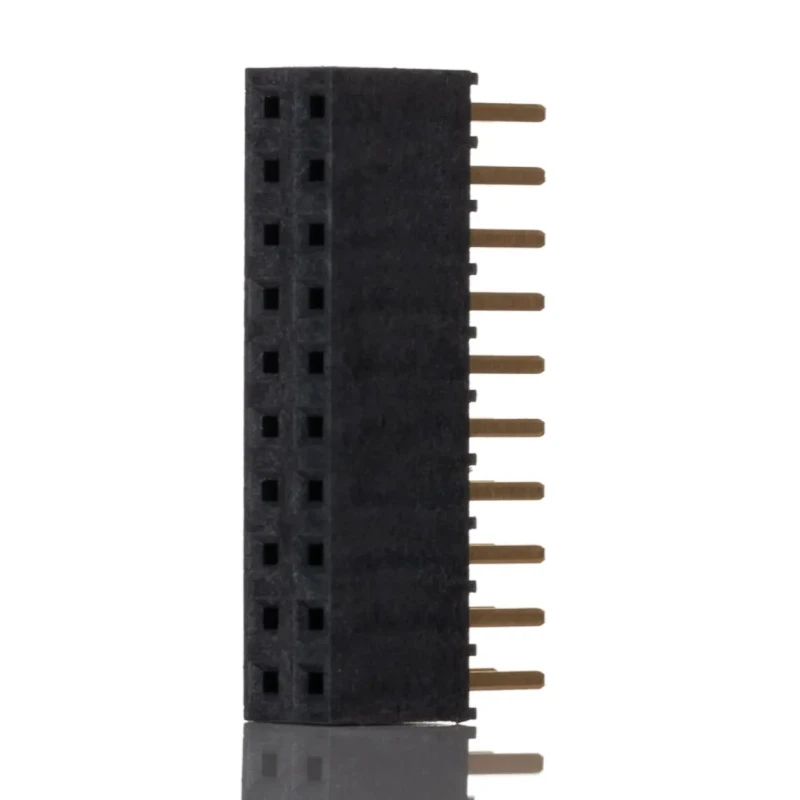

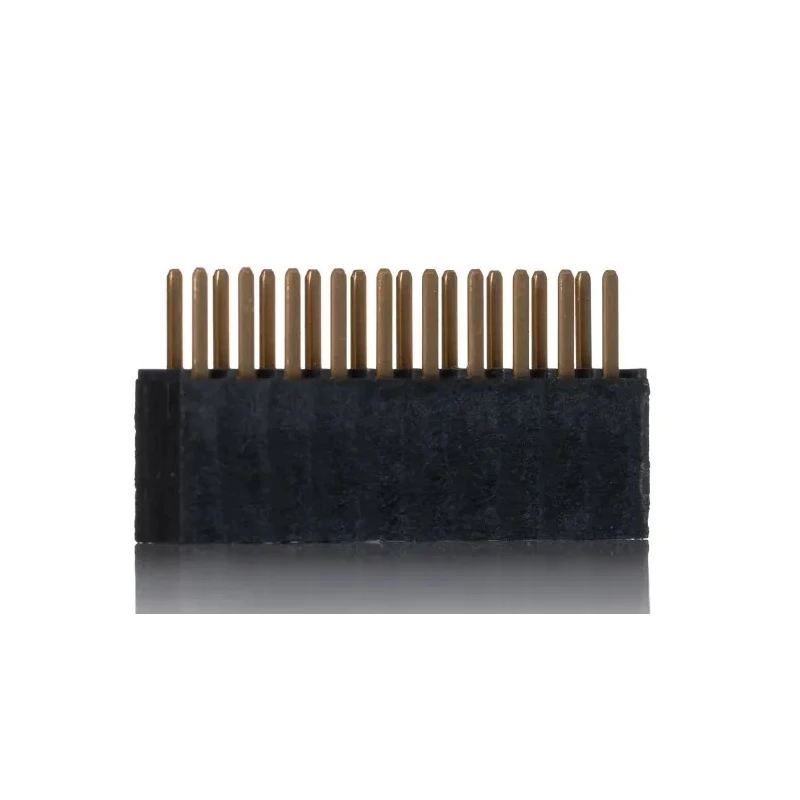

Samtec SSW Series Straight Through Hole PCB Socket 20-Contact 2 Row 2.54 mm Pitch 550V Solder Termination SSW-110-02-G-D

Samtec SSW-110-02-G-D is a high-quality PCB socket featuring 20 contacts distributed across 2 rows designed for board-to-board connections with a 2.54 mm pitch and a voltage rating of 550V. It is ideal for industrial, electronics manufacturing, telecommunications, and transportation applications where reliable signal transmission and secure connections are critical.

This socket features phosphor bronze contacts with gold flash plating to ensure low contact resistance of approximately 10 milliohms and reliable electrical conductivity. The housing is constructed from liquid crystal polymer, providing excellent insulation properties and robust impact resistance, making it suitable for harsh operating conditions.

With a current rating of 6.9 amperes and an operating temperature range from -55°C to +125°C, the SSW-110-02-G-D supports both medium-voltage and temperature-demanding applications such as research laboratories, security and surveillance systems, and transportation electronics.

The socket's solder termination type guarantees a strong mechanical and electrical link to the PCB, which is especially beneficial in environments with vibration and movement. Its straight body orientation allows for efficient use of PCB space, while a row pitch of 2.5 mm ensures compatibility with standard connector spacing requirements.

The phosphor bronze contacts offer high conductivity and reliable electrical connections. Its construction with liquid crystal polymer housing provides insulation and durability. Capable of handling up to 100 mating cycles for extended use.

Voltage rating of 550V enables medium-voltage circuit applications. Solder termination ensures secure PCB mounting with vibration resistance. Operating temperature ranges from -55°C to 125°C for wide environmental tolerance.

Designed for board-to-board connector systems with female contacts. Gold flash contact plating resists corrosion and ensures long service life.

Samtec’s SSW series wafers and sockets are trusted in numerous industrial and commercial domains for reliable electronic connectivity. Browse EnvMart for more specialized PCB Sockets and connectors from Samtec to support your electrical and electronic assembly needs.
