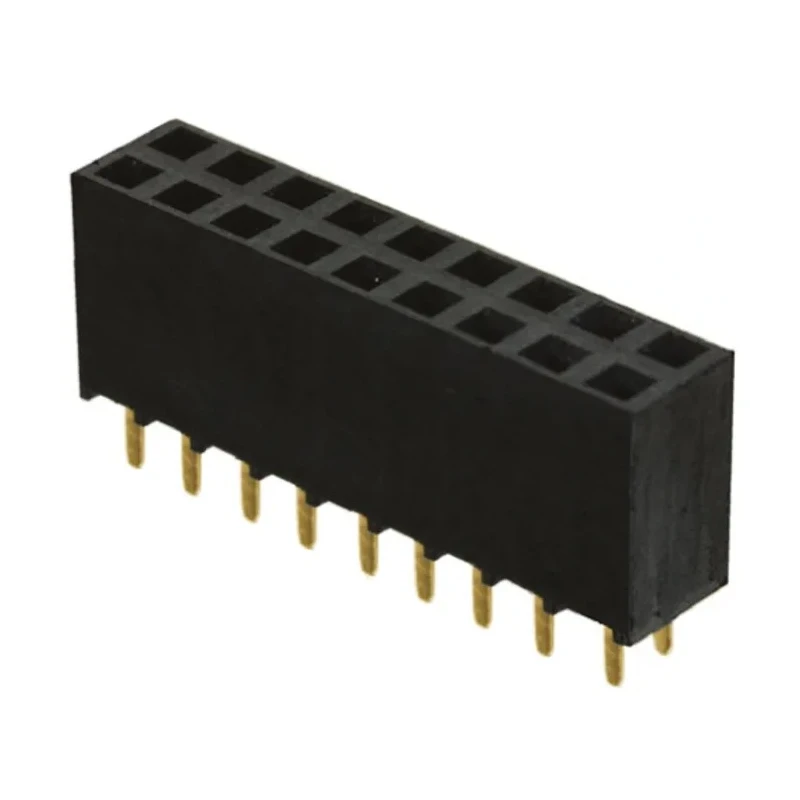

Samtec PCB Socket, 18-Contact, 2 Row, 2.54 mm Pitch, 4.7A, Through Hole, Straight Orientation SSW-109-01-G-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 465, 655V ac |
| Brand | Samtec |
| Orientation | Straight |
| Current | 4.7A |
| Model | SSW-109-01-G-D |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 18 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 2.5mm |
Key Features
- This PCB socket has a straight body orientation for easy board stacking.
- It supports a maximum current rating of 4.7A per contact ensuring reliable electrical flow.
- The housing is made from liquid crystal polymer for durability and insulation.
- Contacts are made of bronze with gold plating for corrosion resistance and optimal conductivity.
- It operates reliably between -55°C and 125°C, suitable for extreme environments.
- Termination is by solder, providing secure board connections.
- The socket supports up to 8 Gbps data transfer speeds for high-speed signals.
- Designed for board-to-board connector systems with a 2.5 mm row pitch.
Product Description
Samtec SSW-109-01-G-D PCB Socket is a straight through hole connector designed for reliable board-to-board connections. Featuring 18 contacts in 2 rows with a 2.54 mm pitch, it supports up to 4.7A current per contact. Its female bronze contacts come gold plated for enhanced conductivity and corrosion resistance, housed in a durable liquid crystal polymer body.
With a wide operating temperature range from -55°C to 125°C, this connector withstands harsh industrial and commercial environments. The solder termination type ensures secure and durable soldered connections to PCB assemblies.
This socket supports high-speed data transfer rates up to 8 Gbps, making it suitable for applications in IT hubs, security centers, medical and pharmaceutical production, as well as automotive manufacturing lines.
The straight orientation design facilitates uncomplicated stacking of boards in compact assemblies. Its low insertion force contacts (average 0.83N) provide quick and reliable mating with compatible headers, ensuring high retention hold during operation.
This PCB socket has a straight body orientation for easy board stacking. It supports a maximum current rating of 4.7A per contact ensuring reliable electrical flow. The housing is made from liquid crystal polymer for durability and insulation.
Contacts are made of bronze with gold plating for corrosion resistance and optimal conductivity. It operates reliably between -55°C and 125°C, suitable for extreme environments. Termination is by solder, providing secure board connections.
The socket supports up to 8 Gbps data transfer speeds for high-speed signals. Designed for board-to-board connector systems with a 2.5 mm row pitch. Ideal for industrial, IT, automotive, and medical electronics assembly lines.
Samtec PCB Sockets offer versatile solutions for new designs and retrofit applications, enhancing production efficiency and durability in demanding environments. Suitable for construction, manufacturing, electronics assembly, and water treatment applications.
Explore more PCB connectors and sockets on EnvMart to find compatible accessories and advanced connector solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this PCB socket is 4.7A per contact, ensuring reliable electrical flow.
It operates reliably between -55°C and 125°C, making it suitable for extreme environments.
The housing is made from liquid crystal polymer, while the contacts are made of bronze with gold plating for enhanced conductivity and corrosion resistance.
This model uses solder termination, providing secure connections to PCB assemblies.
This connector features a 2.54 mm pitch and has 18 contacts arranged in 2 rows.
It supports data transfer speeds of up to 8 Gbps, suitable for high-speed signals.
The socket has a straight body orientation, facilitating uncomplicated stacking of boards in compact assemblies.
The voltage rating for this PCB socket is 465 to 655V AC.
This model is designed for board-to-board connector systems, making it versatile for various applications.
The contact gender of this socket is female, allowing it to connect with compatible male headers.
The country of origin for this PCB socket is India.
