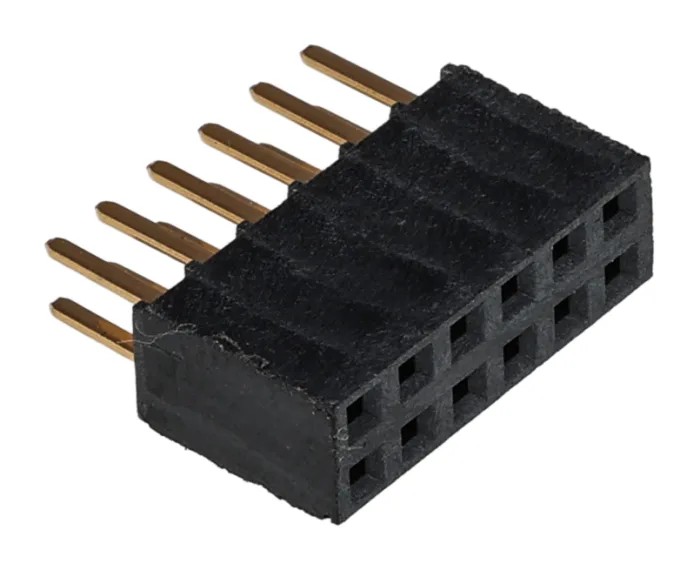

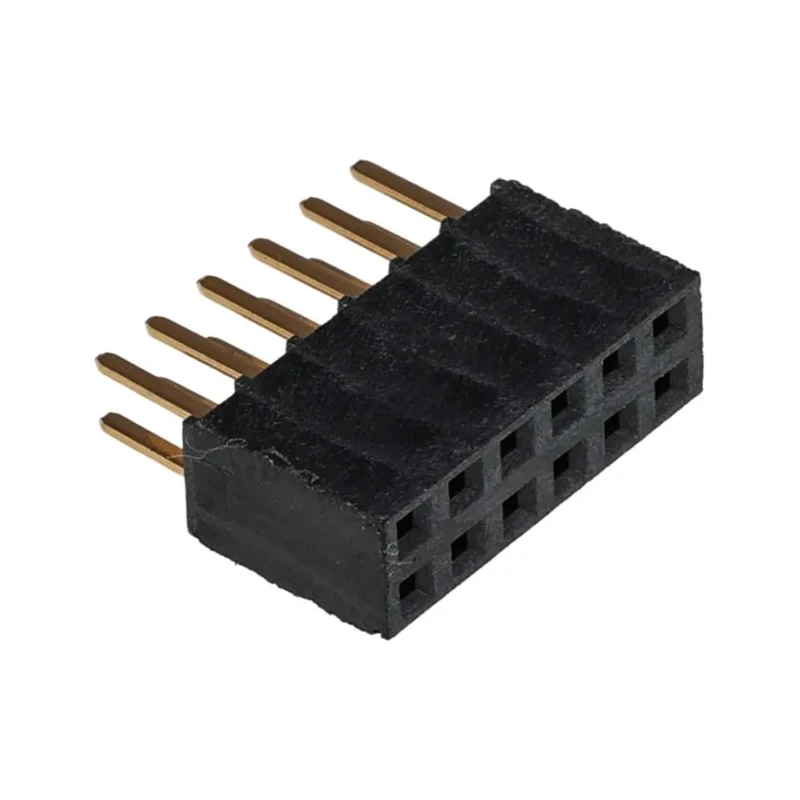

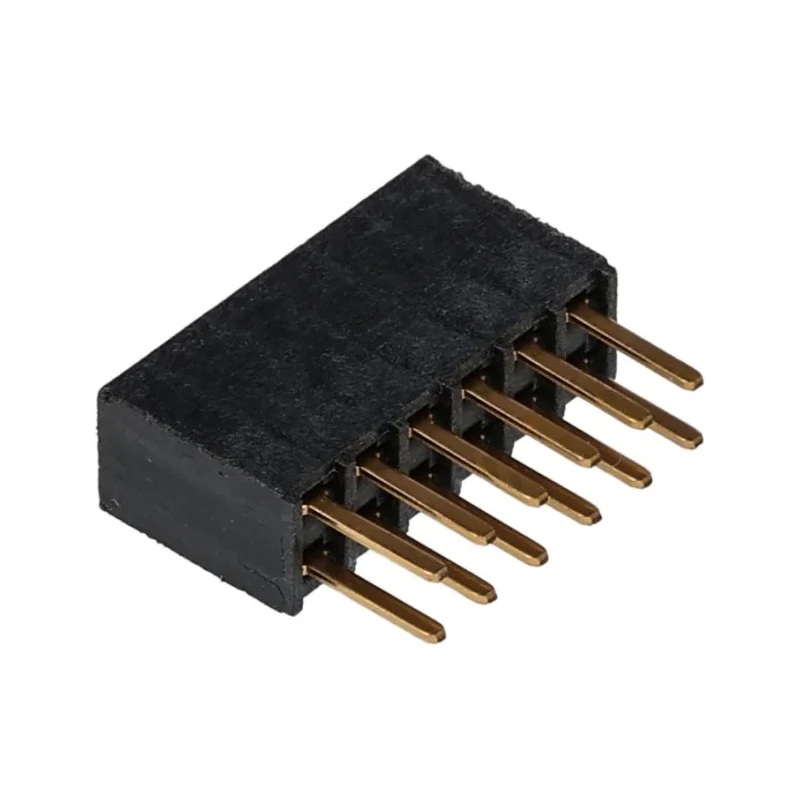

Samtec SSW Series Straight Through Hole PCB Socket 12-Contact 2 Row 2.54 mm Pitch 6.9A 550V Solder Termination SSW-106-02-G-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 6.9A |
| Model | SSW-106-02-G-D |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Tin |
| Number of Contacts | 12 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 2.5mm |
Key Features
- Features straight body orientation for seamless integration into circuit boards.
- Bronze contact material ensures efficient conductivity and long-lasting performance.
- Through hole mount type provides secure and stable connection.
- Solder termination simplifies assembly and maintains durability.
- Compatible with voltage ratings up to 550V for versatile industrial use.
- Supports current of 6.9A suitable for demanding electrical applications.
- Constructed from liquid crystal polymer housing material for high temperature resistance.
- Operates reliably between -55°C and 125°C ensuring durability in diverse environments.
Product Description
Samtec SSW-106-02-G-D is a precision-engineered PCB socket designed to facilitate robust and reliable board-to-board connections in various industrial and electronic applications. This through hole mounting 12-contact, 2-row socket features a 2.54 mm pitch and straight body orientation, providing a secure fit and consistent connectivity on printed circuit boards.
The socket housing is manufactured using liquid crystal polymer, offering excellent mechanical strength and thermal stability across operating temperatures ranging from -55°C to 125°C. Bronze contacts within the socket provide superior electrical conductivity, complemented by gold over tin plating that enhances corrosion resistance and ensures long-term reliability.
With a voltage rating of 550V and a current capability of 6.9A, the SSW-106-02-G-D model is ideal for use in electrical control panels, automation systems, power supply units, and test equipment applications. Its solder termination simplifies the assembly process, making it suitable for manufacturing environments demanding efficiency and dependable performance.
This connector is tailored for industrial, manufacturing, electronics, automation, and electrical industries requiring robust connections that withstand demanding environmental and electrical conditions. The through hole mount type enhances mechanical stability, ensuring secure installations and consistent operation.
Features straight body orientation for easy PCB integration. Bronze contacts for efficient electrical conductivity and durability. 12 contacts arranged in 2 rows to enhance connectivity options. Through hole mounting facilitates reliable, long-lasting PCB connections.
Solder termination method supports efficient assembly workflows. Liquid crystal polymer housing offers high temperature resistance and strength. Contact plating with gold over tin increases corrosion resistance. Voltage rating of 550V and 6.9A current capacity support diverse electrical needs.
Suitable for use in automation, manufacturing, and power electronics applications. Explore more PCB Sockets and connectors at EnvMart to support your industrial and electronic projects with trusted components delivering reliable performance and quality.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this socket is 550V, making it suitable for various industrial applications.
This model supports a current capacity of 6.9A, which is appropriate for demanding electrical applications.
It utilizes a through hole mounting type, providing a secure and stable connection on printed circuit boards.
The pitch of the contacts is 2.54 mm, allowing for efficient spacing and connection.
The socket is constructed from liquid crystal polymer for the housing and bronze for the contacts, which enhances conductivity and thermal stability.
The operating temperature range is from -55°C to 125°C, ensuring reliable performance in diverse environments.
This socket features 12 contacts arranged in 2 rows, enhancing connectivity options.
It uses a solder termination type, which simplifies the assembly process and maintains durability.
The contacts are plated with gold over tin, which increases corrosion resistance and enhances reliability.
It is suitable for use in electrical control panels, automation systems, power supply units, and test equipment applications.
The socket features a straight body orientation, facilitating seamless integration into circuit boards.
The socket is manufactured in India, ensuring compliance with specific regional standards.
