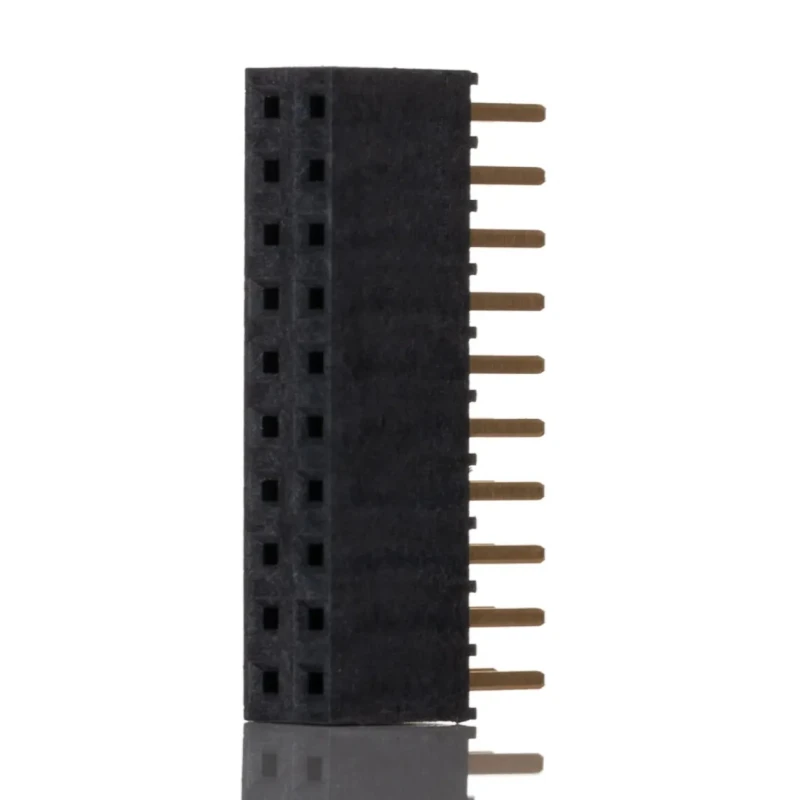

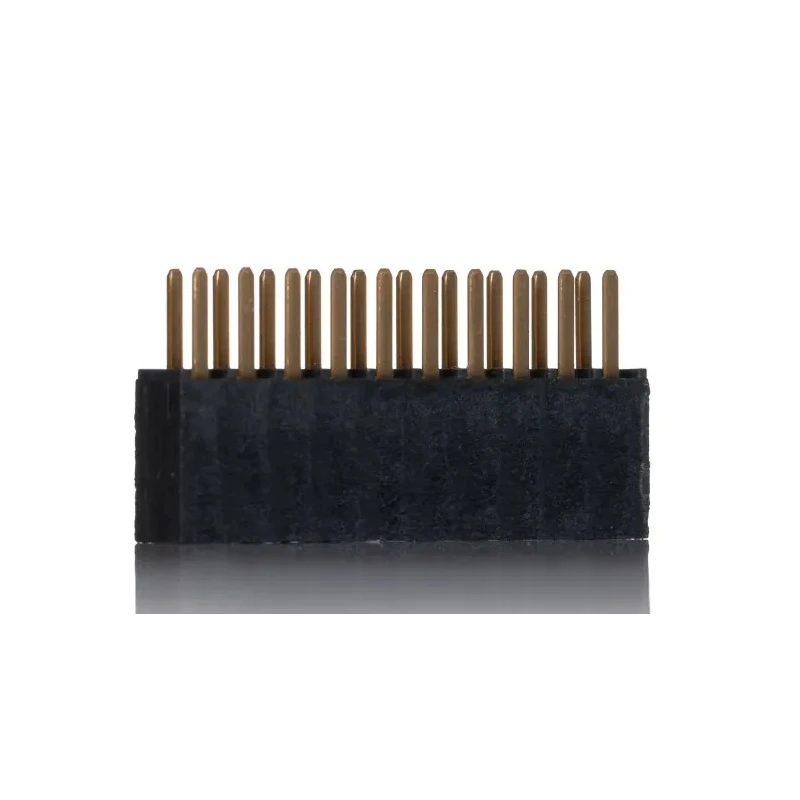

Samtec SSW Series Straight Through Hole PCB Socket, 20-Contact, 2 Row, 2.54 mm Pitch, 6.9A, 550V Solder SSW-110-02-G-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 6.9A |
| Model | SSW-110-02-G-D |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold Flash |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 2.5mm |
Key Features
- Constructed with liquid crystal polymer housing for insulation and impact protection.
- Rated for 6.9 A current and 550 V voltage, suitable for medium-voltage applications.
- Supports a wide operating temperature from -55°C to 125°C for harsh environments.
- Phosphor bronze contacts with gold flash plating provide reliable electrical conductivity.
- Straight orientation enables space-efficient mounting on PCB assemblies.
- Designed to withstand up to 100 mating cycles for durability and long-term operation.
- Compatible with board-to-board connector systems requiring 2-row configuration.
- Applications include security, surveillance, research laboratories, and transportation industries.
Product Description
Samtec SSW-110-02-G-D is a high-quality PCB socket designed for straight through-hole mounting on circuit boards, featuring 20 female contacts arranged in 2 rows with a 2.54 mm pitch. This board-to-board connector utilizes a liquid crystal polymer housing, which offers excellent electrical insulation and mechanical impact resistance, making it suitable for rigorous industrial environments.
The solder termination type ensures a secure and reliable connection to the Printed Circuit Board, beneficial in applications exposed to vibration. The contact material is phosphor bronze plated with a gold flash finish to maintain low contact resistance, rated around 10 milliohms, contributing to consistent signal transmission.
Its electrical ratings include a 6.9 A current capacity and a voltage rating of 550 V, making it ideal for medium-voltage electronic circuits. The socket is designed for long service life with a durability of up to 100 mating cycles. Its straight body orientation allows for efficient use of PCB area.
The operating temperature range from -55°C up to 125°C ensures dependable performance in extreme temperature conditions. This connector is widely used in sectors such as security systems, surveillance installations, research labs, and transportation electronics, where secure and durable board-to-board connections are essential.
Liquid crystal polymer housing provides excellent insulation and impact resistance. 20 female phosphor bronze contacts with gold flash plating minimize electrical resistance. Solder termination type ensures reliable mounting on PCB.
Supports up to 6.9 A current and 550 V voltage rating for medium-voltage applications. Operates effectively between -55°C and 125°C temperature range. Designed for 100 mating cycles ensuring longevity. Straight orientation allows compact PCB layout.
Ideal for industrial, security, laboratory, and transportation applications. Discover more high-performance PCB connectors in EnvMart's Electronics & Electricals category, specially curated to meet advanced industrial and laboratory requirements.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 6.9 A and a voltage rating of 550 V, making it suitable for medium-voltage applications.
It features a 2.54 mm pitch and has 20 female contacts arranged in 2 rows.
The housing is constructed from liquid crystal polymer, which provides excellent insulation and impact resistance.
This socket is designed to withstand up to 100 mating cycles, ensuring longevity in use.
It operates effectively within a temperature range of -55°C to 125°C, suitable for harsh environments.
The SSW-110-02-G-D uses a solder termination type for secure mounting on printed circuit boards.
The contacts are made of phosphor bronze and are plated with gold flash to minimize electrical resistance.
It has a straight orientation, allowing for efficient use of PCB area during assembly.
This connector is commonly used in security systems, surveillance installations, research laboratories, and transportation electronics.
The mounting type for this model is through hole, which is standard for many PCB applications.
The contacts in this model are female, designed for board-to-board connections.
The country of origin for this PCB socket is India.
