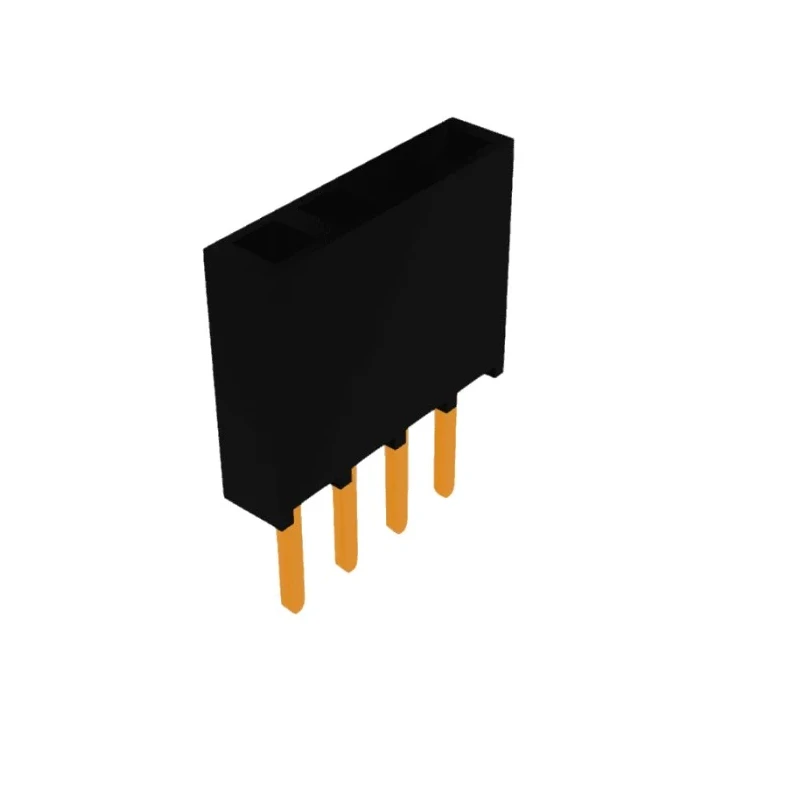

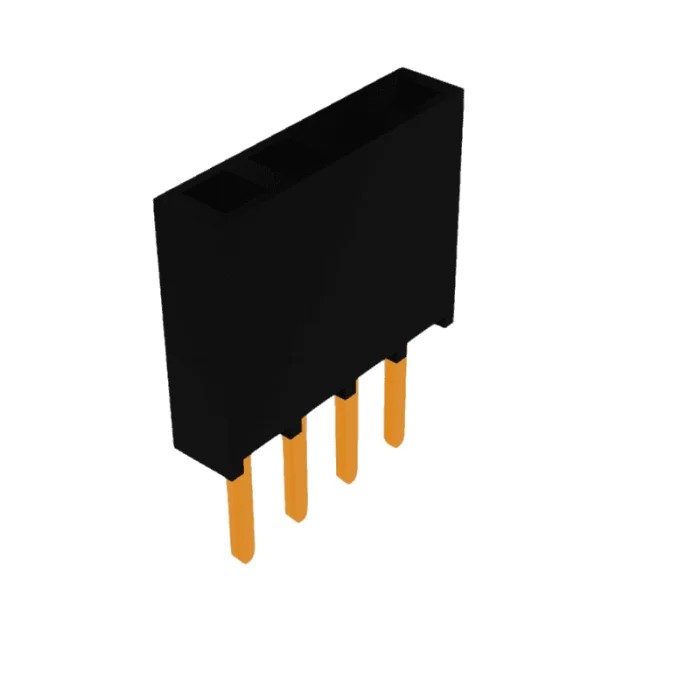

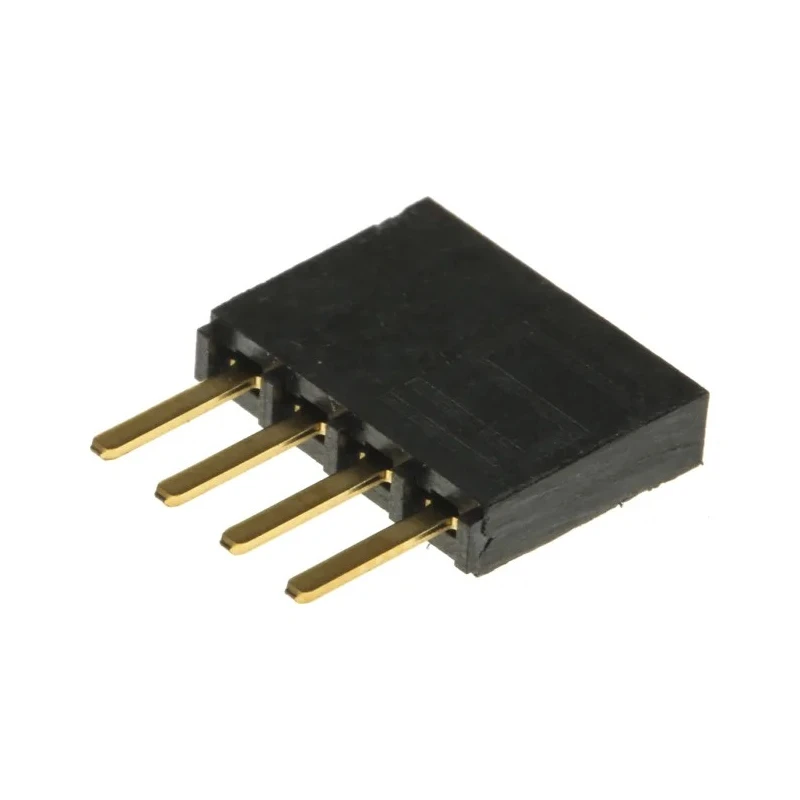

Samtec SSW Series Straight Through Hole PCB Socket 4-Contact 1 Row 2.54 mm Pitch 550V 6.9A Solder Termination SSW-104-02-G-S
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 6.9A |
| Model | SSW-104-02-G-S |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Tin |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Liquid crystal polymer housing ensures excellent electrical insulation and durability.
- Phosphor bronze contacts with gold over tin plating for reliable conductivity and corrosion resistance.
- Rated for 6.9A current and 550V voltage suitable for low-power electronic assemblies.
- Operates within a wide temperature range from -55°C to 125°C for industrial reliability.
- Straight orientation with solder termination offers secure through-hole PCB mounting.
- Supports up to 100 operating cycles, providing long-lasting performance.
- Low insertion force of 0.83N facilitates easy installation.
- Ideal for use in assembly lines, consumer electronics, and switchgear systems.
Product Description
Samtec SSW-104-02-G-S is a high-quality straight through hole PCB socket with 4 contacts arranged in a single row spaced at a 2.54 mm pitch. The device utilizes a durable liquid crystal polymer housing that provides excellent insulation and protection against electrical shocks.
The phosphor bronze contacts are plated with gold over tin, enhancing corrosion resistance and ensuring reliable signal integrity over time. It supports a nominal current of 6.9A and voltage up to 550V, making it suitable for low-power electronic assemblies and interconnections.
With an operating temperature range from -55°C to 125°C, the socket performs reliably in diverse and challenging environmental conditions, including industrial settings.
The socket’s solder termination and through-hole mount enhance mechanical stability on the PCB, supporting strong connection integrity even in vibration-prone applications. Its low insertion force of 0.83N aids in easy assembly and minimal wear on contacts during installation.
The housing material is liquid crystal polymer for superior insulation and durability. Contact material is phosphor bronze with gold over tin plating for enhanced conductivity and corrosion resistance. Rated current is 6.9A and voltage rating is 550V.
Operating temperature ranges from -55°C minimum to 125°C maximum. Designed for board-to-board connector systems using a 2.54 mm pitch and 1 row configuration. Suitable for use in assembly lines, consumer electronics, and switchgear systems.
The socket withstands up to 100 operating cycles, reflecting its longevity in applications.
Samtec’s SSW-104-02-G-S PCB Socket offers a reliable interconnect solution for electronic manufacturing requiring durable and precise board-to-board connections. It combines functional performance with safety and ease of installation suited to industrial, commercial, and laboratory electronic equipment assemblies.
Explore the Electronics & Electricals category at EnvMart to find high-quality PCB connectors, sockets, and related components from trusted brands like Samtec.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this PCB socket is 550V, making it suitable for low-power electronic assemblies.
It is rated for a current of 6.9A, which allows it to handle low-power applications effectively.
The contacts are arranged with a pitch size of 2.54 mm, suitable for standard board-to-board connections.
The housing is made from liquid crystal polymer, while the contacts are made of phosphor bronze with gold over tin plating for enhanced conductivity and corrosion resistance.
This model operates within a temperature range of -55°C to 125°C, making it suitable for various industrial environments.
It features 4 contacts arranged in a single row, designed for effective board-to-board connectivity.
The socket uses solder termination, which provides a secure connection when mounted on a PCB.
It is designed to withstand up to 100 operating cycles, ensuring longevity in applications.
This socket has a straight orientation, which facilitates easy installation on PCBs.
The contacts are female, designed for connection with male counterparts in board-to-board systems.
This PCB socket is manufactured in India, reflecting its origin.
It is suitable for use in assembly lines, consumer electronics, and switchgear systems, providing reliable interconnections.
