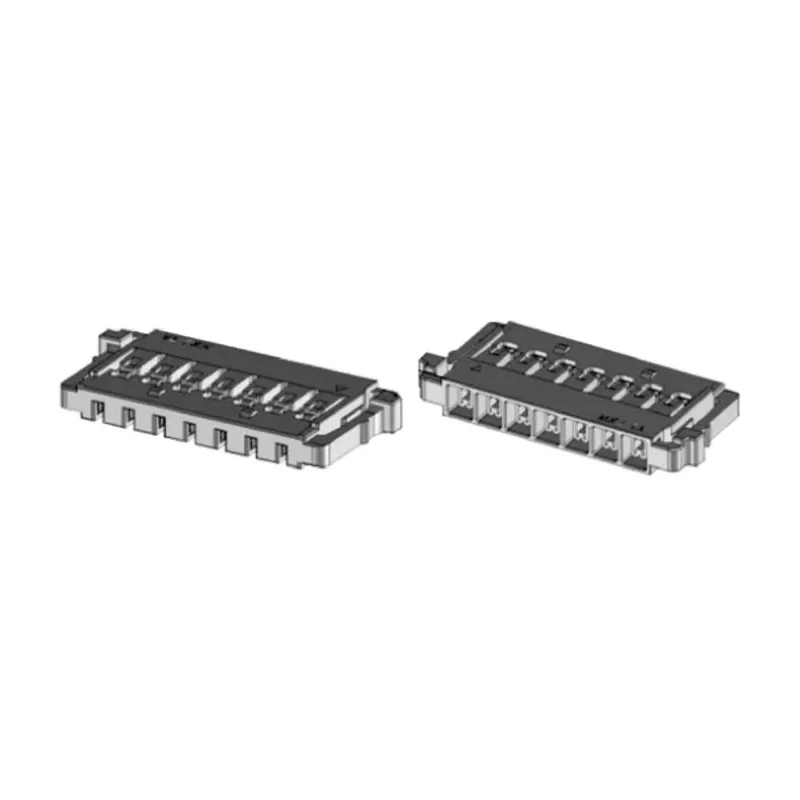

Molex Pico-Lock Female Connector Housing 1.5 mm Pitch 7 Way 1 Row Straight 504051-0701

Molex 504051-0701 Pico-Lock Female Connector Housing is a precision-engineered connector housing featuring a 1.5 mm pitch, 7 contact positions arranged in a single row, and a straight cable mounting orientation. The thermoplastic housing material complies with UL94V-0 flame-retardant standards, ensuring safety and reliability in demanding environments.

This connector housing integrates polarization ribs and slots that prevent mismating, while its unique side positive lock design ensures an ultra-low profile assembly with a mated height of 2 mm. Additional mechanical robustness is provided by wide solder tabs that overlap the housing and top friction locks, securing connections effectively during production and operation.

Ideal for use with SMT Wire-to-Board Headers, this housing supports high current capacity in a very compact form factor measuring 14.45 mm in length and 1.92 mm in width. Its low profile and secure locking features make it suitable for applications requiring high-density PCB assembly and reliable electrical connectivity. The materials are RoHS and Low-Halogen compliant, facilitating environmentally responsible manufacturing.

Typical applications include industrial electronic assemblies, power distribution connectors, telecommunications equipment, and any use case demanding robust and compact female connector housings. This product is manufactured in Malaysia under strict quality controls, fulfilling the needs of various high-technology markets.

Constructed from UL94V-0 rated thermoplastic housing material ensuring flame resistance and durability. Fool-proof mating is achieved through polarization ribs and slots to prevent incorrect assembly. Provides a compact 1.5 mm pitch with 7 contacts in one row for efficient PCB space utilization.

Designed with top friction locks and wide solder tabs for mechanical stability and reliable connection. Compatible with Molex Pico-Lock 504052 Series Crimp Terminals and 504050 Series SMT Right Angle Headers. RoHS and Low-Halogen compliant materials support environmental and safety standards.
