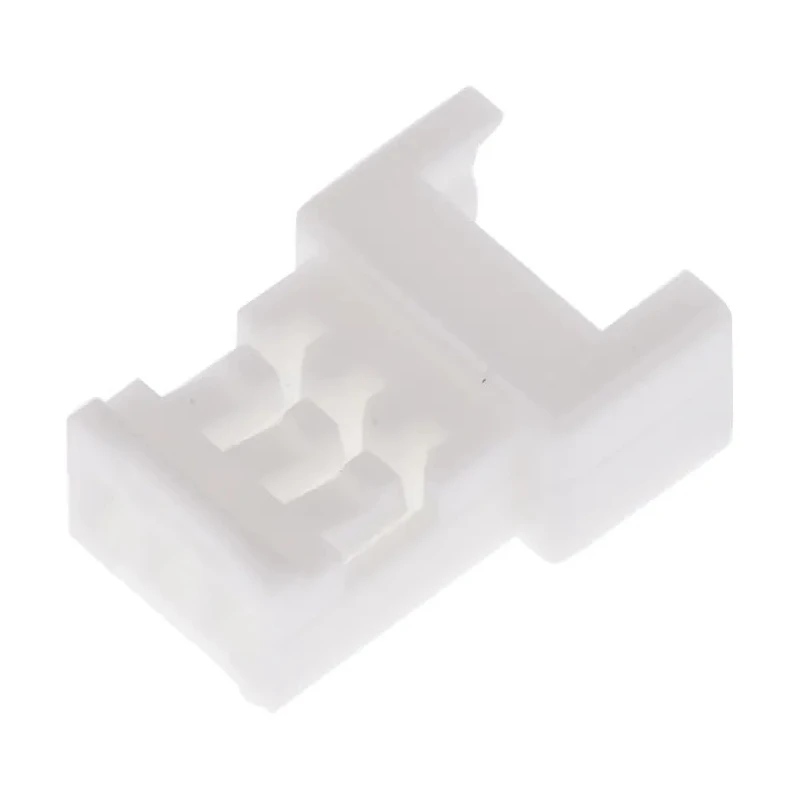

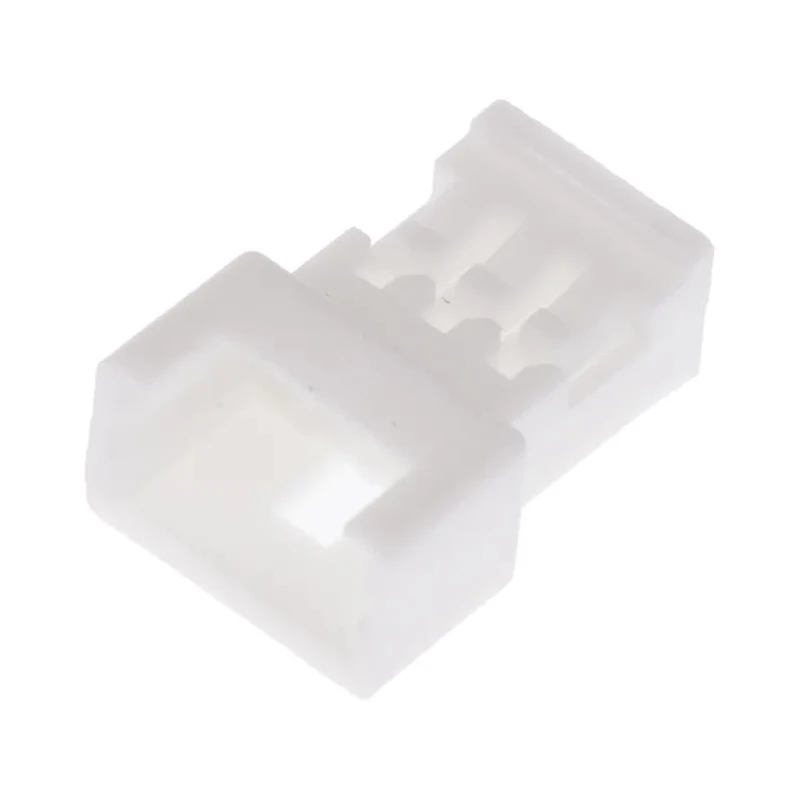

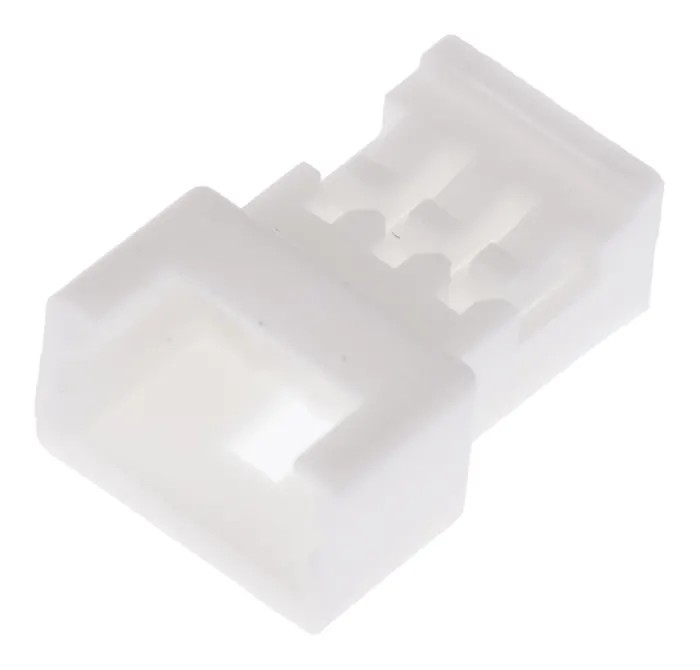

Molex PicoBlade Male Connector Housing, 1.25 mm Pitch, 3 Way, 1 Row Straight 51047-0300
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 5.5mm |
| Width | 3.2mm |
| Mount Type | Cable |
| Housing Material | Polyethylene Terephthalate |
| Series | PicoBlade |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| For Use With | PicoBlade Wire-to-Wire Plug |
| Pay online using | Or choose to pay later via bank transfer |
| Number of Contacts | 3 |
| Connector Gender | Male |
Key Features
- Designed for high-density harness applications with PicoBlade 1.25 mm wire-to-wire plug.
- Constructed from durable Polyethylene Terephthalate housing for stability and insulation.
- Features a mating lock ensuring secure connection to the mating receptacle housing.
- Compact dimensions with a 5.5 mm length and 3.2 mm width, suitable for tight spaces.
- Male connector orientation is straight with cable mount type for versatile wiring.
- Compatible with series 50125 terminals (plug contacts) and series 51021 receptacle housings.
- Ideal for use in automotive alarms, car audio systems, DVD players, industrial controllers, and patient monitors.
Product Description
Molex 51047-0300 PicoBlade Male Connector Housing is a specialized 1.25 mm pitch connector housing tailored for high-density wire-to-wire applications. This male connector features a 3-way, single-row straight orientation and is designed to ensure a reliable and secure connection in compact electronic assemblies.
Manufactured from robust Polyethylene Terephthalate (PET), the housing offers excellent insulation and mechanical durability. Its mating lock design helps maintain connection integrity under vibration and movement.
The compact size of 5.5 mm length and 3.2 mm width allows installation in applications with limited space, while the cable mount type provides flexible wiring options. It is intended for use with PicoBlade series plug contacts (50125 series) and corresponding receptacle housings (51021 series).
This Connector Housing suits diverse industrial and commercial use cases including automotive alarm systems, car audio equipment, DVD players, industrial process controllers, and patient monitoring devices, reflecting its broad utility in electronics.
High-density PicoBlade wire-to-wire plug housing with 1.25 mm pitch for precision connections. Polyethylene Terephthalate material ensures durability and electrical insulation. Three contact positions arranged in a single row with straight orientation.
Features mating lock to prevent disconnections and enhance reliability. Compact dimensions suit applications with space constraints. Cable mount type for ease of wiring integration. Compatible with PicoBlade 50125 terminals and 51021 series receptacle housings.
This Molex product is manufactured in Malaysia and is ideated for use in electronics manufacturing, automotive electrical systems, industrial equipment assembly, and healthcare devices.
Explore similar high-quality connectors and housing options in the Power Connectors category at EnvMart, your trusted source for precision electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 1.25 mm, designed for high-density wire-to-wire applications.
The connector housing has a length of 5.5 mm and a width of 3.2 mm, making it suitable for compact spaces.
This model features 3 contact positions arranged in a single row.
It is constructed from Polyethylene Terephthalate (PET), which provides insulation and mechanical stability.
This model supports cable mount type, allowing for flexible wiring integration.
It is compatible with PicoBlade series plug contacts, specifically the 50125 series terminals.
The orientation of this connector housing is straight, facilitating easy installation.
This connector housing is suitable for automotive alarms, car audio systems, DVD players, industrial controllers, and patient monitors.
It is manufactured in Malaysia.
This model belongs to the PicoBlade series, designed for high-density applications.
Yes, it features a mating lock that ensures a secure connection to the mating receptacle housing.
This connector housing has 1 row, accommodating a compact design for high-density applications.
