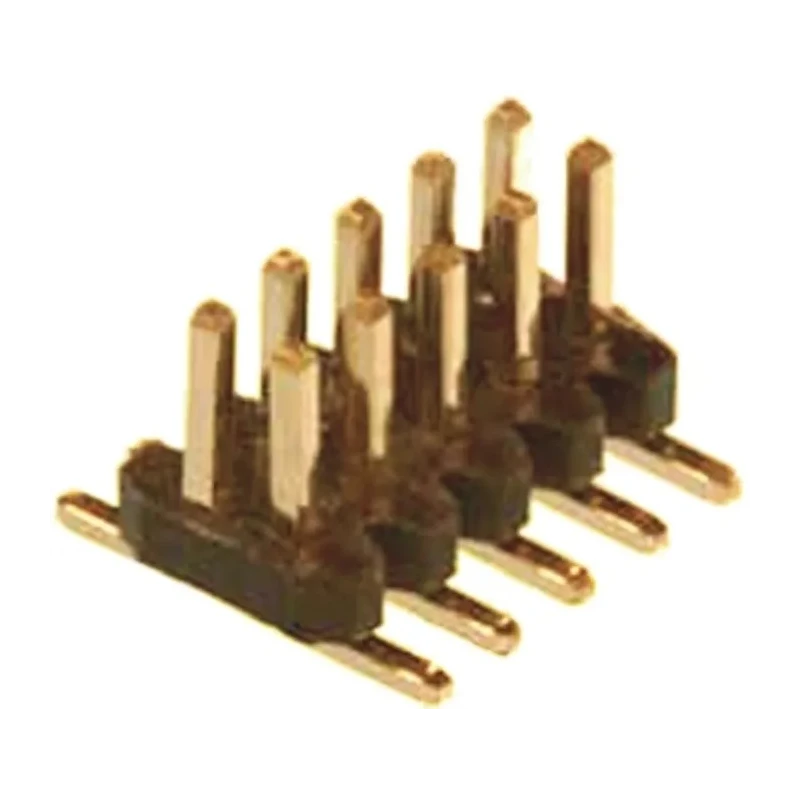

Amphenol Communications Solutions Minitek127 Series Straight Surface Pin Header 8 Contacts 1.27 mm Pitch 2 Row

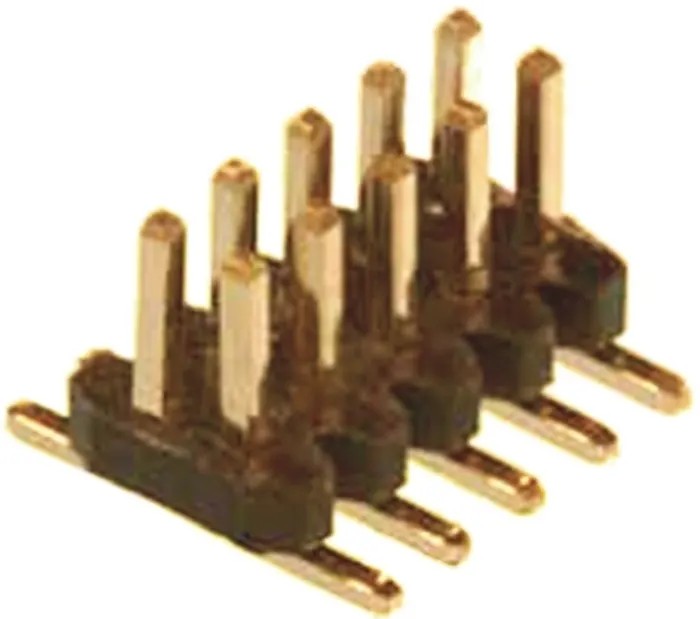

Amphenol Communications Solutions 20021121-00008C4LF Minitek127 Series Straight Surface Pin Header is a high-quality PCB header designed for reliable board-to-board connections. This 8-contact, 2-row connector features a 1.27 mm pitch and a straight orientation, making it ideal for surface mounting in compact electronic assemblies.

The pin header is constructed with a black thermoplastic housing rated UL 94 V-0 for flammability, capable of withstanding temperatures from -55°C to 125°C. The contacts are made of copper alloy with gold plating, ensuring excellent electrical performance and corrosion resistance. Its solder termination and unshrouded, male contact design enable straightforward integration and soldering during PCBA processes.

With a current rating of 1 ampere and voltage rating of 125 volts, this Minitek127 pin header suits a variety of industrial, commercial, and communication electronics applications requiring dependable board-to-board connectivity. It supports up to 100 mating cycles, delivering robust mechanical and electrical durability.

The connector is part of the extensive FCI Minitek127 1.27 mm connector system, known for interoperability with other common designs and versatility across wire-to-board and cable-to-board configurations. This specific variant is optimized for wave solder applications, making it suitable for both prototyping and volume production environments.

The connector system is designed for board-to-board connection with surface mount technology. It supports a continuous current rating of 1 ampere and voltage rating up to 125 volts. The header features unshrouded male contacts plated with gold over copper alloy for reliable conductivity.

The housing is made from high-temperature black thermoplastic with UL 94 V-0 flammability rating. Operating temperature range spans from -55°C to 125°C for demanding industrial environments. The mating pin length is 3.05 mm suitable for wave soldering applications.

This product supports up to 100 mating cycles assuring durability in frequent connect/disconnect use. The 2-row design and 1.27 mm pitch enable compact and efficient PCB interconnections.

This Amphenol Communications Solutions Minitek127 pin header is well suited for industrial electronic manufacturing, telecommunications equipment, laboratory instruments, and other PCB applications requiring high reliability and compact form factor.
