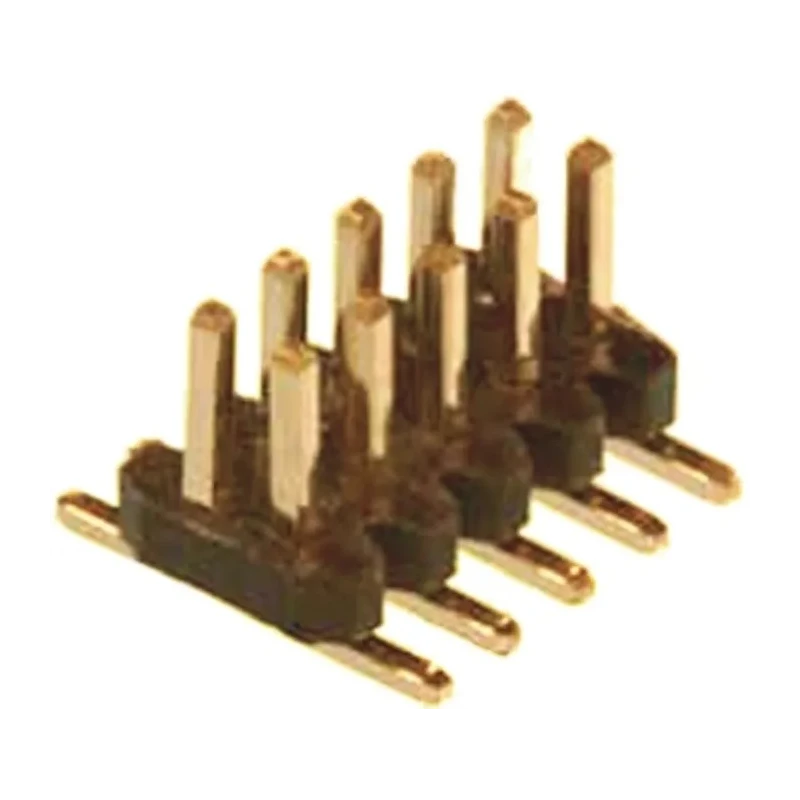

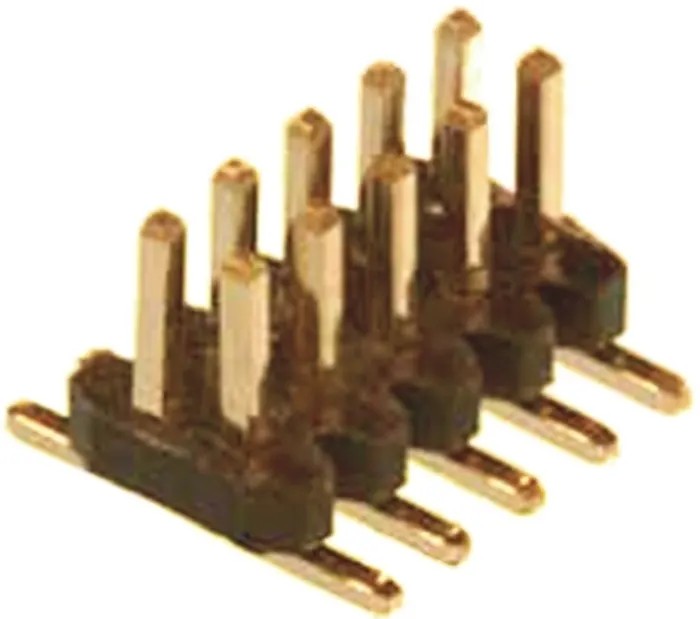

Amphenol Communications Solutions Minitek127 Series Straight Surface Pin Header, 8 Contacts, 1.27 mm Pitch, 2 Row Minitek127

Amphenol Communications Solutions Minitek127 Series Straight Surface Pin Header, model Minitek127, features 8 male contacts arranged in 2 rows with a 1.27 mm pitch. It is engineered for board-to-board connection systems using a surface mount design with solder termination, suitable for wave soldering processes.

The header's housing is made from high-temperature black thermoplastic with a UL 94 V-0 flammability rating, offering durability and safety in demanding industrial environments. Copper alloy contacts are plated with gold to ensure long-lasting conductivity and resistance to wear.

This pin header supports a continuous current rating of 1 Amp and a maximum voltage of 125 Volts. It operates across a broad temperature range from -55°C to 125°C, making it suitable for various electronic applications in industrial, communication, and manufacturing systems.

The contact mating pin length is 3.05 mm, providing reliable mechanical and electrical mating cycles. The unshrouded design allows easy access and intermateability with other systems using the widely adopted Minitek127™ 1.27 mm Connector System, which is non-proprietary and compatible with various manufacturers' components.

This product is manufactured in China and is ideal for use in PCB connector applications such as automation control modules, industrial electronics, and communication devices. The robust construction supports up to 100 mating cycles, ensuring long-term reliability.

Features a straight, unshrouded design with two rows of 8 male contacts. Housing material is thermoplastic rated UL 94 V-0 for flammability resistance. Contact plating is gold over copper alloy contacts for enhanced conductivity.

Rated for 1A current and 125V voltage suitable for various electronic circuits. Minimum operating temperature of -55°C and maximum of 125°C for wide application range. Designed for surface mount with solder termination compatible with wave soldering.

Mating pin length of 3.05 mm for secure and durable connector mating. Compatible with Board-to-Board connector systems using Minitek127 series.

For designers and manufacturers requiring reliable PCB connector solutions, the Amphenol Minitek127 pin header provides a high-quality, tested option. Its modular design supports a broad range of wiring and cabling needs and is widely used in communications and industrial electronics.
