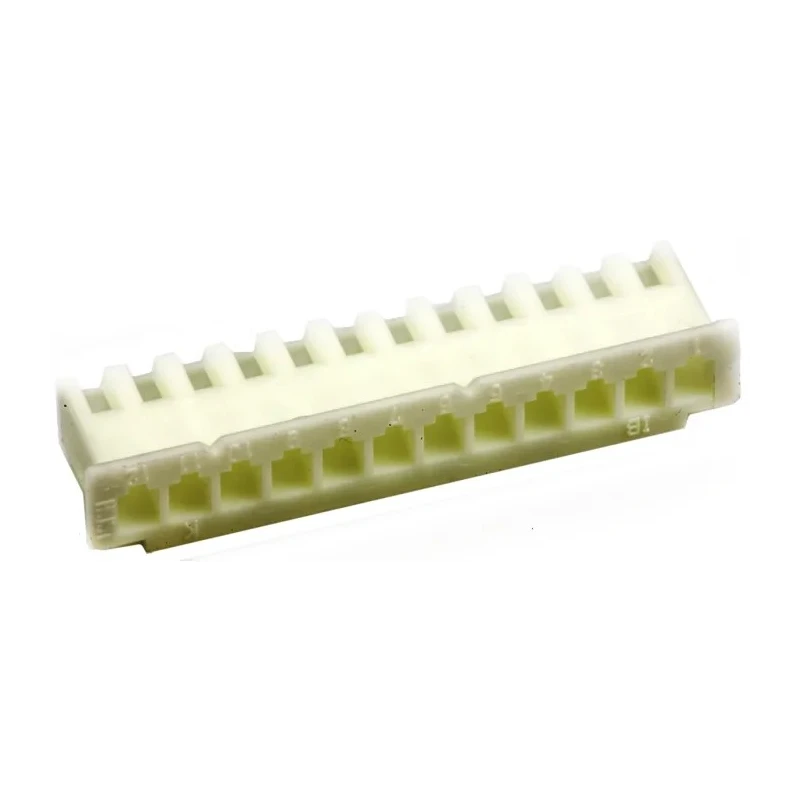

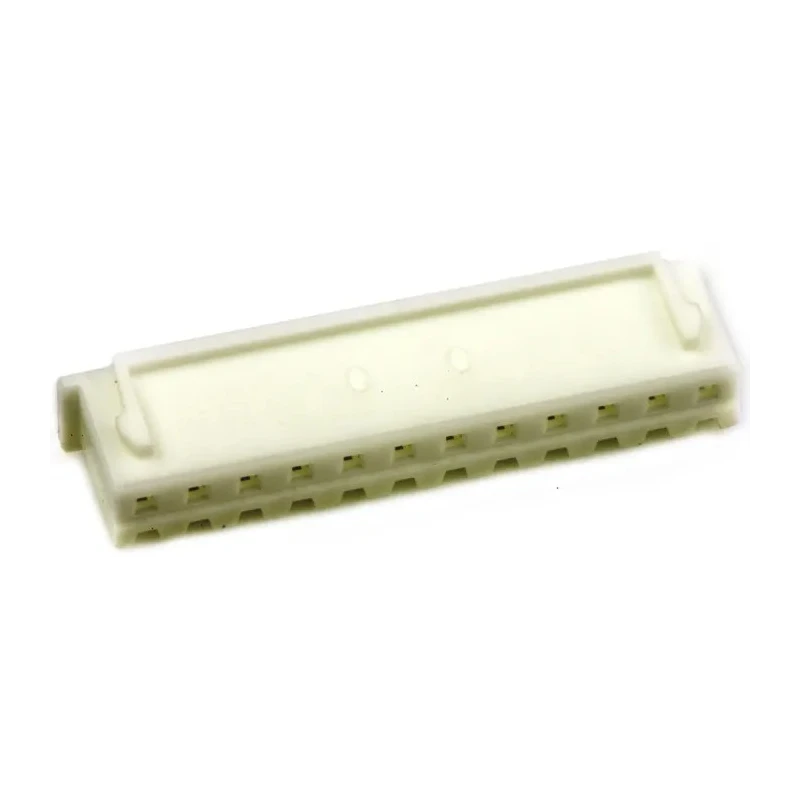

JST XHP Female Connector Housing 2.5 mm Pitch 12 Way 1 Row Straight XHP-12

JST XHP-12 female connector housing features a 2.5 mm pitch, 12-way configuration in a single row for reliable cable mounting in electronic and power connector applications.

This connector housing is part of the XH Series, designed to provide high density mounting solutions suitable for miniature electronic devices requiring compact size and dependable connection integrity.

Constructed from polyamide material with a UL 94V-0 flammability rating, the housing ensures safety and durability in demanding environments. The natural white color allows easy identification during assembly and maintenance.

It measures 32.3 mm in length and 5.7 mm in width, offering a low profile design with a mounting height of approximately 9.8 mm, facilitating space-efficient PCB layouts.

The straight orientation of the connector and its compatibility with XH Series dis-connectable crimp style connectors make it ideal for cable management and modular designs in industrial, electronic manufacturing, and assembly applications.

High density mounting for miniature electronic equipment. Durable polyamide material with UL 94V-0 rating. 2.5 mm pitch ensures compatibility with XH Series connectors. 12 contacts arranged in a single straight row configuration.

Compact dimensions supporting efficient PCB design. Ensures reliable and secure electrical connections. Natural white color for visual clarity in assemblies. Manufactured in China adhering to JST quality standards.

This JST XHP-12 connector housing is suitable for industrial electronic assembly, power connectors, automation equipment, and other electronic applications requiring dependable and high-density wiring solutions.
