onsemi 4 2-Input NAND Logic Gate, 14-Pin TSSOP 74VHC00MTCX

onsemi 74VHC00MTCX is a 4 2-input NAND logic gate IC featuring a 14-pin TSSOP package designed for high-speed logic applications. Part of the 74VHC family, it utilizes advanced high-speed CMOS technology to ensure low power consumption and efficient switching suitable for industrial and electronic applications.

This logic gate is surface mount compatible, ideal for compact PCB designs requiring NAND logic functionality. The device operates within a voltage range of 2.0 to 5.5 volts and supports CMOS inputs with TTL output compatibility, providing flexible integration possibilities in electronic circuits.

With a maximum propagation delay of 8.5 nanoseconds at a capacitive load, the IC supports fast switching speeds critical for timing-sensitive applications. It accommodates an ambient operating temperature range from -40°C to 85°C, making it suitable for harsh industrial or automotive environments, though it does not meet automotive standard certification.

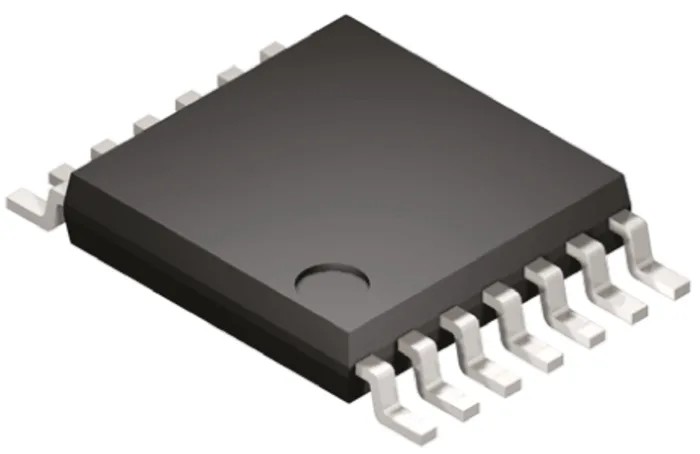

The 14-pin TSSOP package ensures a small footprint on printed circuit boards, with physical dimensions of 5 millimeters length and 900 micrometers height, facilitating space-efficient electronic design. Each NAND gate contains two inputs, with four such gates per IC, offering versatile logic operations in digital electronics.

This component is widely applicable in industrial automation, consumer electronics, and embedded systems, where reliable NAND Logic Gate functions are necessary for signal processing and control logic implementation.

The logic function is NAND with 4 elements, each having 2 inputs. Designed for surface mount applications with TSSOP package and 14 pins. Operating voltage ranges from 2V to 5.5V with CMOS input and TTL output compatibility.

Maximum propagation delay time at capacitive load is 8.5 nanoseconds. Wide operating temperature range from -40°C to 85°C supports diverse industrial environments. Maximum output current is ±8mA ensuring efficient signal driving capability.

Compact dimensions with 5mm length and 900μm height for PCB space saving. Automotive standard compliance is not applicable for this device.
