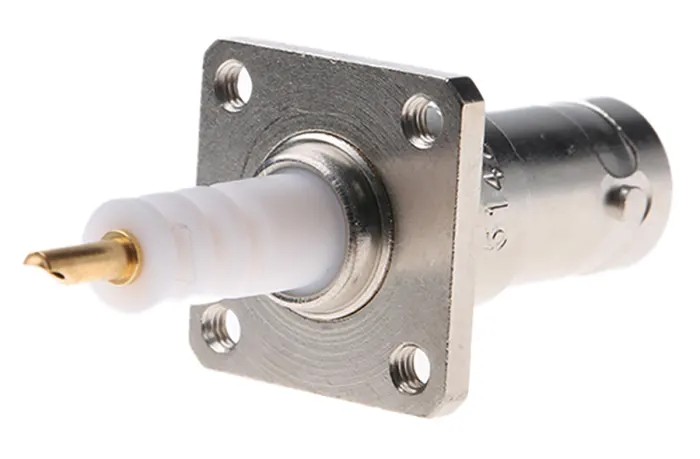

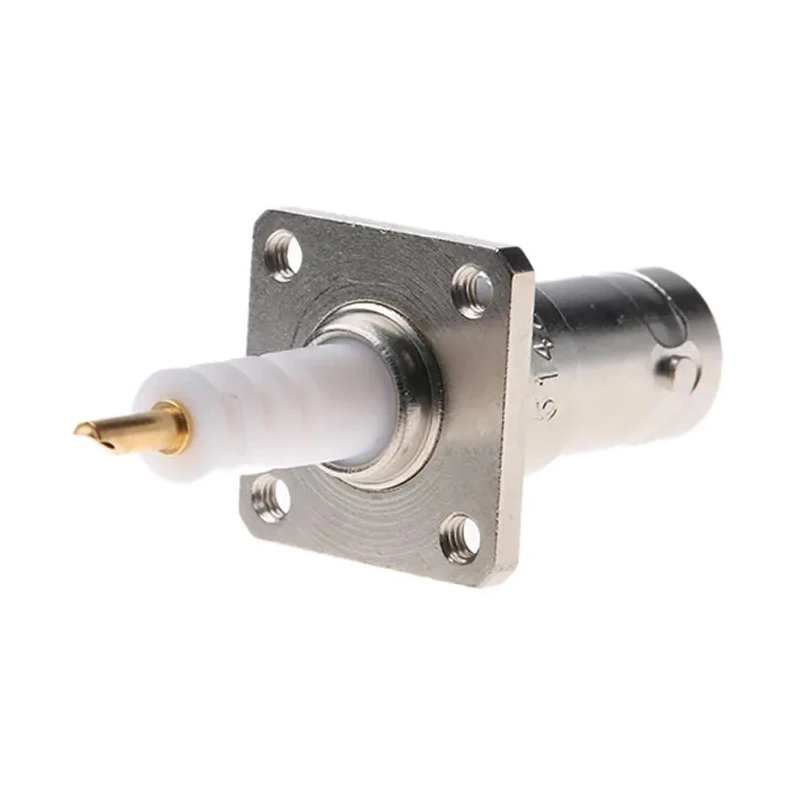

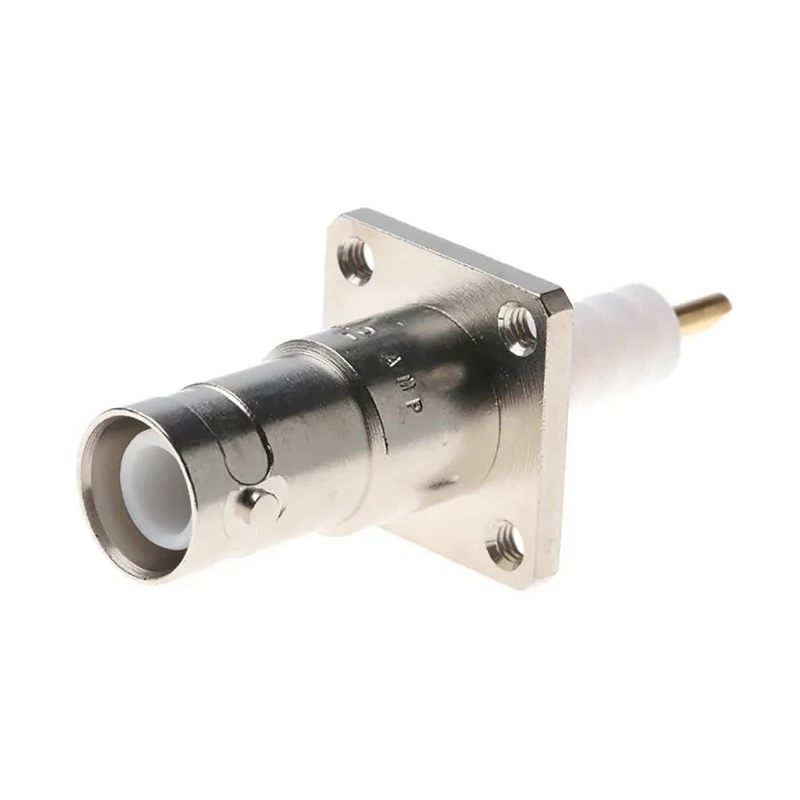

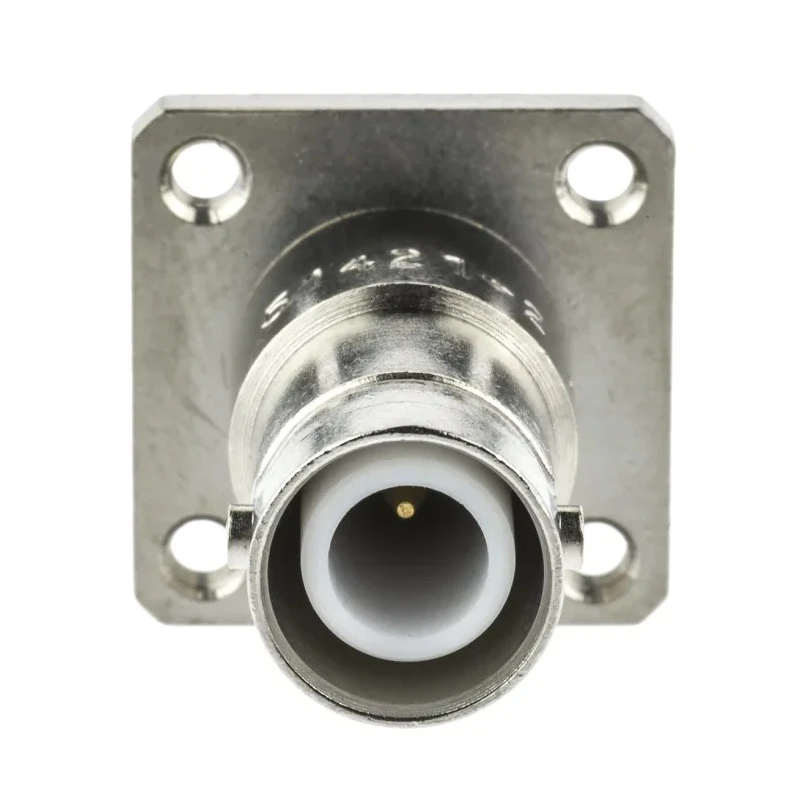

TE Connectivity Coaxial Connector Panel Mount Female SHV Straight Body Solder 51421-2
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Straight |
| Model | 51421-2 |
| Mount Type | Panel Mount |
| Operating Frequency | 0.3GHz |
| Contact Material | Brass |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Contact Plating | Gold |
| Contact Gender | Male |
| Connector Gender | Female |
| Coaxial Connector Type | SHV |
| Body Plating | Nickel |
Key Features
- Panel mount configuration with female connector gender.
- SHV coaxial connector type supports up to 5,000 volts DC applications.
- Nickel plated body with gold plated brass contact material.
- Operating temperature range from -65°C to 165°C.
- Solder termination ensures secure cable connection.
- Polarized normal polarity with straight orientation.
- Standard size and no bulkhead design.
- Provides reliable shielding and bayonet-locking coupling for secure mating.
Product Description
TE Connectivity 51421-2 is a high-voltage SHV panel mount coaxial connector designed for demanding electronic and electrical applications. This female connector features a straight body with solder terminations, allowing secure attachment to coaxial cables. The nickel-plated body and gold-plated brass contacts ensure excellent corrosion resistance and reliable signal transmission.
Its operating frequency is rated up to 0.3 GHz, and it supports an operating temperature range from -65°C to 165°C, making it suitable for harsh environments. The connector's polarized normal polarity center contacts prevent mismating and ensure safety during high voltage usage up to 5,000 volts DC.
The panel mount type includes a square flange with 4 mounting holes for secure installation on equipment panels. The bayonet-locking coupling design provides a fast and secure mating similar to BNC connectors but ensures SHV specific safety features.
This connector is widely used in industrial machinery, laboratory instrumentation, and power distribution systems requiring shielded, high voltage cable connections. It supports reliable signal integrity and mechanical durability.
Panel mount configuration with female connector gender. Nickel body plating and gold-plated brass contacts. Solder termination for secure connections. Designed for high-voltage applications up to 5,000 V DC. Bayonet-locking coupling similar to BNC type.
Operating temperature -65°C to 165°C.
Choose TE Connectivity's 51421-2 coaxial connector for dependable, industrial-grade panel mount cable connections. Browse our selection of Coaxial Connectors for all your electronic component needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This SHV coaxial connector supports applications up to 5,000 volts DC.
The operating temperature range for this model is from -65°C to 165°C.
It features a solder termination type, ensuring a secure connection to coaxial cables.
The body is nickel plated, and the contacts are made of gold-plated brass, providing corrosion resistance and reliable signal transmission.
This model is designed for panel mount installation and includes a square flange with 4 mounting holes for secure attachment.
The connector has a straight orientation, which facilitates easy connection in tight spaces.
It is rated for an operating frequency of up to 0.3 GHz.
Yes, it features polarized normal polarity center contacts to prevent mismating, enhancing safety during high voltage applications.
It is widely used in industrial machinery, laboratory instrumentation, and power distribution systems that require shielded, high voltage cable connections.
This connector is a female type, designed to mate with male connectors.
It utilizes a bayonet-locking coupling design, which provides a fast and secure mating similar to BNC connectors.
The country of origin for this connector is India.
