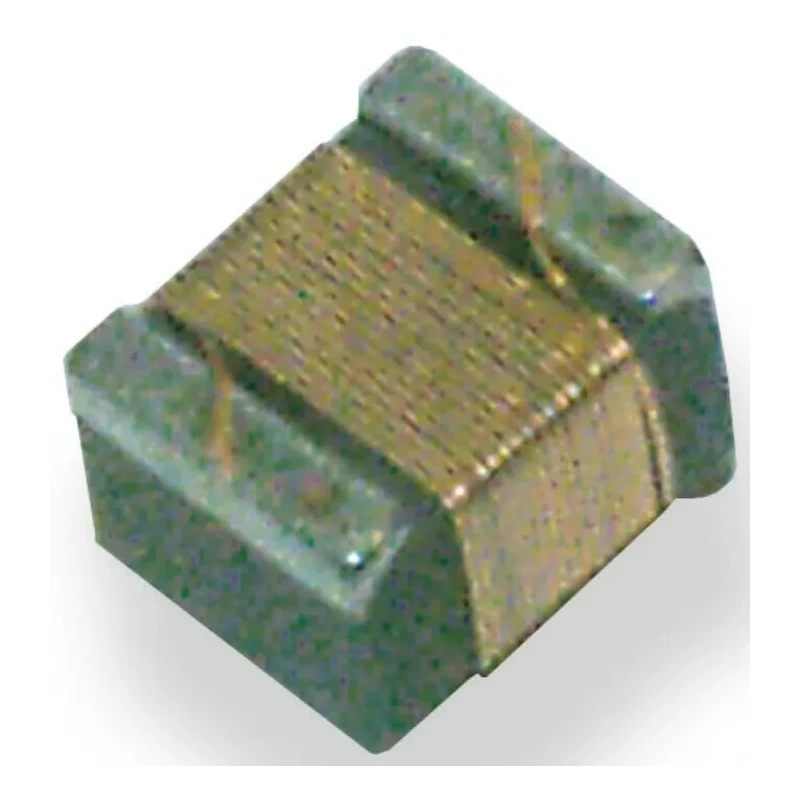

Murata Wirewound Surface Mount Inductor 7.5 nH ±2% 570 mA 0402 Ferrite Core LQW15AN7N5G00D

Murata LQW15AN7N5G00D is a high-quality wirewound surface mount inductor designed primarily for high frequency applications such as wireless telecommunications, including Bluetooth, GSM, and WLAN systems. It features a ferrite core that provides excellent magnetic properties for stability and performance.

This 0402 size component measures 1mm in length, 0.6mm in depth, and 0.5mm in height, making it suitable for compact PCB designs. The inductor supports a maximum DC current of 570 mA and operates reliably up to 125°C, allowing it to perform well in rugged environments.

The inductance value is 7.5 nH with a tight tolerance of ±2%, ensuring precision in circuit design. With a maximum DC resistance of only 130 mΩ, it facilitates efficient current conduction with minimal power loss.

The device is moulded and constructed with wirewound technology, enhancing its robustness. It is supplied on paper tape packaging to enable efficient placement in automated manufacturing processes.

Murata inductors in the LQW series are RoHS compliant, reflecting adherence to environmental standards. Constructed with a ferrite core for stable magnetic properties. Maximum operating temperature of 125°C. Inductance tolerance of ±2%.

Low maximum DC resistance of 130 mΩ. Minimum quality factor of 25 for high frequency performance. Moulded wirewound construction provides enhanced durability. Compact 0402 package size optimized for modern electronics. Supplied on paper tape for automated insertion.

This inductor is suitable for industrial, telecommunications, electronics manufacturing, and high frequency circuit applications. Its compact size and reliable characteristics make it ideal for embedded systems and advanced wireless communication devices.
