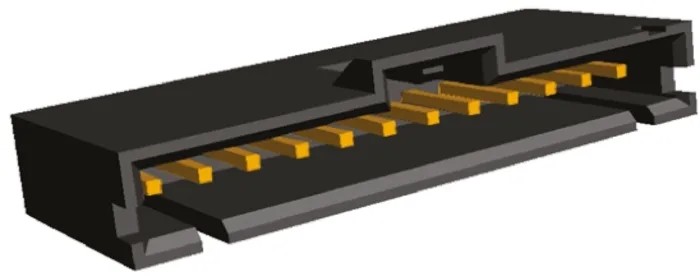

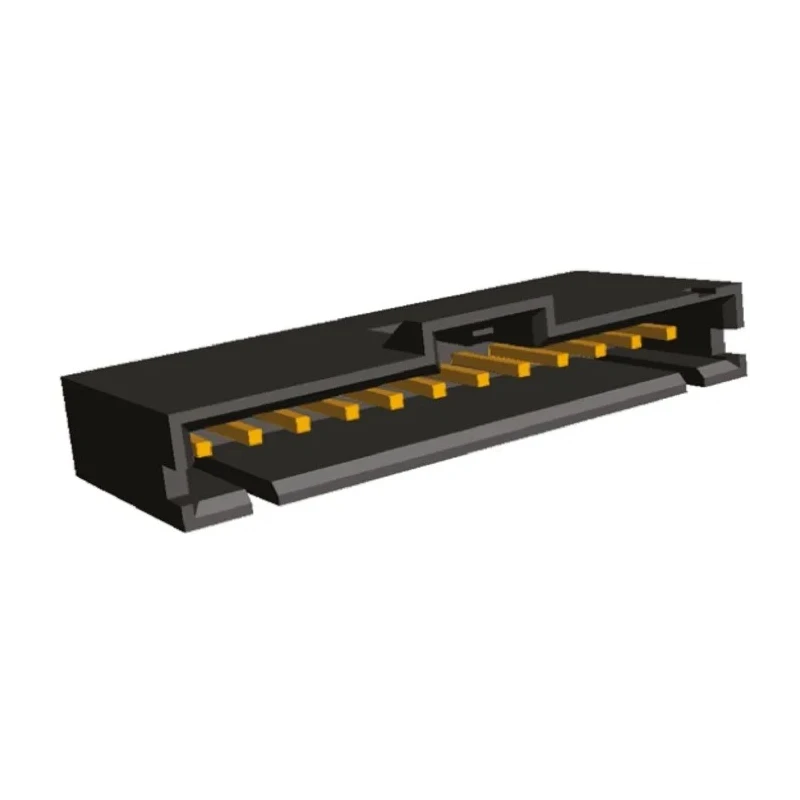

TE Connectivity AMPMODU MTE Series Straight Through Hole 12 Contact PCB Header 2.54 mm Pitch 1 Row Shrouded 6-104363-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | AMPMODU MTE |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 739-0824Brand: TE ConnectivityManufacturers Part No.: 6-104363-1 |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.3mm |
Key Features
- Compatible with MTE IDC receptacle connectors for mass wire termination.
- Features polarization to prevent mismating and an integral latching mechanism for secure connections.
- Constructed from thermoplastic housing with brass contacts plated in gold.
- Supports a continuous current of 3A and voltage rating of 250V.
- Operates reliably in temperature range from -65°C to 105°C.
- Tail pins are 3.3mm long, designed for through-hole solder mounting.
- End-to-end stackable design enhances modular use and flexibility.
- Suitable for applications including computers, telecommunications, medical and automotive equipment.
Product Description
TE Connectivity 6-104363-1 AMPMODU MTE Series PCB Header is a high-quality, reliable straight through hole connector designed for efficient mass termination of wires in electronic assemblies.
This PCB header features 12 male contacts arranged in a single row with 2.54 mm pitch and is shrouded to provide protection and correct polarization, preventing improper mating during assembly. The connector housing is made from durable thermoplastic material, and the contacts are brass with gold plating to ensure low resistance and excellent corrosion resistance.
Designed for a current rating of 3 amps and voltage up to 250 volts, this PCB header operates within a wide temperature range from -65°C to 105°C, suitable for various industrial and commercial applications.
The connector system relies on IDC (insulation displacement contact) technology allowing quick and cost-effective wire termination without stripping insulation. The integral latching mechanism secures the connection with compatible receptacles for added reliability. Tail pins of 3.3 mm length provide secure through-hole solder termination to printed circuit boards.
This AMPMODU MTE connector is end-to-end stackable, enabling scalable configurations in compact spaces, making it ideal for use in telecommunications equipment, computers, commercial printers, medical instrumentation, and automotive control systems.
Compatible with MTE IDC receptacle connectors for mass wire termination. Features polarization to prevent mismating and an integral latching mechanism for secure connections. Constructed from thermoplastic housing with brass contacts plated in gold.
Supports a continuous current of 3A and voltage rating of 250V. Operates reliably in temperature range from -65°C to 105°C. Tail pins are 3.3mm long, designed for through-hole solder mounting. End-to-end stackable design enhances modular use and flexibility.
Suitable for applications including computers, telecommunications, medical and automotive equipment. Explore the complete range of PCB connectors and headers at EnvMart for your electronic assembly needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a continuous current of 3A and has a voltage rating of 250V.
It features a 2.54 mm pitch and has 12 male contacts arranged in a single row.
The connector operates reliably within a temperature range from -65°C to 105°C.
The housing is made from thermoplastic, while the contacts are brass plated in gold for low resistance and corrosion resistance.
It features an integral latching mechanism that secures the connection with compatible receptacles, preventing mismating during assembly.
This model is designed for through-hole solder mounting, with tail pins measuring 3.3 mm in length.
Yes, it is suitable for applications including telecommunications, computers, medical instrumentation, and automotive control systems.
It is compatible with MTE IDC receptacle connectors for mass wire termination.
The orientation of this model is straight, designed for efficient wire termination.
This model uses insulation displacement contact (IDC) technology for quick and cost-effective wire termination without stripping insulation.
The end-to-end stackable design allows for scalable configurations in compact spaces, enhancing modular use and flexibility.
The country of origin for this product is India.
