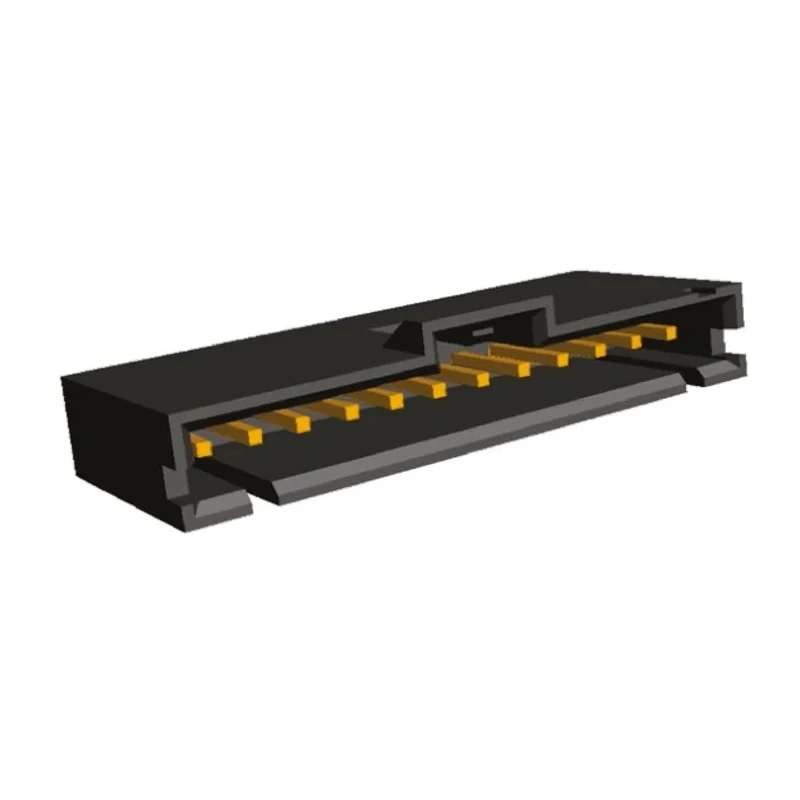

TE Connectivity AMPMODU MTE Series Straight Through Hole PCB Header 12 Contacts 2.54 mm Pitch 1 Row Shrouded 6-104363-1

TE Connectivity 6-104363-1 AMPMODU MTE Series Straight Through Hole PCB Header is a high-quality connector designed to provide dependable wire-to-board connections in electronic assemblies. This PCB header features 12 contacts arranged in a single row with a 2.54 mm pitch, optimized for standard PCB layouts requiring tight and reliable contact pitch.

Manufactured using a robust thermoplastic housing and brass contacts with gold plating, this header ensures excellent conductivity and corrosion resistance for long-term performance in industrial and commercial electronic applications. Its shrouded design adds protection against accidental contact and prevents mis-alignment during connection.

The header supports current ratings up to 3A and voltage up to 250V, with operational temperature limits ranging from -65°C to 105°C, making it suitable for use in a wide range of environments including computing, telecommunications, instrumentation, and automotive control systems.

Designed for through-hole mounting with solder termination, the 3.3 mm tail pin length secures the component firmly to the printed circuit board. The integral latching mechanism combined with polarization features prevents mismating and allows end-to-end stacking, enabling flexible system configuration and reliable connection integrity.

This component is ideal for mass termination of wires using insulation displacement contact (IDC) technology, facilitating efficient assembly in wire-to-board and wire-to-wire applications. It is commonly utilized in commercial printers, copiers, medical equipment, and various electronic control systems.

This PCB header is ideal for mass termination of wires with IDC receptacle connectors. Features an integral latching mechanism for secure mating connections. End-to-end stackable and polarized to prevent mismating during assembly.

Constructed with thermoplastic housing and gold-plated brass contacts for durability. Operates safely up to 250V and 3A current with a temperature range from -65°C to 105°C. Through-hole mount with solder termination and a 3.3 mm tail pin length for stable PCB attachment.
