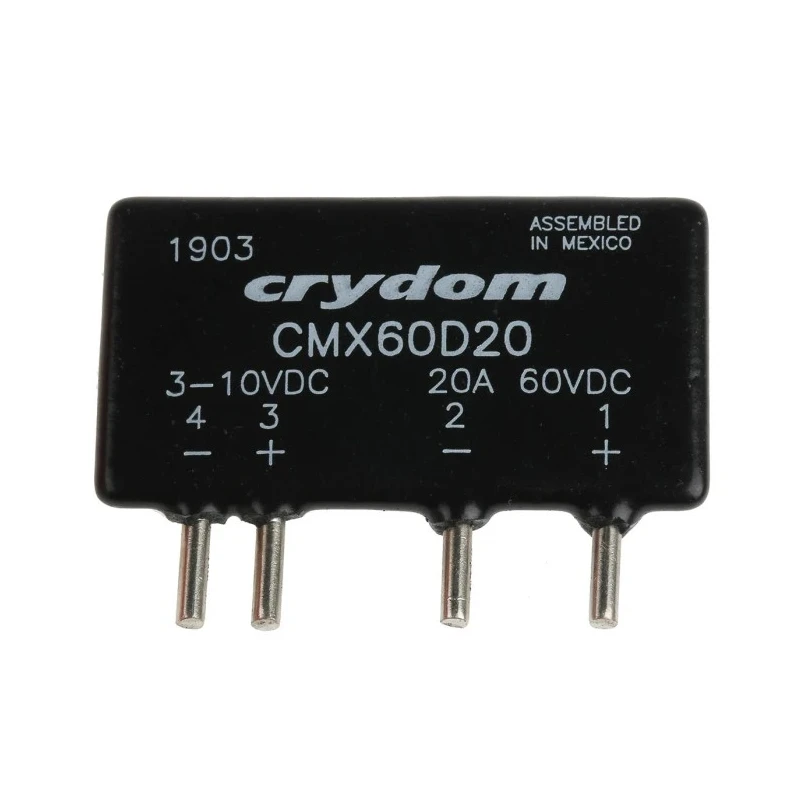

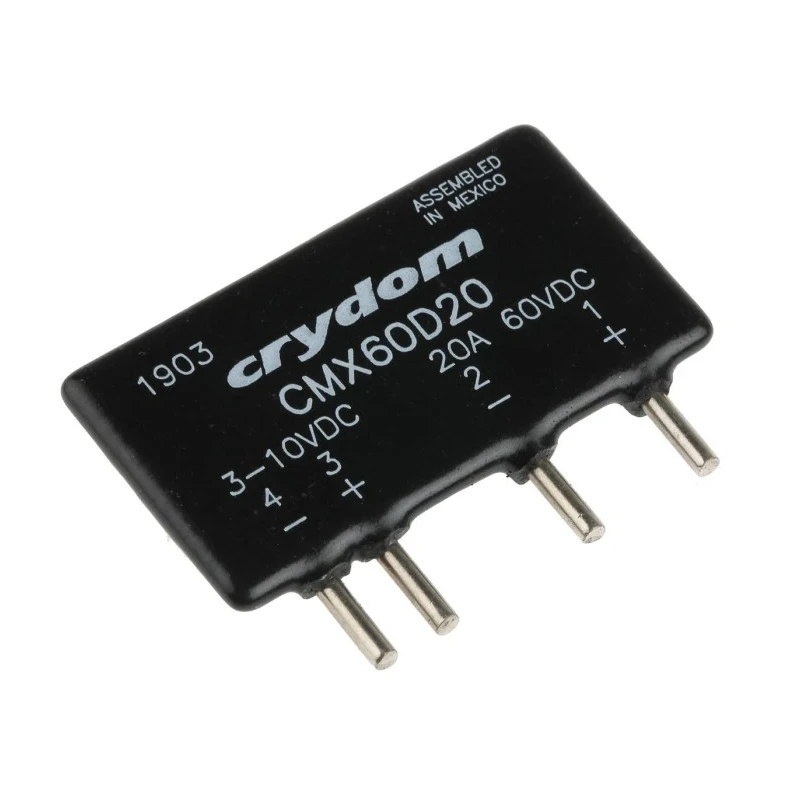

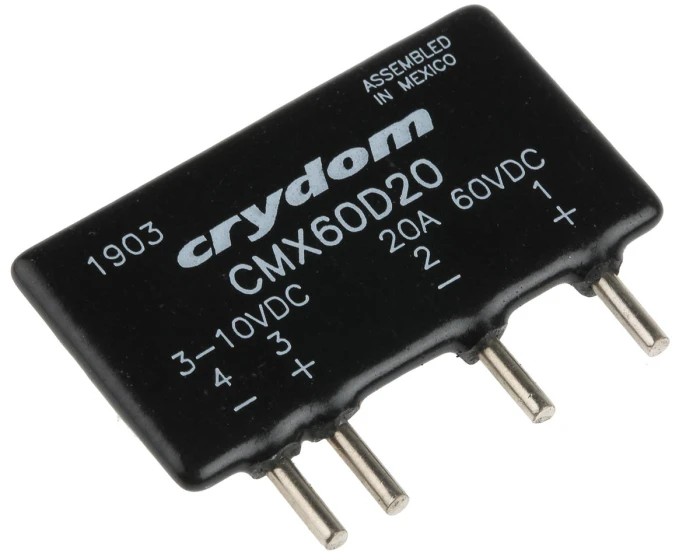

Crydom CMX Series Solid State Relay 20A Load PCB Mount 60V DC Load 10V DC Control CMX60D20

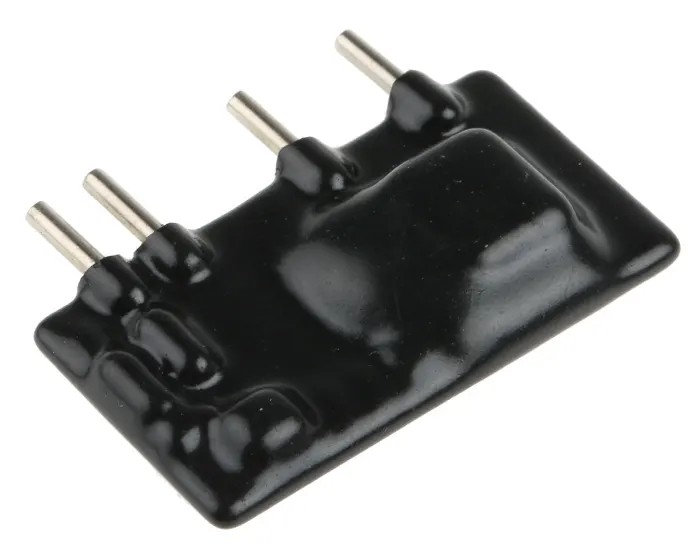

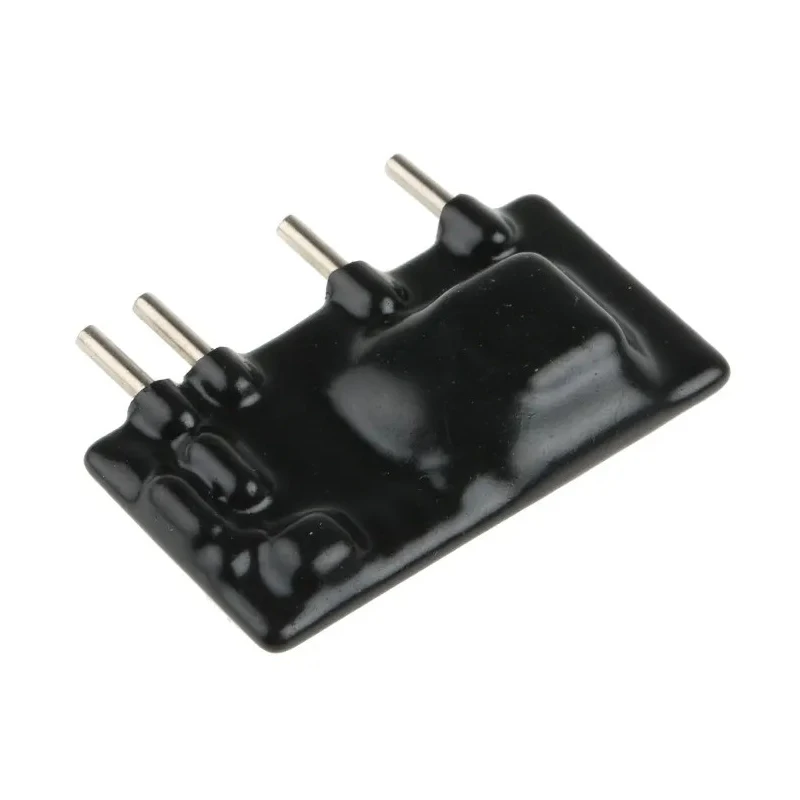

Crydom CMX60D20 Solid State Relay is designed for efficient switching of DC loads up to 20A, making it ideal for medium-duty industrial and electronic applications. This model features a compact SIP-4 through-hole mount package measuring 43.1mm length, 7.6mm width, and 25.4mm height, enabling easy PCB integration and space saving.

Constructed with thermally conductive epoxy encapsulation, the relay resists heat build-up and performs reliably across a broad temperature range from -30°C to +80°C. The MOSFET output type ensures silent switching with minimal wear, enhancing longevity and reducing maintenance requirements.

Equipped with a control voltage input range of 3V to 10V DC, the CMX60D20 operates with rapid switching speeds, turning on within 1 millisecond and switching off in 0.3 milliseconds, providing near-instant response times needed in precise automated controls.

Its low off-state leakage current of 100μA DC supports energy-efficient operation while providing excellent insulation resistance, isolating the load from power sources even during surges. This makes it highly suitable for sensitive applications such as medical equipment, logistics systems, and industrial automation where reliability is critical.

The product meets CE and RoHS standards ensuring compliance with international quality and environmental regulations. Its lightweight design (approx. 11 grams) minimizes physical stress on PCBs while maintaining robust electrical performance.

Capable of switching DC loads up to 20A reliably. Operates with control voltage range of 3V to 10V DC for flexibility in applications. Compact SIP-4 package with dimensions 43.1mm x 7.6mm x 25.4mm optimizes PCB space. Fast switching speeds with turn-on time of 1ms and turn-off time of 0.3ms.

Wide operating temperature range from -30°C to +80°C suitable for demanding environments. Thermally conductive epoxy encapsulation ensures effective heat dissipation. Low off-state leakage current of 100μA DC minimizes power loss.

MOSFET output type enables efficient and silent switching without mechanical wear. Complies with CE and RoHS standards for quality and environmental safety. Lightweight design at 11 grams does not strain PCB layouts.

This solid state relay is most commonly used in industrial automation, electrical equipment assembly, laboratory instrumentation, and manufacturing processes requiring rapid switching of DC loads without mechanical failure risks. Its reliable performance and compact size facilitate integration into control panels and electronic assemblies where space and durability are priorities.
