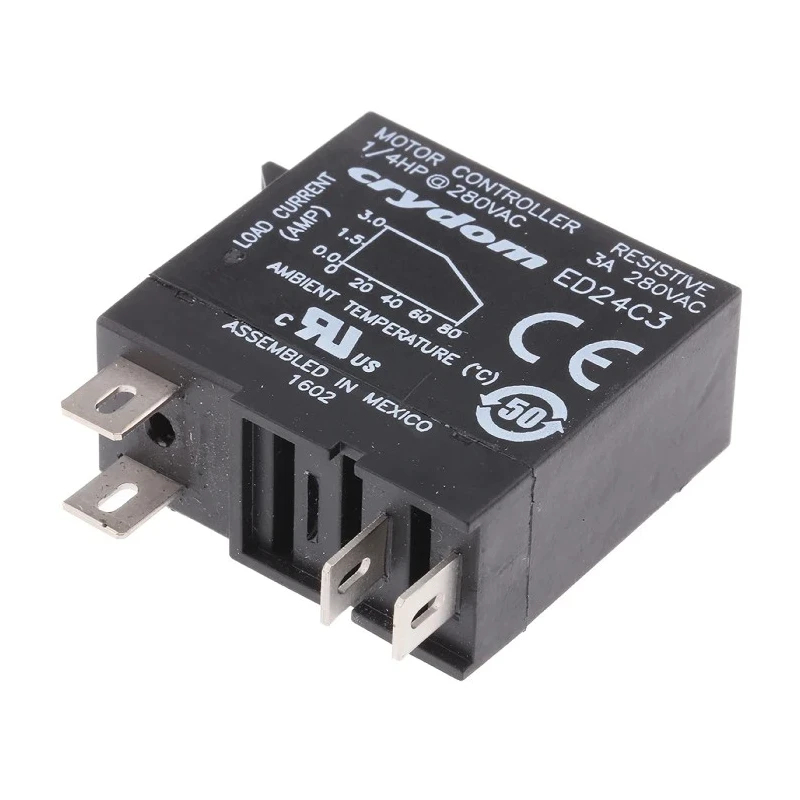

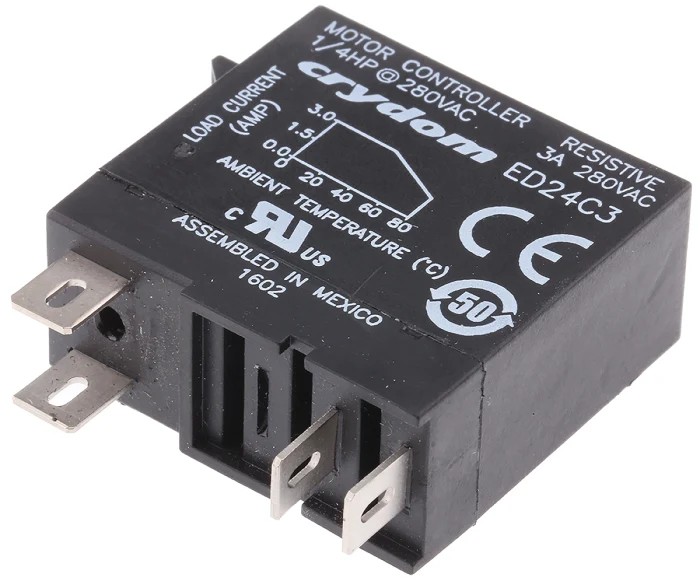

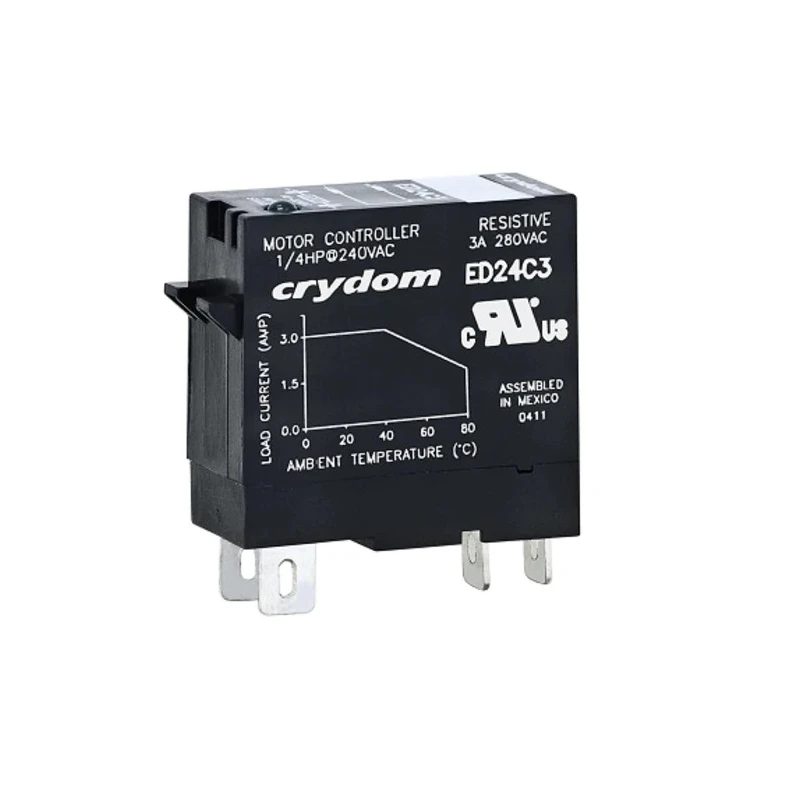

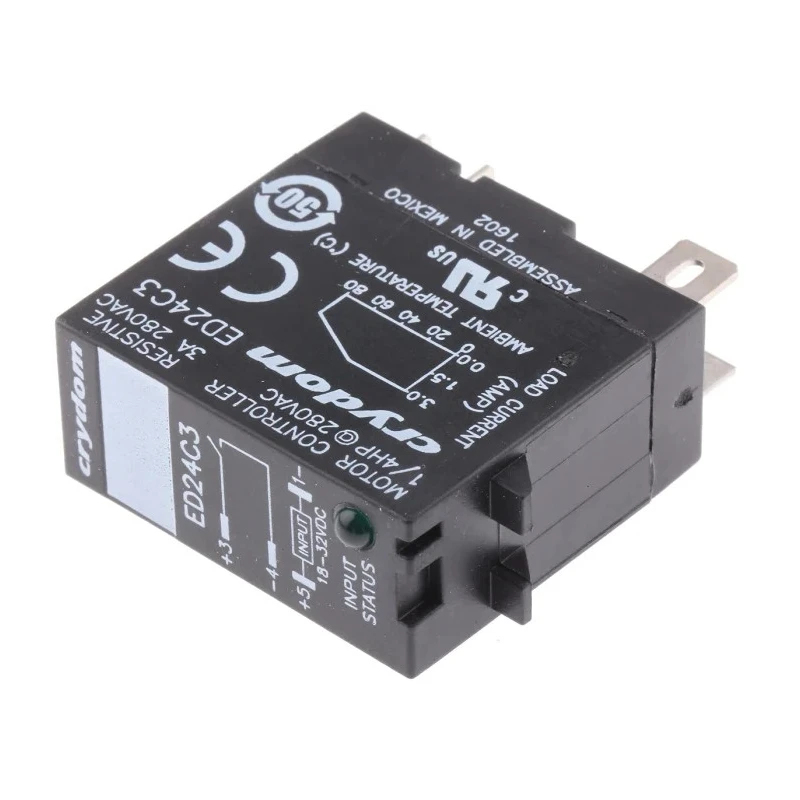

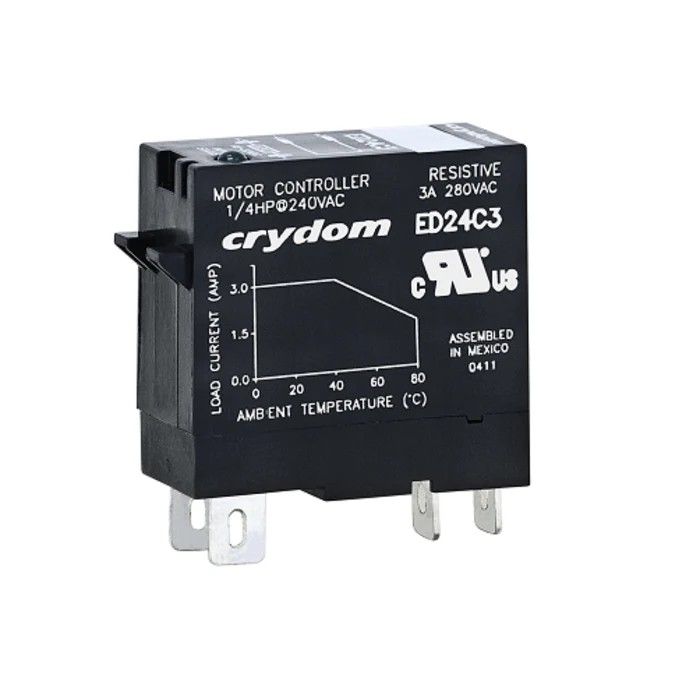

Crydom ED Series Solid State Relay 3A Load DIN Rail Mount 280Vrms Load 32V dc Control ED24C3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 37.4mm |
| Length | 29mm |
| Model | ED24C3 |
| Width | 12.7mm |
| Mount Type | DIN Rail |
| Output type | AC |
| Series | ED |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Capacitance | 10pF |
| Minimum Operating Temperature | -30°C |
| Terminal type | Through Hole |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 3A |
| Standards/Approvals | CE, cUL, IEC Rated, RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 740-1330Brand: CrydomManufacturers Part No.: ED24C3 |
| Minimum Control Voltage | 18V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 0.1mArms |
Key Features
- This solid state relay supports a maximum load voltage of 280 Vrms for AC outputs.
- The control voltage range is from 18V dc to 32V dc ensuring compatibility with various control circuits.
- It features zero cross switching to minimize electrical noise and enhance device longevity.
- The unit is designed for wide temperature operation from -30°C up to 80°C for tough industrial environments.
- Through-hole terminals and LED indicators provide easy installation and quick diagnostics.
- The relay has a compact form factor with dimensions 29mm length, 37.4mm height, and 12.7mm width.
- Nickel-plated copper terminals ensure corrosion-resistant and highly conductive connections.
- Complies with IEC, CE, cUL standards and RoHS directives for safety and environmental compliance.
Product Description
The Crydom ED24C3 solid state relay is engineered for industrial automation and control applications requiring reliable AC load switching up to 3 amperes. This model is part of the ED Series, designed to operate efficiently with a maximum load voltage rating of 280 Vrms and a control input voltage range of 18V to 32V DC.
Constructed with a durable insulating PA housing, the ED24C3 minimizes user exposure to electrical hazards and provides robust protection under demanding conditions. The relay features zero cross switching technology, which activates switching precisely at the zero voltage point to reduce electrical transient stresses and extend the lifespan of connected equipment.
Installation is straightforward with through-hole terminals compatible with DIN rail mounting systems and standard PCB sockets. The unit's LED indicator allows operators to quickly verify input status for ease of maintenance and troubleshooting.
Designed to perform reliably within a broad temperature range from -30°C to +80°C, this relay suits various industrial environments including automation systems, HVAC controls, lighting management, and manufacturing process control. Its compact size (29mm x 12.7mm x 37.4mm) helps save panel space while delivering efficient performance.
3A maximum load current capacity. DIN rail mount with through-hole terminal type. Zero cross switching function for minimized electrical noise. Wide operating temperature range: -30°C to 80°C. LED status indicator for input diagnostics.
Compliant with IEC, CE, cUL standards and RoHS. Corrosion-resistant nickel-plated copper terminals.
This Crydom ED24C3 solid state relay represents a reliable, maintenance-free solution for seamless machine control, improving operational uptime in industrial, laboratory, manufacturing, and HVAC applications. Explore the range of Solid State Relays at EnvMart for quality and compliance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load voltage for this solid state relay is 280 Vrms for AC outputs.
The control voltage range for this model is from 18V DC to 32V DC.
It has a maximum load current capacity of 3A.
This relay supports DIN rail mounting with through-hole terminals.
The operating temperature range for this model is from -30°C to +80°C.
It features zero cross switching technology to minimize electrical noise and extend the lifespan of connected equipment.
The dimensions of this relay are 29mm in length, 12.7mm in width, and 37.4mm in height.
This model provides an AC output.
It complies with CE, cUL, IEC standards and RoHS directives for safety and environmental compliance.
The contact configuration of this solid state relay is SPST (Single Pole, Single Throw).
The off-state leakage current for the ED24C3 is 0.1mArms.
Yes, it includes an LED indicator for quick verification of input status, aiding in maintenance and troubleshooting.
