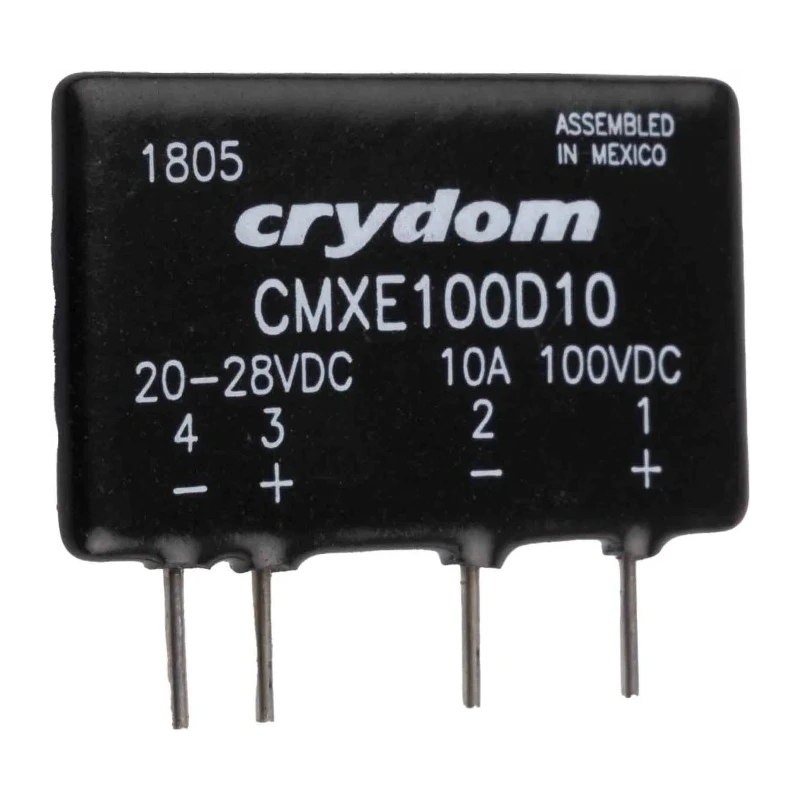

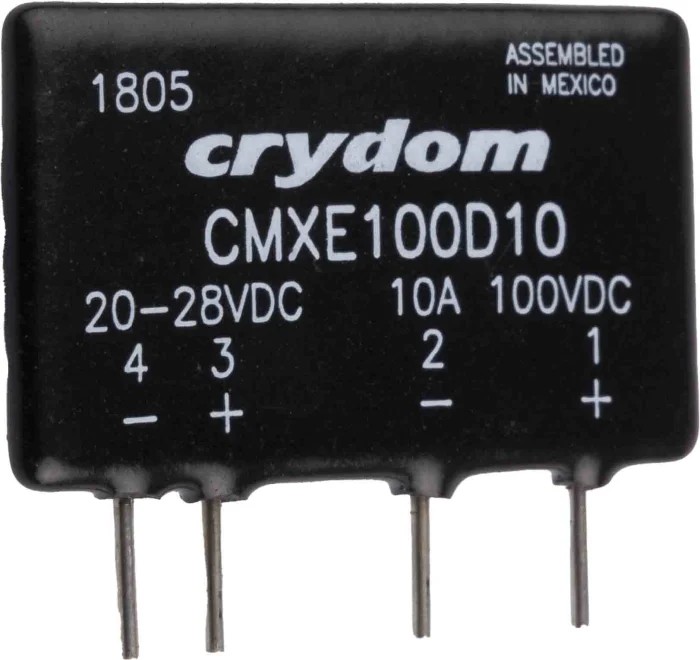

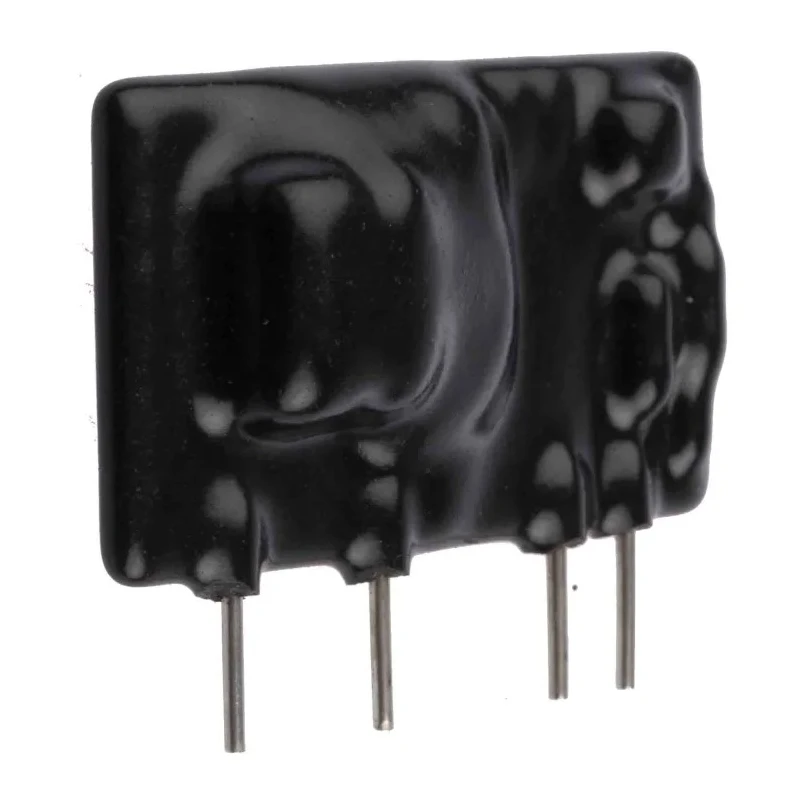

Crydom CMX Series Solid State Relay, 10A Load, PCB Mount, 100 V dc Load, 28V dc Control CMXE100D10

Crydom CMXE100D10 solid state relay (SSR) belongs to the CMX series offering reliable DC switching with a MOSFET output type and SIP-4 package suitable for PCB mounting. It supports a maximum load current of 10 Amperes and loads up to 100V DC voltage, controlled by a DC input from 20V up to 28V. This relay is designed for industrial applications requiring high reliability and fast switching, such as controlling solenoid valves, managing DC coil operations in contactors, and DC lighting controls within manufacturing, automation, and electrical systems.

The CMXE100D10 features extremely low on-state resistance which minimizes power dissipation and heat generation. Its compact SIP-4 package has through-hole terminals for easy insertion and stable mounting on printed circuit boards. The relay maintains efficient operation with an off-state leakage current of only 100μA and an input-output capacitance of 15pF, critical for signal integrity in sensitive control circuits.

Its operational temperature range spans from -30°C to +80°C, making it durable in harsh environments often found in industrial and manufacturing setups. The relay ensures surge current peaks up to 100 Amperes, allowing short bursts of high current during switching without damage.

The product is certified for RoHS compliance and carries CE and UL approvals, confirming respect for environmental standards and safety for electrical equipment.

Exact dimensions are 43.1mm in length, 7.6mm width, and 25.4mm height, facilitating compact design integration. Manufactured in Mexico, this SSR is a robust choice for industrial automation, HVAC controls, and electronic system manufacturers requiring dependable solid-state relay solutions.

Operates with a control voltage range of 20V to 28V DC. Supports a maximum load voltage of 100V DC and load current of 10 Amperes. Features a SIP-4 package with through-hole terminal type for easy PCB mounting. Functions as a SPST contact configuration suitable for DC switching.

Has an off-state leakage current of 100 microamperes and a capacitance of 15pF for efficient performance. Designed to operate in temperature ranges from -30°C to +80°C for industrial reliability. Compact dimensions of 43.1mm length, 7.6mm width, and 25.4mm height.

Surge current peak rating of 100A ensures robust switching capacity. Complies with RoHS, CE, and UL standards providing safety and environmental compliance. Manufactured in Mexico and ideal for applications such as solenoid valve control, DC coil driving, and DC lighting control.
