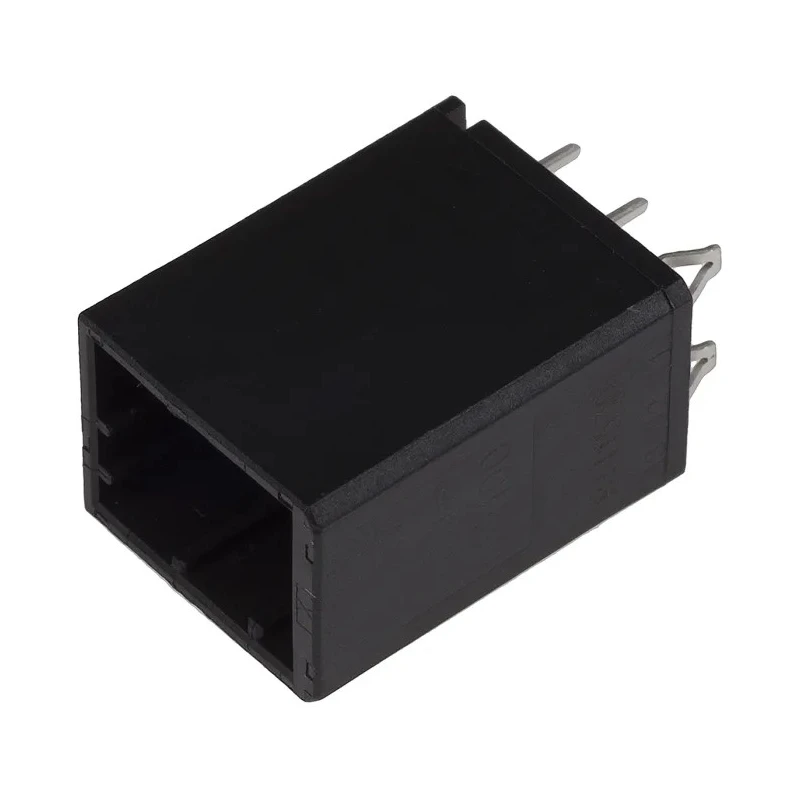

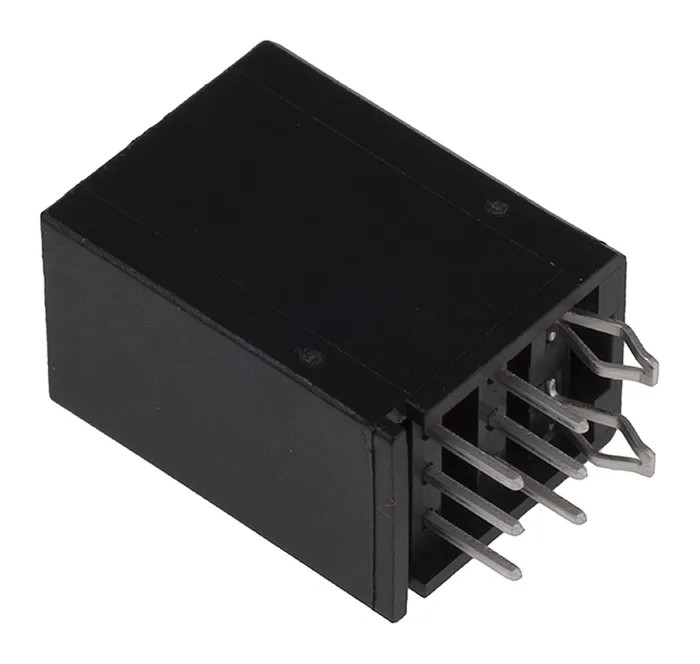

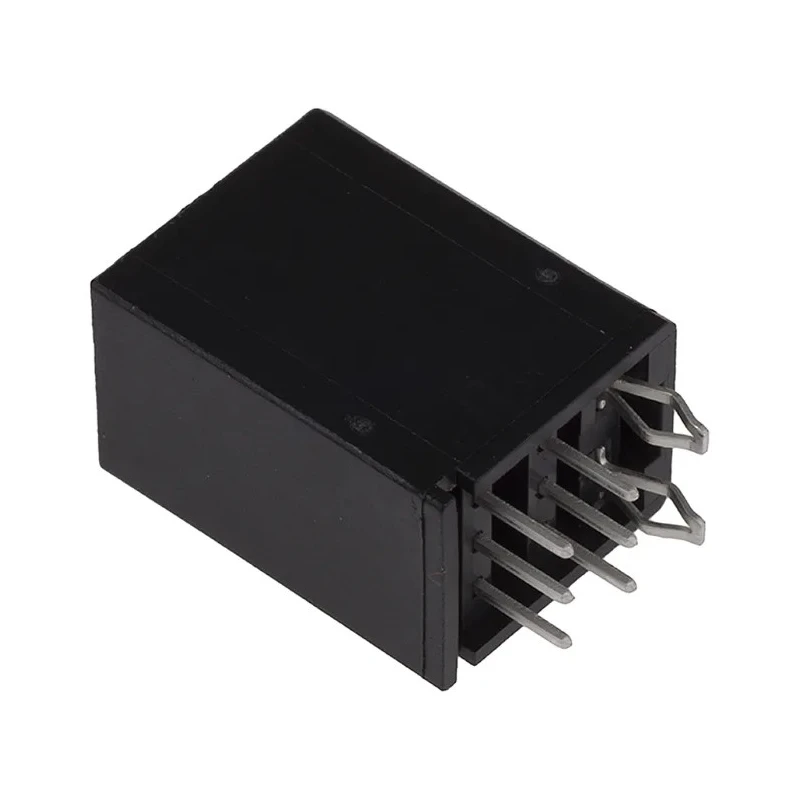

TE Connectivity Dynamic 2000 Series Straight Through Hole PCB Header, 6 Contacts, 2.5 mm Pitch, 2 Row, Shrouded 1318124-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 5A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | Dynamic 2000 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.5mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 720-1455PBrand: TE ConnectivityManufacturers Part No.: 1318124-1 |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- The connector features a 2.5 mm pitch and two rows for versatile layout configurations.
- Shrouded design enhances safety and protects contacts against accidental damage.
- Constructed from thermoplastic housing and copper alloy contacts plated with gold for durability.
- Rated for a maximum current of 5 A and voltage of 250 V for signal applications.
- Suitable for wire-to-board connections with through-hole mounting for secure PCB installation.
- Operates reliably in temperatures ranging from -55°C to 105°C.
- Male contact gender with solder termination type ensures secure and stable connections.
- Incorporates a keying system to prevent mis-mating for improved assembly accuracy.
Product Description
TE Connectivity 1318124-1 Dynamic 2000 Series Straight Through Hole PCB Header is designed for reliable and stable signal transmission in electronic applications. This connector series features a shrouded construction that safeguards the contacts and prevents accidental disconnections or damage during handling and operation.
The header includes 6 contacts arranged in 2 rows with a precise 2.5 mm pitch, making it suitable for dense PCB layouts requiring secure wire-to-board connections. The housing is made from durable thermoplastic material, providing electrical insulation and mechanical stability, while contacts of copper alloy with gold plating ensure excellent conductivity and corrosion resistance, contributing to long service life.
This PCB header supports a maximum current rating of 5 A and a voltage rating of 250 V, catering primarily to signal applications with reliable electrical performance. It is designed for through-hole mounting, providing a strong mechanical bond to printed circuit boards with recommended thickness of 1.6 mm.
The product operates safely across a broad temperature range from -55°C to 105°C, enabling usage in various industrial, commercial, and laboratory environments. The male contact gender and solder termination type facilitate easy and secure soldering processes. Additionally, the connector features a keying system to assure correct mating and prevent misalignment issues.
The Dynamic 2100 Headers include a tin-plated retention leg for enhanced mechanical stability on the PCB. The PCB solder tails are tin-plated, and the contact tabs have gold plating for improved electrical performance. This connector is widely used in industrial automation, electronic devices, instrumentation, telecommunications, and power distribution assemblies.
It is compatible with D-2100 series housings for complete connector assemblies.
Overall, the TE Connectivity Dynamic 2000 Series PCB Header 1318124-1 is a high-quality, robust component suitable for diverse electronic connector applications demanding precision, durability, and reliable performance.
Explore more PCB connectors and headers in the Electronics & Electricals category at EnvMart for quality and variety.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header is rated for a maximum current of 5 A and a voltage of 250 V, suitable for signal applications.
The connector features a 2.5 mm pitch and includes 6 contacts arranged in 2 rows.
The housing is made from thermoplastic material, while the contacts are composed of copper alloy with gold plating for improved conductivity and corrosion resistance.
It operates reliably in temperatures ranging from -55°C to 105°C, making it suitable for various environments.
This model is designed for through-hole mounting, providing a secure installation on printed circuit boards.
It features a solder termination type, which ensures secure and stable connections during assembly.
Yes, it incorporates a keying system to prevent mis-mating, enhancing assembly accuracy.
The contact gender for this header is male, designed for secure connections in wire-to-board applications.
The connector is manufactured in India.
Yes, it is compatible with D-2100 series housings for complete connector assemblies.
This model is widely used in industrial automation, electronic devices, instrumentation, telecommunications, and power distribution assemblies.
The orientation of this connector is straight, allowing for versatile layout configurations on PCBs.
