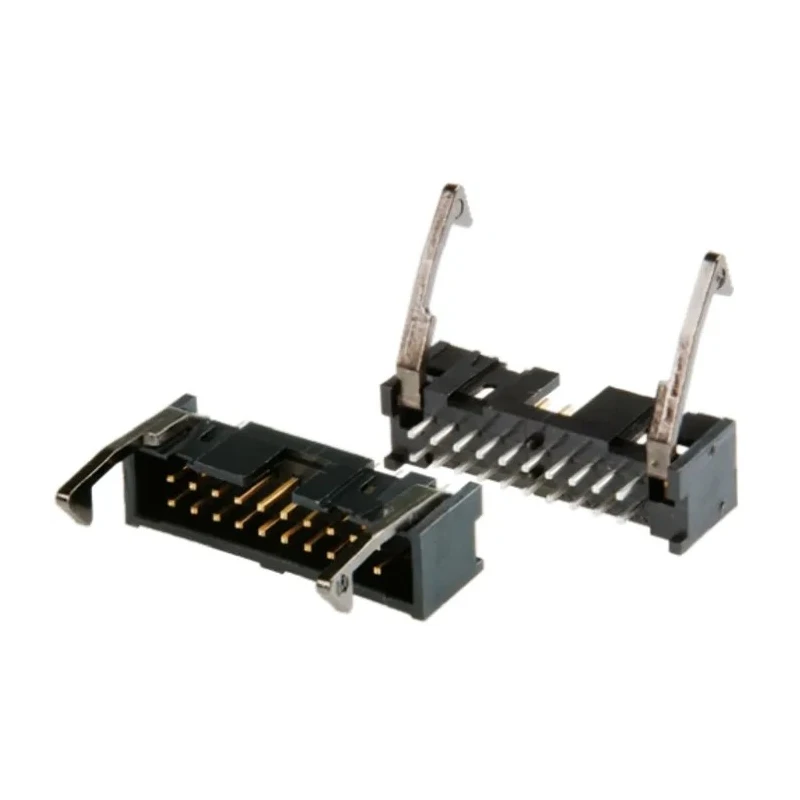

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 20 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 1761606-7
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | AMP-LATCH |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 719-8769PBrand: TE ConnectivityManufacturers Part No.: 1761606-7 |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Supports a current rating of 1A for low-power applications.
- Constructed with a polybutylene terephthalate housing for durability.
- Phosphor bronze contact material with gold plating ensures excellent conductivity and corrosion resistance.
- Designed for through-hole mounting with solder termination.
- Operates across a temperature range from -65°C to 105°C.
- Military and center polarization provide secure mating and alignment.
- Features ejector latches for easy connection and removal.
- Low profile design suitable for compact PCB layouts.
Product Description
TE Connectivity 1761606-7 AMP-LATCH Series Straight Through Hole PCB Header offers a reliable wire-to-board connection solution with 20 male contacts arranged in two rows at a 2.54 mm pitch. Its polybutylene terephthalate housing and phosphor bronze gold-plated contacts combine durability and excellent electrical performance.
This shrouded, straight orientation PCB header is designed for through-hole solder mounting and supports a continuous current of 1A at 250V, operating safely in environments with temperatures ranging from -65°C to 105°C. The header’s military and center polarization features ensure proper alignment and secure connections, enhanced by ejector latches that allow for easy mating and removal from IDC ribbon cable receptacles.
The low profile and robust design make this connector suitable for demanding industrial, commercial, laboratory, and electronic equipment applications such as PCs, medical devices, networking hardware, storage systems, industrial controls, appliances, and electrical testing instruments.
Current rating of 1A for low power circuit applications. Durable polybutylene terephthalate housing material. Phosphor bronze contacts plated with gold for optimal conductivity and corrosion resistance. Through-hole mount with solder termination ensures reliable mechanical and electrical connection.
Operating temperature range from -65°C to 105°C for diverse environments. Military and center polarization prevents misalignment and enhances secure mating. Ejector latches provide secure connection and ease of disconnection.
Low profile design suitable for compact device layouts. Widely applicable across electronics, industrial, medical, and commercial equipment.
Set contains 1 piece of TE Connectivity AMP-LATCH Series PCB Header model 1761606-7 with 20 contacts at 2.54 mm pitch, shrouded, straight through hole type, suitable for wire-to-board applications.
Explore EnvMart for a wide range of TE Connectivity connectors and PCB Headers to find solutions tailored to your industrial and electronic manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a current rating of 1A for low-power applications.
It can handle a maximum voltage of 250V.
The contacts are arranged at a pitch of 2.54 mm.
It operates safely in environments with temperatures ranging from -65°C to 105°C.
The housing is made of polybutylene terephthalate, and the contacts are made of phosphor bronze with gold plating.
This model features 20 male contacts arranged in two rows.
It is designed for through-hole mounting with solder termination.
Yes, it includes military and center polarization features to prevent misalignment and enhance secure mating, along with ejector latches for easy connection and removal.
The orientation of this header is straight.
It is suitable for various applications including PCs, medical devices, networking hardware, storage systems, industrial controls, appliances, and electrical testing instruments.
It features a low profile design suitable for compact PCB layouts.
The country of origin for this PCB header is India.
