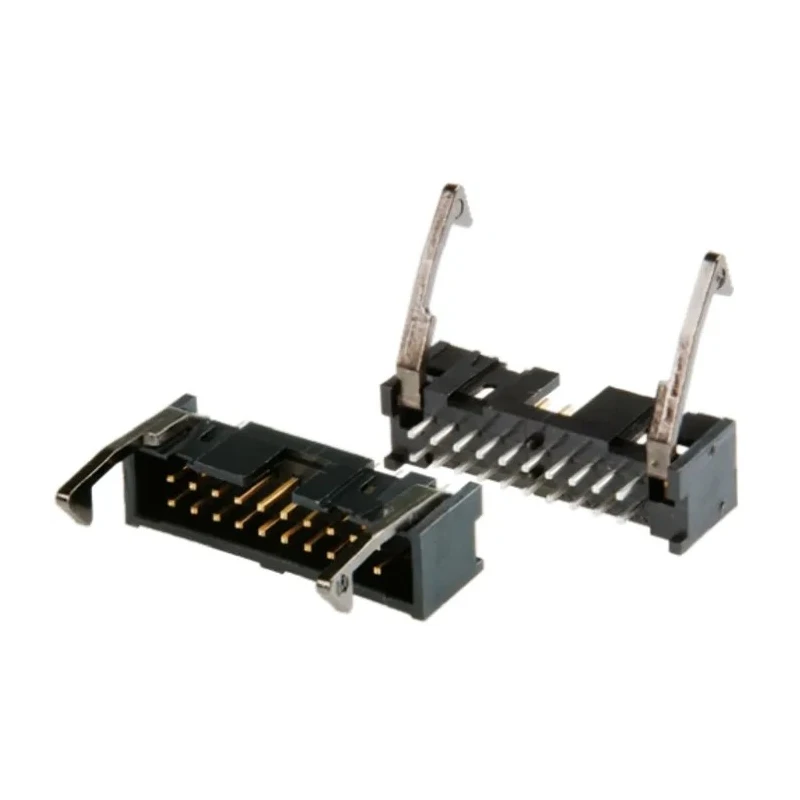

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 20 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 1761606-7

TE Connectivity 1761606-7 AMP-LATCH Series Straight Through Hole PCB Header is a 20-contact, 2-row connector designed for high-reliability wire-to-board interfacing. With a 2.54 mm pitch and a shrouded housing made of Polybutylene Terephthalate, this PCB header supports a current of 1A and a voltage rating of 250V. The male contacts are crafted from phosphor bronze and plated with gold to ensure excellent conductivity and corrosion resistance. Its straight orientation and through-hole mounting provide a stable mechanical and electrical connection in printed circuit board assemblies.

This connector series features military and center polarization along with ejector latches that secure the mating IDC ribbon cable connectors. The latch options include long or short variants for compatibility with connectors that may or may not have strain relief. The low-profile design allows for compact PCB layouts while maintaining robust connection security.

Operating reliably across a temperature range of -65°C to 105°C, the 1761606-7 is ideal for various industrial and commercial applications, including computing equipment, business machines, medical instrumentation, networking hardware, storage devices, and industrial control systems. This connector’s wire-to-board configuration makes it suitable for use in appliances and electrical testing setups requiring dependable cable connections.

Features a shrouded design with phosphor bronze male contacts plated with gold. Supports a current rating of 1A and operating voltage of 250V for reliable performance. Constructed with durable Polybutylene Terephthalate housing suitable for through-hole mounting.

Incorporates ejector latches for secure mating and easy removal of IDC ribbon cable connectors. Designed for applications in PCs, business equipment, medical devices, storage, networking, and industrial controls. Wide temperature range operation from -65°C to 105°C ensures versatility in diverse environments.

Low profile design with military and center polarization for enhanced connection security.

Set contains 1 Pc TE Connectivity AMP-LATCH PCB Header 1761606-7. Explore more PCB headers and connectors for your industrial and electronic assembly needs in the PCB Headers category at EnvMart.
