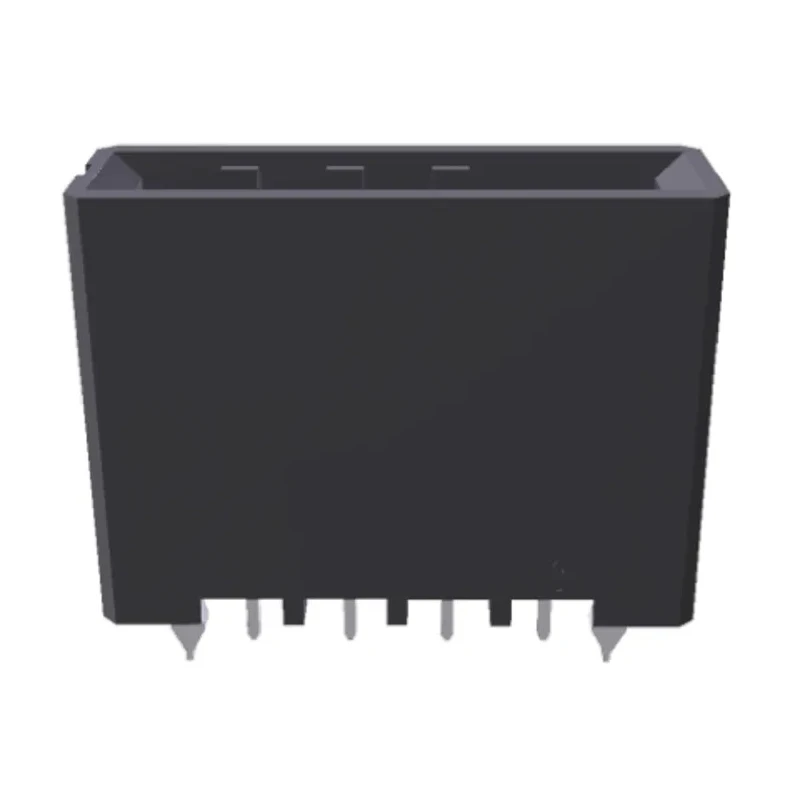

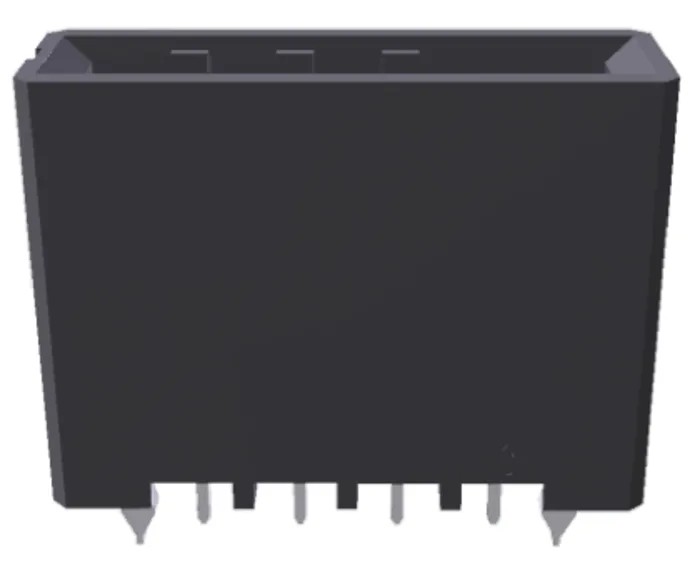

TE Connectivity Dynamic 3000 Series Straight Through Hole PCB Header, 4 Contacts, 5.08 mm Pitch, 1 Row, Shrouded 1-917338-5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 15A |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Copper Alloy |
| Series | Dynamic 3000 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 719-5681Brand: TE ConnectivityManufacturers Part No.: 1-917338-5 |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features a 5.08 mm pitch and 1 row configuration for reliable circuit connections.
- Shrouded design ensures contact protection and secure mating.
- Constructed with glass filled polyester housing for durability.
- Copper alloy contacts plated with tin provide excellent conductivity and corrosion resistance.
- Suitable for through hole mounting and wire-to-board connector systems.
- Operating temperature range from -55°C to 105°C supports diverse environmental conditions.
- Termination type is solder for stable electrical connection.
- Designed for male contact gender with straight orientation.
Product Description
TE Connectivity 1-917338-5 Dynamic 3000 Series Straight Through Hole PCB Header features a 4-contact, 1-row, 5.08 mm pitch layout engineered for robust wire-to-board connectivity in various industrial and electronic applications.
This PCB header is constructed with a durable glass filled polyester housing and male copper alloy contacts plated with tin to ensure reliable conductivity and long service life. It is designed for through hole mounting, providing mechanical stability on PCBs with an optimal thickness of 1.0 to 1.6 mm.
Operating voltage up to 600V and current rating of 15A make this header suitable for demanding power and electronic component interconnections. The shrouded design adds additional protection to the contacts, preventing accidental shorts and damage during assembly and operation.
The product can operate reliably across a wide temperature range from -55°C to 105°C, allowing use in harsh environments including industrial, manufacturing, automotive, and power distribution applications.
The solder termination type ensures a secure and stable electrical connection, enhancing performance and durability of the PCB assembly.
TE Connectivity’s Dynamic 3000 Series PCBs provide efficient and effective wire-to-board solutions for customers requiring high reliability and performance in their electronic designs.
Features a 5.08 mm pitch and 1 row with 4 contacts for secure electrical connections. Shrouded housing promotes safety and durability. Copper alloy contacts are plated with tin for excellent conductivity. Suitable for through hole mounting on PCBs 1.0 to 1.6 mm thick.
Rated for 15A current and 600V voltage for robust power handling. Operates between -55°C and 105°C for versatile environmental usage. Ideal for electronic components, power connectors, and industrial equipment. Explore more PCB Headers and connectors at EnvMart to find components best suited for your electronic manufacturing and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB header is 5.08 mm, which facilitates secure electrical connections.
This model has a current rating of 15A, making it suitable for demanding power applications.
The maximum operating voltage for this PCB header is 600V, allowing it to handle high voltage applications.
It features a glass filled polyester housing and copper alloy contacts plated with tin for excellent conductivity and corrosion resistance.
This unit operates reliably within a temperature range of -55°C to 105°C, suitable for various environmental conditions.
This PCB header has 4 contacts, designed for effective wire-to-board connectivity.
It uses a solder termination type, ensuring a stable and secure electrical connection.
This model is designed for through hole mounting, providing mechanical stability on PCBs.
The contact gender of this connector is male, which is standard for many PCB applications.
This PCB header is shrouded, which provides additional protection to the contacts against accidental shorts.
It is suitable for PCBs with an optimal thickness of 1.0 to 1.6 mm, ensuring proper fit and function.
This model is suitable for various industrial and electronic applications, including power connectors and automotive uses.
