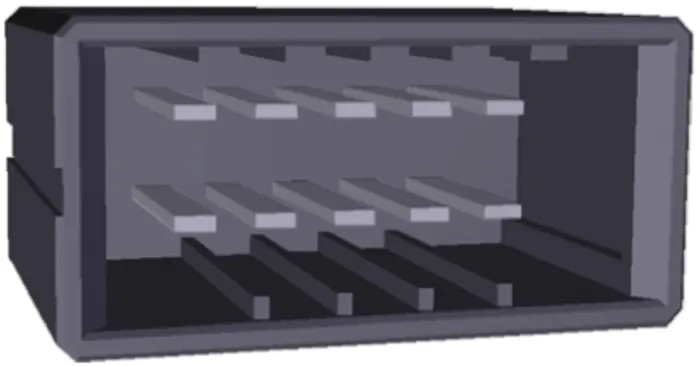

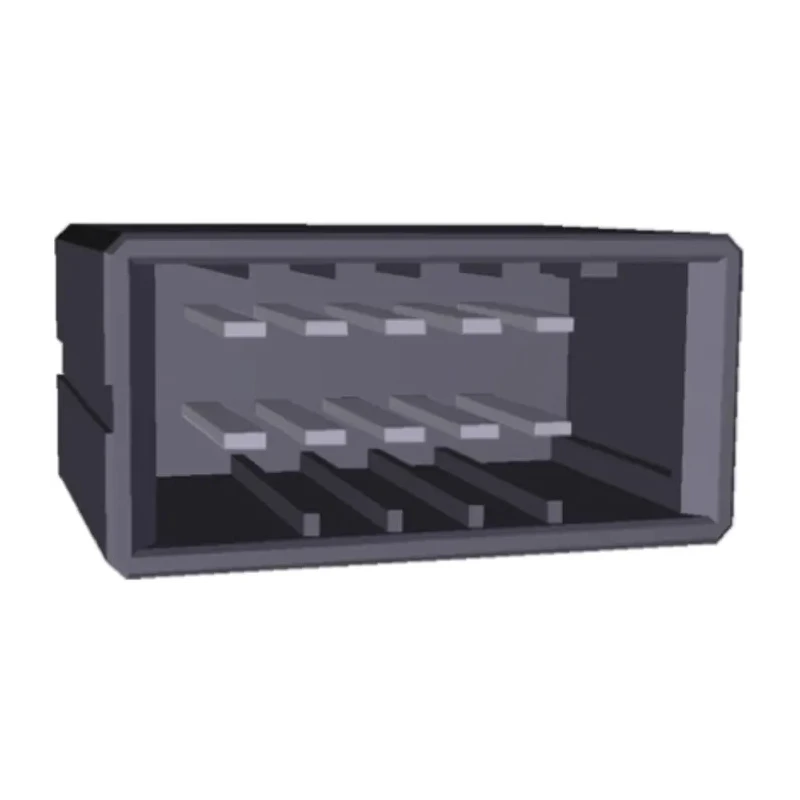

TE Connectivity Dynamic 3000 Series Straight Through Hole PCB Header, 10 Contact, 5.08 mm Pitch, 2 Row, Shrouded 1-917657-5

TE Connectivity 1-917657-5 Dynamic 3000 Series Straight Through Hole PCB Header is designed as a high-quality, shrouded wire-to-board connector suitable for demanding electronics applications. It features 10 male contacts arranged in two rows with a precise 5.08 mm pitch, supporting current loads up to 15 amperes and voltage ratings of 600 volts.

The connector housing is made from glass filled polyester, providing excellent durability and electrical insulation. Contacts are copper alloy plated with tin, ensuring reliable conductivity and corrosion resistance under various operating conditions.

Designed for through hole solder termination, this PCB header ensures secure and stable mounting on printed circuit boards with recommended thicknesses from 1.0 to 1.6 mm. The tin plated retention legs enhance mechanical stability during assembly and operation.

Operating temperature ranges from -55°C to 105°C, making it suitable for various industrial and electronic product environments. The shrouded design protects the contacts and ensures accurate mating with compatible connectors.

The Dynamic 3000 Series connectors are widely used in electronic manufacturing, industrial equipment, and other applications requiring reliable, high-performance PCB connection systems. This specific model, 1-917657-5, offers an efficient and robust solution for wire-to-board connections.

This PCB header supports a current rating of 15 amperes and voltage up to 600 volts. Features a glass filled polyester housing for enhanced durability and performance. Designed with two rows and shrouded male contacts for reliable wire-to-board connections.

Constructed with copper alloy contacts plated with tin for corrosion resistance. Operates reliably within a temperature range from -55°C to 105°C. Termination is through hole solder type for secure PCB mounting. The header includes a tin plated retention leg for increased mechanical stability.

Recommended PCB thickness for mounting is between 1.0 to 1.6 mm. Compatible with D-3200 series housings for dynamic connector solutions. Ideal for industrial, electronics assembly, and manufacturing applications requiring robust PCB connectors.
