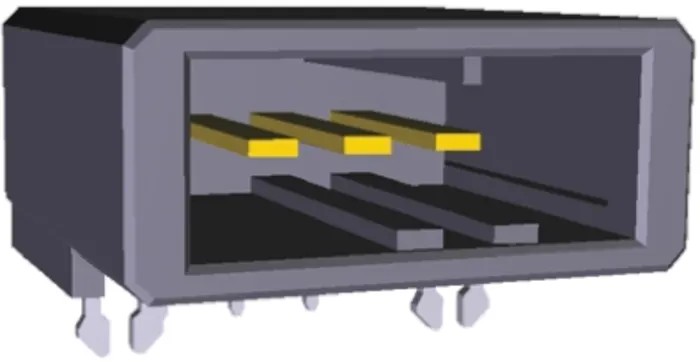

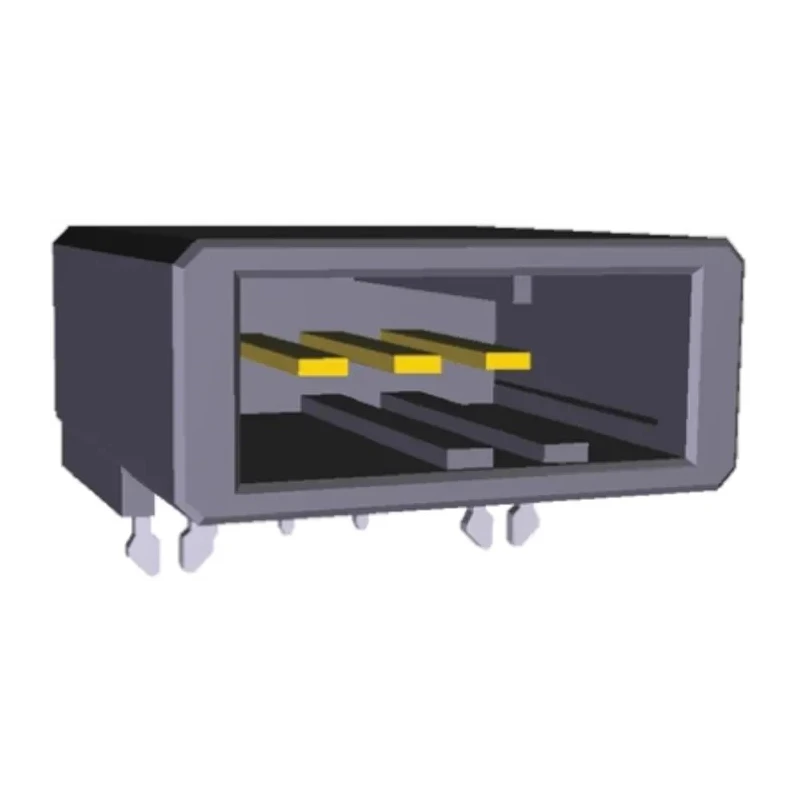

TE Connectivity Dynamic 3000 Series Right Angle Through Hole PCB Header 3 Contact 3.81 mm Pitch 1 Row Shrouded 1-178293-2
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 12A |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Copper Alloy |
| Series | Dynamic 3000 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 3.81mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 719-5335PBrand: TE ConnectivityManufacturers Part No.: 1-178293-2 |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Designed for right angle mounting on PCBs with through-hole soldering.
- Features 3 male contacts arranged in a single row with 3.81 mm pitch.
- Housing made from durable glass-filled polyester for insulation.
- Gold-plated copper alloy contacts provide excellent conductivity.
- Rated for 12 A current at 250 V voltage for power applications.
- Operates within -55°C to 105°C temperature range.
- Shrouded design ensures secure contact mating and protection.
- Recommended PCB thickness from 1.0 to 1.6 mm for stability.
Product Description
TE Connectivity 1-178293-2 Dynamic 3000 Series Right Angle Through Hole PCB Header is engineered for high-performance wire-to-board connections in electronics applications. This PCB header features 3 male contacts arranged in a single row with a 3.81 mm pitch, optimized for right angle mounting through the PCB for enhanced mechanical stability.
The housing is constructed from glass-filled polyester, offering excellent electrical insulation and durability under harsh industrial conditions. The contacts are crafted from copper alloy and plated with gold to provide superior conductivity and corrosion resistance. Termination is by solder, supporting reliable and robust PCB connections.
This product operates within a broad temperature range from -55°C to 105°C and supports voltages up to 250 V with a current rating of 12 A, suitable for power connector requirements in commercial and industrial environments. The shrouded design adds an additional layer of contact protection, reducing the risk of damage or improper mating.
The Dynamic 3000 Series also features a tin-plated retention leg and PCB solder tail to improve stability during assembly. The recommended PCB thickness for these headers is between 1.0 and 1.6 mm to ensure proper mounting and electrical performance. These headers are widely used in power connectors, electronic devices, and manufacturing automation.
Designed for right angle mounting on PCBs with through-hole soldering. 3 male contacts in a single row with 3.81 mm pitch. Housing made from glass-filled polyester ensures durability. Gold-plated copper alloy contacts for high conductivity.
Rated 12 A current at 250 V voltage for power applications. Operating temperature range from -55°C to 105°C. Shrouded design provides secure mating and protection. Suitable for industrial, manufacturing, and electronic applications.
Set contains one TE Connectivity Dynamic 3000 Series PCB header with model number 1-178293-2. Ideal for professional PCB design and industrial electronics integration. Explore EnvMart for a wide range of PCB connectors and electronic components to meet your technical needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 12 A and a voltage of 250 V, making it suitable for power applications.
The housing is made from glass-filled polyester, while the contacts are crafted from copper alloy and gold-plated for enhanced conductivity.
It features a pitch of 3.81 mm and has 3 male contacts arranged in a single row.
The recommended PCB thickness for proper mounting and electrical performance is between 1.0 mm and 1.6 mm.
This PCB header operates within a temperature range of -55°C to 105°C.
Termination is achieved by solder, which supports reliable and robust PCB connections.
It uses a wire-to-board connector system, designed for high-performance wire-to-board connections.
The shrouded design provides secure contact mating and additional protection against damage or improper mating.
This model is designed for right angle mounting on PCBs with through-hole soldering.
The country of origin for this PCB header is Japan.
It is widely used in power connectors, electronic devices, and manufacturing automation.
The contacts are gold-plated, which provides superior conductivity and corrosion resistance.
