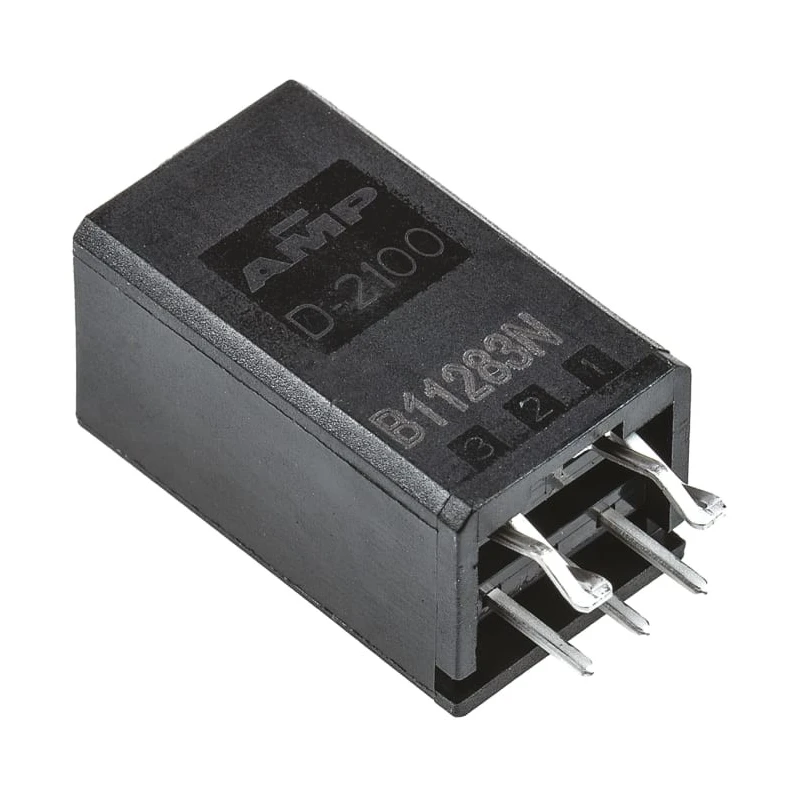

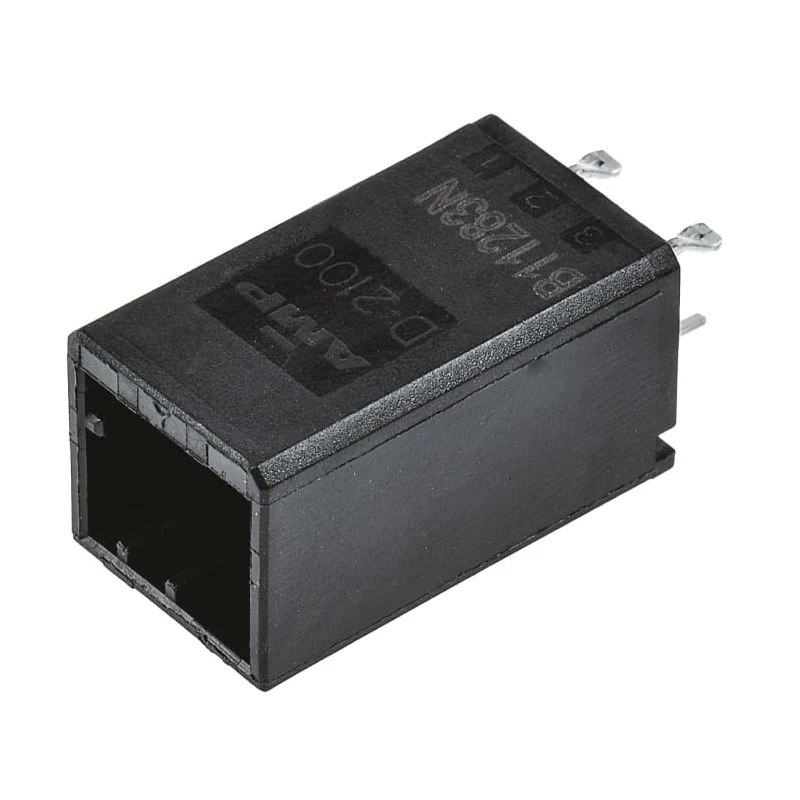

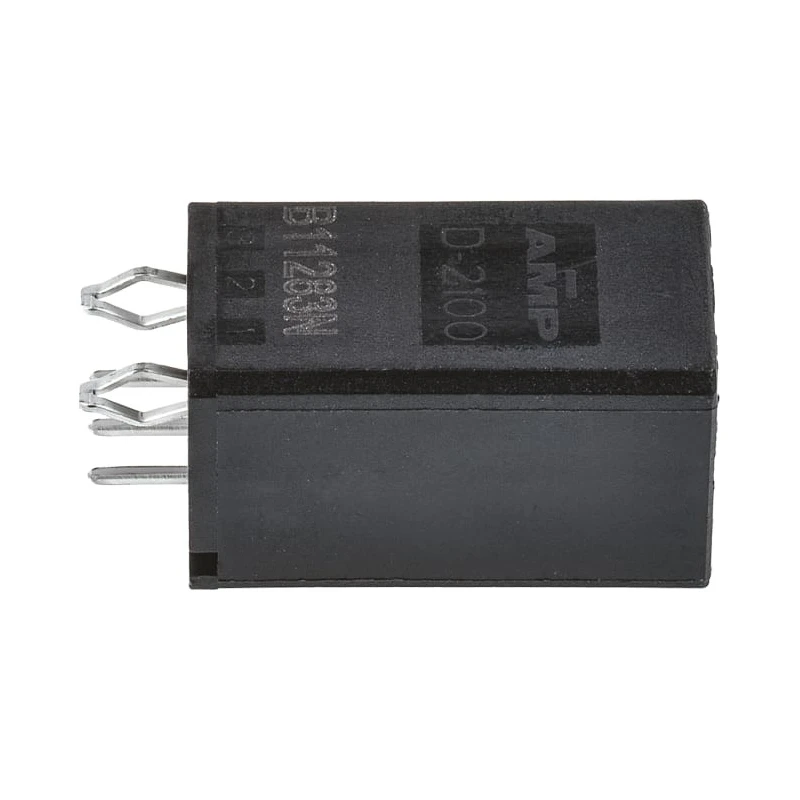

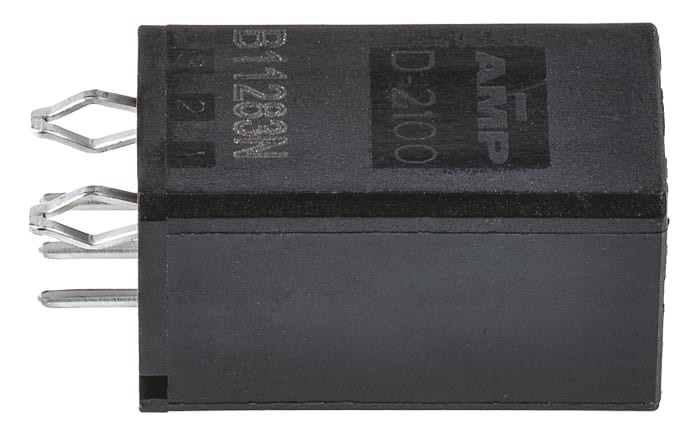

TE Connectivity Dynamic 2000 Series Straight Through Hole PCB Header, 3 Contact(s), 2.5 mm Pitch, 1 Row, Shrouded 1318123-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 5A |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Copper Alloy |
| Series | Dynamic 2000 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 719-5619Brand: TE ConnectivityManufacturers Part No.: 1318123-2 |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Made with glass filled polyester housing for durability and high performance.
- Each contact is made from copper alloy with gold plating for excellent conductivity.
- Rated for 5 A current and 250 V maximum voltage for diverse applications.
- Shrouded design enhances protection and prevents mis-mating during assembly.
- Solder termination ensures secure and stable mounting on PCB boards.
- Operating temperature range from -55°C up to 105°C supports varied environments.
- Compatible with 1.6 mm PCB thickness as recommended for this series.
- Includes a keying system to avoid incorrect connections.
Product Description
TE Connectivity 1318123-2 is a Dynamic 2000 Series Straight Through Hole PCB Header designed for reliable wire-to-board electrical connections. Featuring 3 male contacts arranged in a single row with a 2.5 mm pitch, this shrouded header is engineered to meet demanding industrial and electronic component requirements with a maximum current rating of 5 A and a voltage rating up to 250 V.
The header housing is made from robust glass filled polyester material, providing excellent mechanical strength and durability essential for continuous operation in industrial and commercial environments. The copper alloy contacts are gold plated to ensure superior conductivity and corrosion resistance over long-term use.
This connector employs a solder termination type ensuring secure installation on printed circuit boards, intended for PCBs with recommended thickness of 1.6 mm. Its shrouded design incorporates a keying system that prevents incorrect mating, which enhances assembly reliability and safety. The header supports minimum operating temperatures as low as -55°C and maximum operating temperatures up to 105°C, making it suitable for harsh operating conditions in sectors such as power connectors, instrumentation, and telecommunications.
Made with glass filled polyester for enhanced durability and performance. Gold plated copper alloy contacts for excellent electrical conductivity. Rated for 5 A current and 250 V voltage for versatile applications. Shrouded housing with keying system to prevent mis-mating.
Solder termination for secure PCB connection. Wide operating temperature range from -55°C to 105°C. Designed for 1.6 mm thick PCBs. Single row, 3 contact arrangement simplifies board layout. Ideal for industrial, electronic components, power connectors, and manufacturing uses.
This TE Connectivity Dynamic 2000 Series PCB header is an essential component for electronic manufacturing, industrial automation, and power distribution systems requiring dependable and high-quality connectors. Explore more TE Connectivity products and PCB Headers at EnvMart to suit various technical needs and applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this PCB header is 5 A.
This header has a voltage rating of 250 V.
The housing is made from glass filled polyester, while the contacts are made from copper alloy with gold plating.
The pitch size of the contacts is 2.5 mm.
This PCB header features 3 male contacts arranged in a single row.
It employs a solder termination type for secure installation on printed circuit boards.
The recommended PCB thickness for this header is 1.6 mm.
The operating temperature range is from -55°C to 105°C.
Yes, it includes a keying system to prevent incorrect connections during assembly.
This header is designed as a wire-to-board connector system.
The country of origin for this product is India.
This header features a shrouded design that enhances protection and prevents mis-mating.
