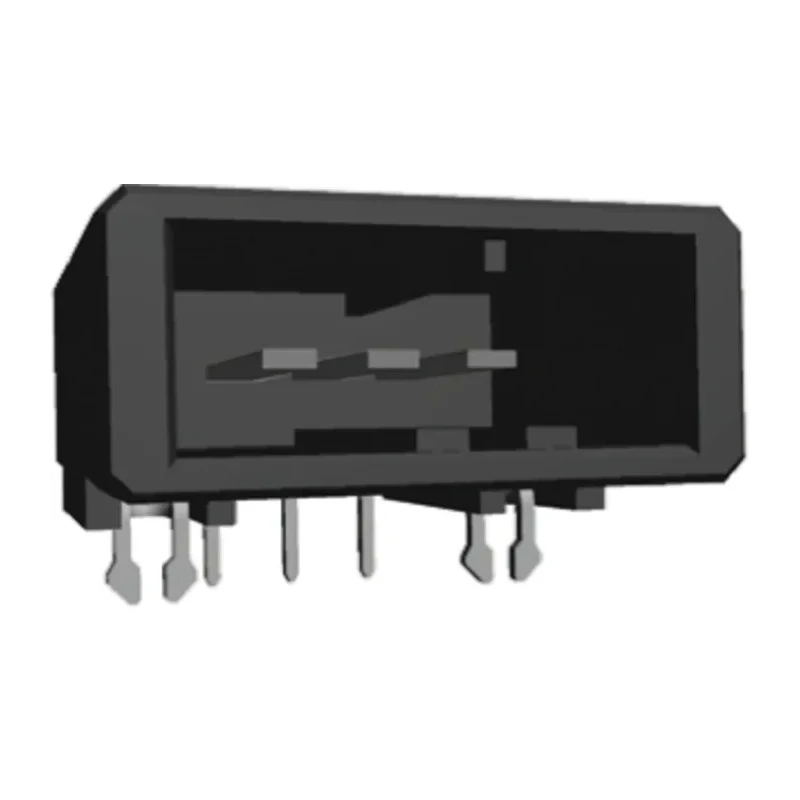

TE Connectivity Dynamic 3000 Series Right Angle Through Hole PCB Header, 3 Contacts, 3.81 mm Pitch, 1 Row 1-178293-5
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 12A |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Copper Alloy |
| Series | Dynamic 3000 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 3.81mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 719-5338Brand: TE ConnectivityManufacturers Part No.: 1-178293-5 |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Constructed with glass filled polyester housing for durability.
- Rated for 12A current and operating voltage up to 250V.
- Features tin-plated copper alloy contacts with solder termination.
- Designed for PCB thickness between 1.0 to 1.6 mm.
- Operating temperature range from -55°C to 105°C.
- Provides stable retention with tin plated retention leg.
- Male contact gender with one row and right angle orientation.
- Suitable for industrial PCB connection applications.
Product Description
TE Connectivity 1-178293-5 Dynamic 3000 Series Right Angle Through Hole PCB Header is engineered for reliable wire-to-board connections in industrial, commercial, and electronic manufacturing environments. It features a durable shrouded design and is constructed with glass filled polyester housing to ensure robustness and thermal stability.
This model provides 3 male contacts arranged in a single row with a standard 3.81 mm pitch, optimized for a PCB thickness between 1.0 and 1.6 mm. The contacts are made from copper alloy with tin plating and solder termination to guarantee excellent electrical conductivity and ease of assembly.
Rated for 12A current and 250V voltage, this header supports demanding power requirements while maintaining safety and performance. The operating temperature range from -55°C to 105°C ensures suitability across diverse environmental conditions.
The Dynamic 3000 Series includes a tin plated retention leg for increased mechanical stability on the PCB, minimizing the risk of disconnection or mechanical failure. This right angle PCB header simplifies routing and assembly in densely packed electronic assemblies.
Durable glass filled polyester housing with shrouded design. 3 contacts in a single row, 3.81 mm pitch for standard PCB layouts. Tin plated copper alloy contacts and solder termination ensure reliable connectivity. Rated for 12A current and 250V voltage operation.
Operating temperature range from -55°C to 105°C for varied applications. Tin plated retention leg for enhanced mechanical stability. Right angle orientation facilitates compact PCB designs. Ideal for industrial, laboratory, manufacturing, and power connector applications.
The set is produced in China and conforms to Dynamic 3000 series specifications without specific certifications. It is a high-quality component suitable for integration in electronic assemblies requiring standard pitch and robust connection interfaces.
Explore more TE Connectivity products and PCB Headers on EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 12A.
It has a maximum operating voltage of 250V.
The contacts are arranged with a standard pitch of 3.81 mm.
The housing is made of glass filled polyester, and the contacts are copper alloy with tin plating.
It operates within a temperature range of -55°C to 105°C.
This model features 3 male contacts arranged in a single row.
It uses solder termination for the contacts.
This connector has a right angle orientation.
It is designed for through hole mounting on PCBs.
Yes, it includes a tin plated retention leg for enhanced mechanical stability.
It is suitable for industrial, commercial, and electronic manufacturing applications requiring reliable wire-to-board connections.
This PCB header is produced in China.
