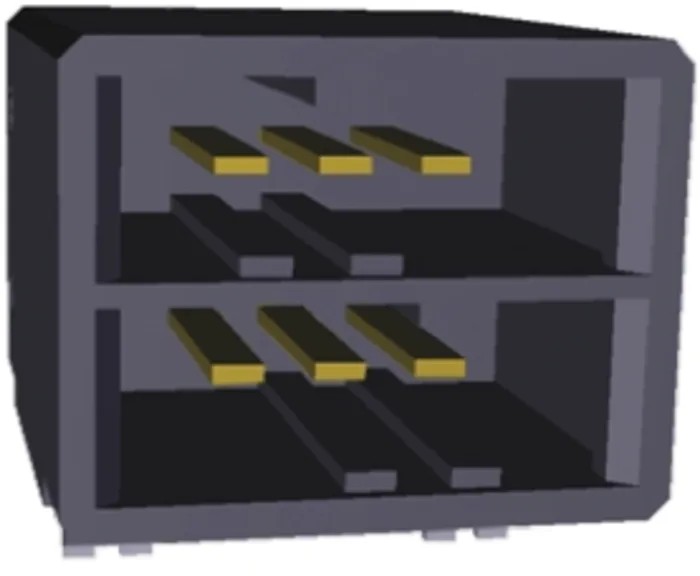

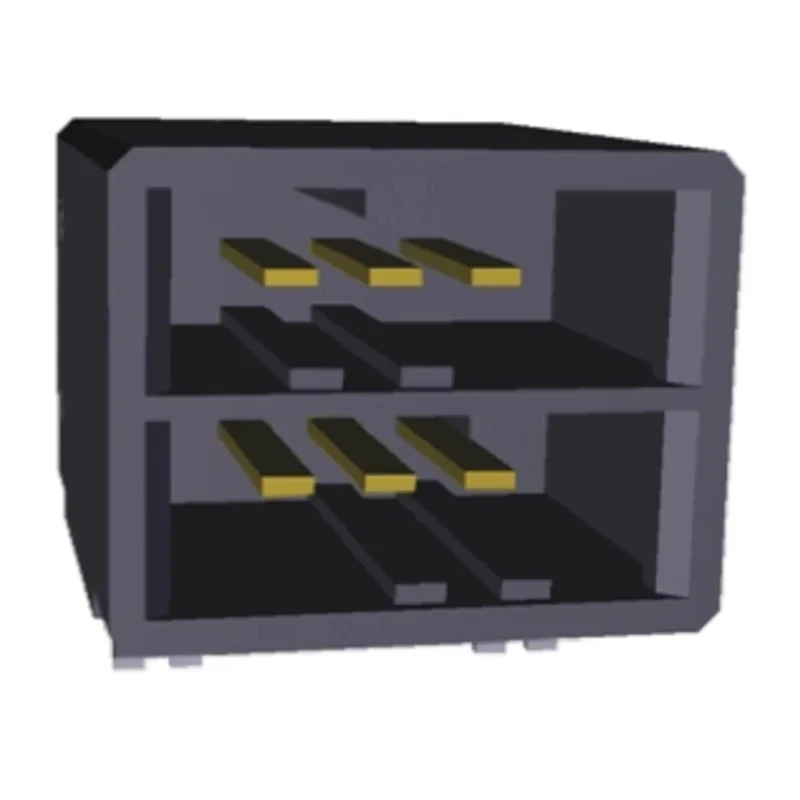

TE Connectivity Dynamic 3000 Series Right Angle Through Hole PCB Header, 6 Contacts, 3.81 mm Pitch, 2 Row 1-178137-2

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Dynamic 3000 Series Right Angle Through Hole PCB Header, 6 Contacts, 3.81 mm Pitch, 2 Row 1-178137-2

Name: TE Connectivity Dynamic 3000 Series Right Angle Through Hole PCB Header, 6 Contacts, 3.81 mm Pitch, 2 Row 1-178137-2
Brand: TE Connectivity
SKU: 358671
Price: 7.06 USD
Availability: InStock



Category PCB Headers Brand TE Connectivity Condition New

Specifications

Country of Origin	Japan
Voltage	250V
Brand	TE Connectivity
Orientation	Right Angle
Current	8A
Mount Type	Through Hole
Housing Material	Glass Filled Polyester
Contact Material	Copper Alloy
Series	Dynamic 3000
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	3.81mm
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	719-5439PBrand: TE ConnectivityManufacturers Part No.: 1-178137-2
Contact Plating	Gold
Number of Contacts	6
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

This connector features a shrouded design with 2 rows for enhanced protection and stability.
Contacts are made from copper alloy with gold plating ensuring reliable electrical performance.
The housing is constructed from glass filled polyester for durability and insulation.
Supports a maximum voltage of 250 V and current rating of 8 A for robust applications.
Recommended for use with PCB thickness of 1.0 to 1.6 mm in industrial and electronic applications.
Operating temperature ranges from -55°C to 105°C ensuring suitability in harsh environments.
Termination is by solder with male contact gender for wire-to-board connections.
Manufactured to high standards in Japan, ensuring quality and reliability.

Product Description

TE Connectivity 1-178137-2 Dynamic 3000 Series PCB Header is a high-quality right angle through hole connector designed for electronic and industrial power connector applications. It features 6 contacts arranged in 2 rows with a 3.81 mm pitch. The shrouded housing made of glass filled polyester provides mechanical integrity and environmental protection. The contact pins are copper alloy with gold plating for reliable signal conductivity and corrosion resistance.

Rated for 8 A current and 250 V voltage, this connector suits demanding electronic component assemblies including power and signal boards. Its solder termination type and male contact gender facilitate secure wire-to-board installation. The Dynamic D-3100 Series Headers incorporate tin plated retention legs for enhanced stability during PCB mounting and accommodate PCB thickness ranging from 1.0 to 1.6 mm.

The operating temperature range of -55°C to 105°C allows usage in diverse environments from industrial automation, manufacturing equipment, to electronic prototyping. Manufactured in Japan, the product assures superior quality and compliance with TE Connectivity's renowned standards.

Applications extend to electronics components, power distribution connectors, and PCB interfacing units in construction, laboratory instrumentation, and commercial electronic systems.

This connector features a shrouded design with 2 rows for enhanced protection and stability. Contacts are made from copper alloy with gold plating ensuring reliable electrical performance. The housing is constructed from glass filled polyester for durability and insulation.

Supports a maximum voltage of 250 V and current rating of 8 A for robust applications. Recommended for use with PCB thickness of 1.0 to 1.6 mm in industrial and electronic applications. Operating temperature ranges from -55°C to 105°C ensuring suitability in harsh environments.

Termination is by solder with male contact gender for wire-to-board connections. Manufactured to high standards in Japan, ensuring quality and reliability. Explore the Electronics & Electricals category for other reliable PCB connectors and power connectors suitable for a variety of industry needs.

Explore more products in our PCB Headers category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model supports a maximum voltage of 250 V and a current rating of 8 A, making it suitable for robust applications.

It features a pitch of 3.81 mm and includes 6 contacts arranged in 2 rows.

The housing is made from glass filled polyester, while the contacts are constructed from copper alloy with gold plating for reliable electrical performance.

The operating temperature ranges from -55°C to 105°C, allowing it to function in diverse environments.

This unit employs solder termination with a male contact gender for secure wire-to-board connections.

It is recommended for use with PCB thicknesses ranging from 1.0 to 1.6 mm.

This connector is manufactured in Japan, ensuring high standards of quality and reliability.

It is suitable for use in electronic components, power distribution connectors, and PCB interfacing units in various industries.

This model features a right angle orientation, which can be advantageous for space-constrained applications.

Yes, it features a shrouded design that enhances protection and stability during use.

The contacts are plated with gold, which helps ensure reliable electrical performance and corrosion resistance.

It utilizes a wire-to-board connector system, facilitating effective connections between wires and PCB.
