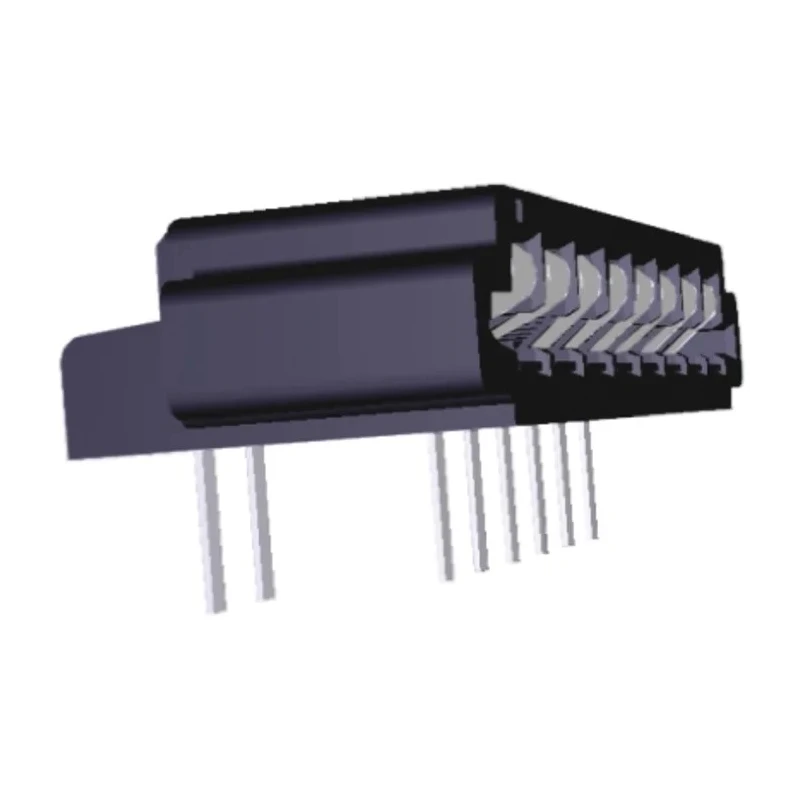

TE Connectivity Trio-Mate 2.54 mm Pitch 6 Way Right Angle Female FPC Connector Through Hole Solder Termination 5-487508-5
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | Trio-Mate |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | FFC |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-8693PBrand: TE ConnectivityManufacturers Part No.: 5-487508-5 |
| Contact Plating | Tin over Copper |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | LIF |
Key Features
- Features 6 contact points with a 2.54 mm pitch for precise connectivity.
- Utilizes phosphor bronze contact material with tin over copper plating for durability.
- Right angle orientation and through hole mount type support secure PCB integration.
- Suitable for cable thickness ranging from 0.13 to 0.38 mm, reusable up to 25 times with the same cable.
- Operates reliably within a temperature range of -55°C to 105°C.
- Housing is made of UL 94V-0 black polyethylene terephthalate for flame resistance.
- Low insertion force (LIF) ensures easy and secure connection of FFC and FPC cables.
- Complies with Trio-Mate series specifications for flexible film connectors.
Product Description
TE Connectivity 5-487508-5 Trio-Mate 2.54 mm Pitch 6 Way Right Angle Female FPC Connector is designed for robust and reliable connection of flexible flat cable (FFC) or flexible printed circuit (FPC) film in electronic applications.
This connector features 6 contacts arranged in a single row with a standard 2.54 mm centerline pitch, compatible with cables 0.13 to 0.38 mm thick. The contacts are made of phosphor bronze with a tin over copper plating to ensure excellent electrical conductivity and corrosion resistance. The housing is crafted from black UL 94V-0 thermoplastic polyethylene terephthalate, providing superior flame retardancy and mechanical durability.
Designed for through hole mounting on printed circuit boards, this connector has a right angle orientation optimizing space on the PCB layout. It offers low insertion force (LIF) termination by soldering, facilitating easy assembly and disassembly. The connector is reusable up to 25 times when used with cables of consistent thickness, reducing maintenance and replacement costs.
Operating temperature range is from -55°C to 105°C, making it suitable for a broad range of industrial, commercial, and electronic device applications where reliability under thermal stress is essential.
The connector is part of the Trio-Mate series by TE Connectivity, a trusted series for flexible film connectors widely used in various electronic components, power, and connector systems in industrial and manufacturing environments.
6 contact points with 2.54 mm pitch. Phosphor bronze contacts with tin over copper plating for long-lasting performance. Right angle, through hole mount type with LIF solder termination. Polyethylene terephthalate housing, UL 94V-0 flame rating.
Wide operating temperature of -55°C to 105°C. Reusable up to 25 times with consistent cable thickness. Compatible with FFC/FPC cables and membrane switch circuitry.
This product is ideal for electronics manufacturing, PCB assembly, telecommunications, instrumentation, and other industrial applications requiring secure flexible cable interconnects. Explore more connectors and PCB components in the TE Connectivity series at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector features a pitch of 2.54 mm, which is standard for its design.
This model has 6 contact points, arranged in a single row.
It supports through hole mounting, which is suitable for integration into printed circuit boards.
The connector operates reliably within a temperature range of -55°C to 105°C.
The contacts are made of phosphor bronze with a tin over copper plating, and the housing is made of UL 94V-0 polyethylene terephthalate.
It features a low insertion force (LIF) design, which allows for easy and secure connection of FFC and FPC cables.
This connector can be reused up to 25 times with the same cable, provided the cable thickness remains consistent.
The connector has female contacts, which are designed for compatibility with corresponding male connectors.
The UL 94V-0 rating indicates that the housing material is flame resistant, enhancing safety in electronic applications.
Yes, this connector is specifically designed for use with flexible flat cables (FFC) and flexible printed circuit (FPC) film.
This connector is ideal for electronics manufacturing, PCB assembly, telecommunications, and instrumentation applications.
The contacts have a tin over copper plating, which provides excellent electrical conductivity and corrosion resistance.
