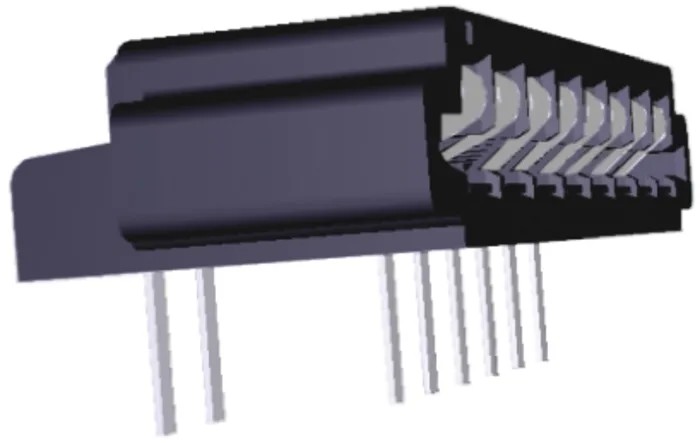

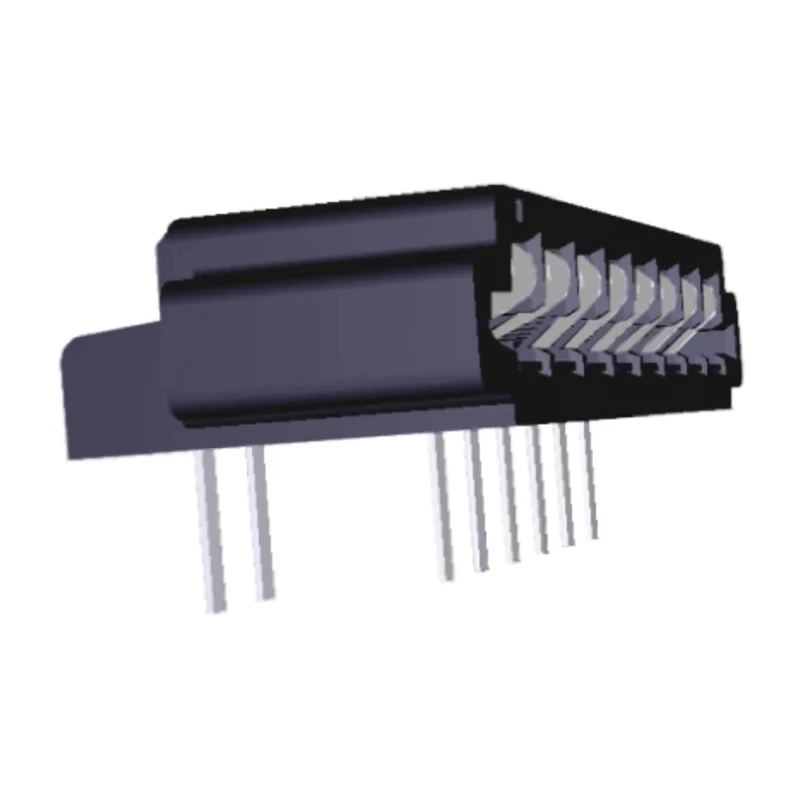

TE Connectivity Trio-Mate 2.54 mm Pitch 16 Way Right Angle Female FPC Connector, Solder 6-487508-5
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | Trio-Mate |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | FFC |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-8677Brand: TE ConnectivityManufacturers Part No.: 6-487508-5 |
| Contact Plating | Tin over Copper |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | LIF |
Key Features
- Offers a high extraction force and is reusable up to 25 times with the same cable thickness.
- Features 16 contacts with phosphor bronze contact material and tin over copper plating.
- Housing made of black UL 94V-0 thermoplastic polyethylene terephthalate for durability and safety.
- Operates reliably in temperature ranges from -55°C to 105°C.
- Right angle orientation facilitates compact PCB layouts.
- Compliance with Trio-Mate series design standards ensures compatibility.
- Low insertion force (LIF) enhances ease of assembly.
- Connector is female gender for contact and plug interface.
Product Description
TE Connectivity 6-487508-5 Trio-Mate 2.54 mm Pitch 16 Way Right Angle Female FPC Connector is a high-quality flexible film connector designed for reliable and reusable connections to flexible flat cables (FFC), flexible printed circuits (FPC), or membrane switch circuitry ranging from 0.13 to 0.38 mm thickness. It features 16 female contacts made from phosphor bronze with tin over copper plating ensuring excellent electrical conductivity and corrosion resistance.
The connector’s housing is composed of durable black UL 94V-0 thermoplastic polyethylene terephthalate, providing electrical insulation and flame retardance. Its through hole mount type with solder termination allows secure PCB fastening. The right angle design facilitates efficient PCB space usage in compact electronic assemblies.
Operating temperature tolerance ranges from -55°C to 105°C, making it suitable for demanding industrial and electronic applications. The Trio-Mate series design offers a robust, preloaded socket contact system capable of withstanding up to 25 insertions with consistent performance, ensuring longevity.
The connector exhibits low insertion force (LIF) characteristics enhancing easy cable assembly and maintenance. It is a single-row connector optimized for precise positioning on circuit boards in manufacturing, laboratory, or commercial electronics.
Offers high extraction force and reusable contacts up to 25 times. Black UL 94V-0 polyethene terephthalate housing for flame retardance. Right angle female connector suitable for flexible flat cables. Through hole solder termination method for reliable PCB connection.
Phosphor bronze contacts plated with tin over copper ensure conductivity. Operating temperature range of -55°C to 105°C for versatile use. Single row design optimized for compact PCB layouts. Low insertion force for easy cable connection and disconnection.
Compatible with flexible etched circuitry and membrane switch applications. Widely used in electronics, manufacturing, and industrial sectors.
This TE Connectivity Trio-Mate FPC Connector is ideal for engineers and technicians requiring dependable, maintenance-friendly connections on circuit boards. Explore more PCB connector options in the Electronics & Electricals category at EnvMart for comprehensive industrial component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this connector is 105°C, making it suitable for various industrial and electronic applications.
This model features 16 female contacts, ensuring reliable connections for flexible flat cables and printed circuits.
The pitch of this connector is 2.54 mm, which is standard for many flexible printed circuits.
The housing is made from black UL 94V-0 thermoplastic polyethylene terephthalate, while the contacts are made of phosphor bronze with tin over copper plating.
This connector uses solder termination, allowing for secure mounting on printed circuit boards (PCBs).
The connector has a right angle orientation, which facilitates compact PCB layouts and efficient use of space.
The minimum operating temperature for this connector is -55°C, allowing it to function in extreme conditions.
The contacts can be reused up to 25 times with the same cable thickness, ensuring longevity and reliability.
This connector exhibits low insertion force (LIF) characteristics, which enhances ease of assembly and disassembly.
It is compatible with flexible flat cables (FFC), flexible printed circuits (FPC), and membrane switch applications.
The mounting type for this connector is through hole, which provides a reliable connection to the PCB.
Yes, it complies with Trio-Mate series design standards, ensuring compatibility with other components in the series.
