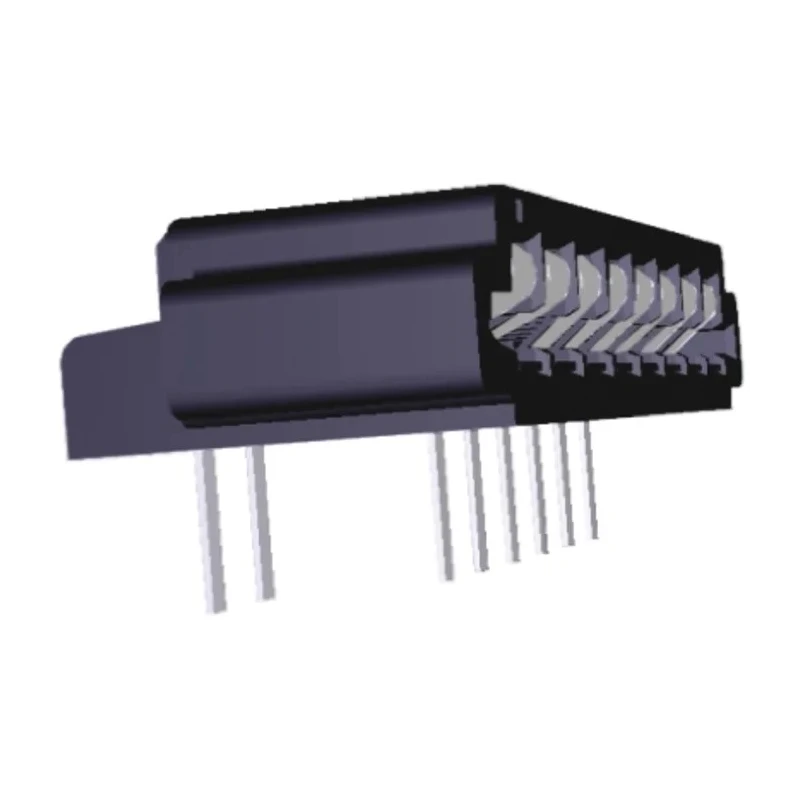

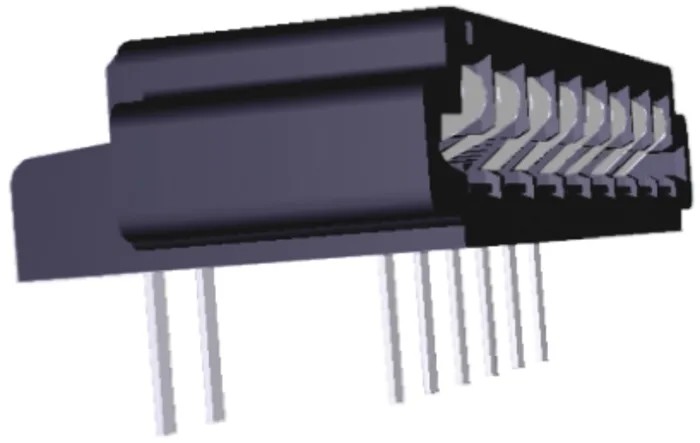

TE Connectivity Trio-Mate 2.54 mm Pitch 6 Way Right Angle Female FPC Connector Solder 5-487508-5
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | Trio-Mate |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | FFC |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Pay online using | Or choose to pay later via bank transfer |
| Contact Plating | Tin over Copper |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | LIF |
Key Features
- Features a right angle orientation for PCB mounting convenience.
- Constructed with phosphor bronze contacts for excellent electrical conductivity.
- Housing made of black UL 94V-0 thermoplastic polyethylene terephthalate for safety and durability.
- Supports flexible circuits from 0.13 to 0.38 mm thickness in the contact area.
- Preloaded with socket contacts and reusable up to 25 times without performance degradation.
- Rated for operating temperatures ranging from -55°C to 105°C for robust industrial use.
- Contact plating with tin over copper ensures corrosion resistance and reliable signal transmission.
- Has one row with six female contacts designed for low insertion force solder terminations.
Product Description
TE Connectivity 5-487508-5 Trio-Mate 2.54 mm Pitch 6 Way Right Angle Female FPC Connector is engineered for reliable flexible printed circuit (FPC) connections in industrial and electronic devices. This through-hole solder type connector offers a 2.54 mm pitch and six female socket contacts arranged in a single row with a right angle orientation for convenient PCB mounting and space saving.
The connector's phosphor bronze contacts provide excellent electrical conductivity while the contact plating of tin over copper protects against corrosion. The polyethylene terephthalate housing is a black UL 94V-0 thermoplastic that ensures durability and flame resistance, suitable for demanding operating environments from -55°C to 105°C.
This Trio-Mate connector series accepts flexible cables, etched circuitry, or membrane switches from 0.13 to 0.38 mm thickness, featuring a high extraction force and the ability to be reused up to 25 times. Its low insertion force (LIF) solder termination simplifies assembly and reduces wear on cables.
The connector is ideal for use in industrial electronics, instrumentation, communication devices, and other applications requiring dependable, compact flexible circuit connections. Its robust construction and reusability support enhanced equipment reliability and maintainability.
Right angle orientation facilitates secure mounting on printed circuit boards. Phosphor bronze contacts ensure reliable electrical performance. Tin over copper plating offers corrosion resistance and signal integrity. Black UL 94V-0 polyethylene terephthalate housing provides flame retardancy and mechanical strength.
Designed for flexible circuits 0.13 - 0.38 mm thick for versatile application. Reusable up to 25 times without loss of performance for cost effective maintenance. Low insertion force solder termination reduces assembly wear and effort.
Operating temperature range from -55°C to 105°C supports harsh industrial environments. Single row configuration with six female contacts supports compact designs.
Available as a standard part in the TE Connectivity Trio-Mate range, this connector supports industrial, manufacturing, communication, and electronic applications. Explore more TE Connectivity connectors on EnvMart to find matching components suited for your high-reliability electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this FPC connector is 2.54 mm.
It is rated for a maximum operating temperature of 105°C.
This connector features six female contacts arranged in a single row.
The housing is made of black UL 94V-0 thermoplastic polyethylene terephthalate, and the contacts are constructed from phosphor bronze with tin over copper plating.
The minimum operating temperature is -55°C.
This connector uses a low insertion force (LIF) solder termination type.
It can accept flexible circuits with a thickness ranging from 0.13 to 0.38 mm.
It can be reused up to 25 times without performance degradation.
The connector has a right angle orientation for convenient PCB mounting.
It is suitable for industrial electronics, instrumentation, communication devices, and other applications requiring compact flexible circuit connections.
It features a low insertion force (LIF) characteristic, which simplifies assembly and reduces wear on cables.
The country of origin for this connector is India.
