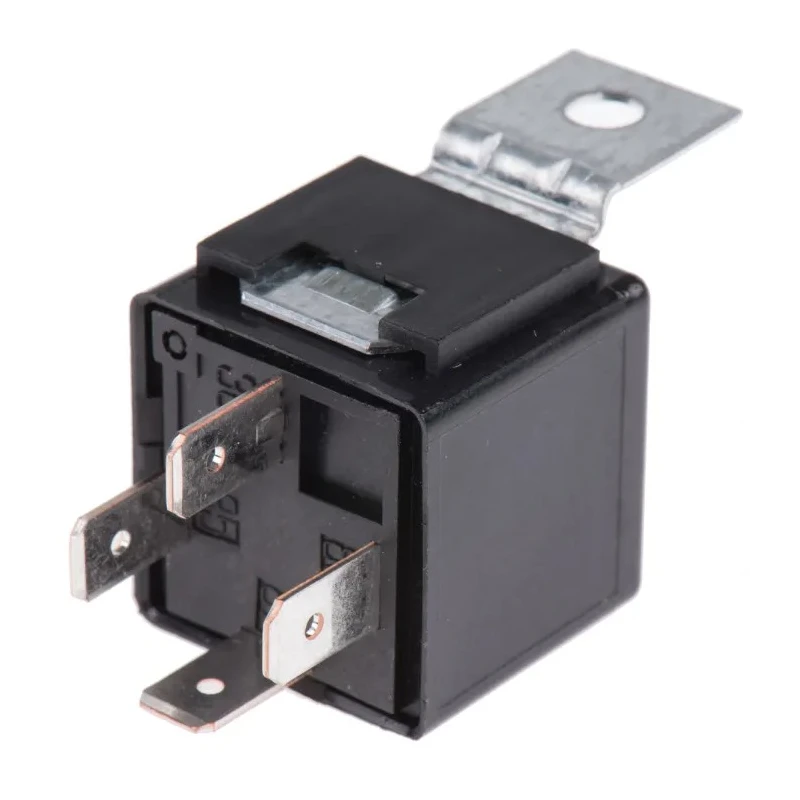

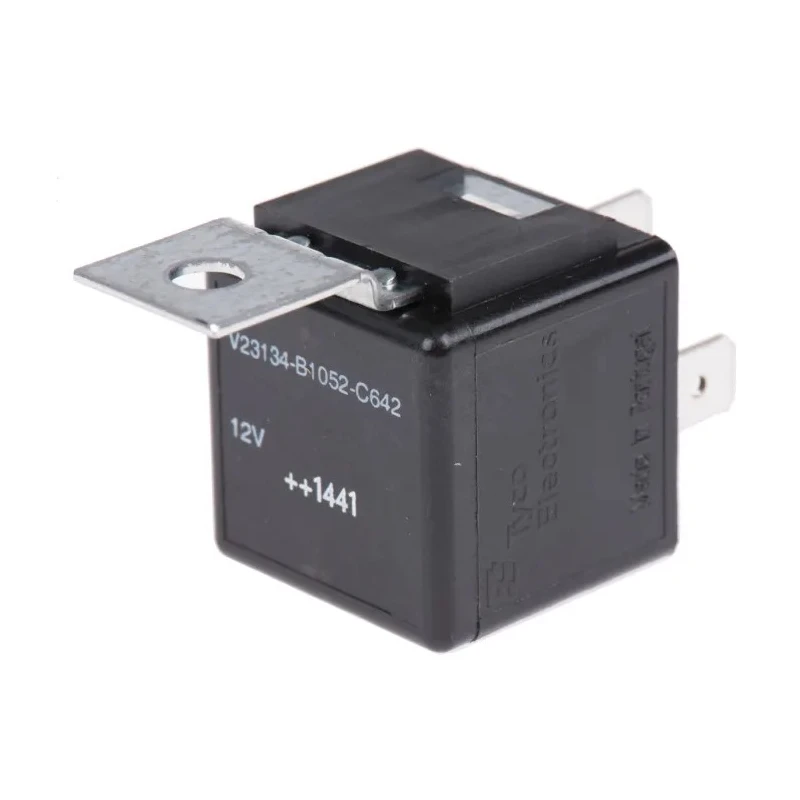

TE Connectivity Mini ISO Automotive Relay, 12V DC Coil, 40A Switching Current, SPST, Silver V23134B1052C642 3-1393303-4

TE Connectivity V23134B1052C642 3-1393303-4 Mini ISO Automotive Relay is designed for automotive electrical systems requiring robust switching capabilities. With a 12V DC coil and 40A switching current capacity, it supports various vehicle functions such as ignition lock, lamp load, exhaust emission control, ABS, fuel pump, electric power steering, wiper control, car alarm, and blower fans.

This relay belongs to the F4 series featuring integrated components and various contact arrangements. Its silver alloy contacts provide excellent conductivity and long service life even under high load conditions. The coil power rating of 1.6W and coil resistance of 91Ω ensure reliable energization while minimizing power consumption.

The F4 series is protected against dust ingress to IP54 rating, suitable for variable environmental conditions in automotive applications. It operates efficiently within a wide temperature range from -40°C to 125°C, ensuring consistent performance across harsh climates.

The relay's compact dimensions (28mm length, 53.2mm height, 33mm depth) facilitate easy installation in tight automotive spaces. The quick connect terminal type allows for secure and swift wiring connections, reducing assembly time. Coil to contact isolation voltage of 500V provides enhanced electrical safety and system protection.

Applications include ignition lock circuits, lamp load switching for headlamps, exhaust emission control devices, ABS systems, fuel pump control, electric power steering units, wiper motor control, car alarm systems, and blower fan operations. The relay is non-latching (monostable), ensuring it returns to default state when power is removed.

The relay features a coil power consumption of 1.6W, minimizing energy usage. Coil resistance is rated at 91 ohms, ensuring consistent operation. Constructed with silver alloy contact material for high conductivity and durability.

Designed to operate within temperatures from -40°C to 125°C, suitable for demanding environments. Compact dimensions (Length: 28mm, Height: 53.2mm, Depth: 33mm) fit standard automotive installations. Provides coil to contact isolation voltage of 500V for enhanced safety.

Single pole, single throw (SPST) contact configuration for precise control in vehicle electrical systems. Quick connect terminal type enables fast and secure wiring connections. Manufactured in Portugal ensuring quality and reliable performance.

Choose TE Connectivity automotive relays like model V23134B1052C642 3-1393303-4 for dependable electrical control in automotive manufacturing and repair. Explore more in our Automotive Relays category at EnvMart for superior quality components designed to meet industry standards.
