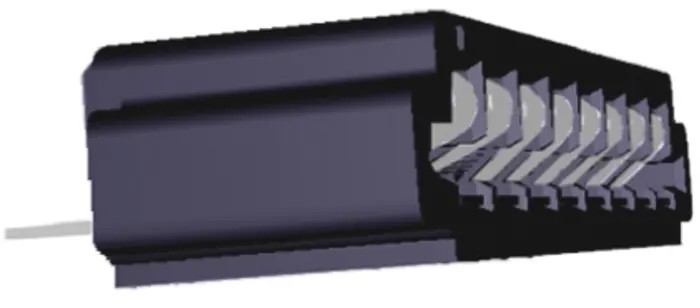

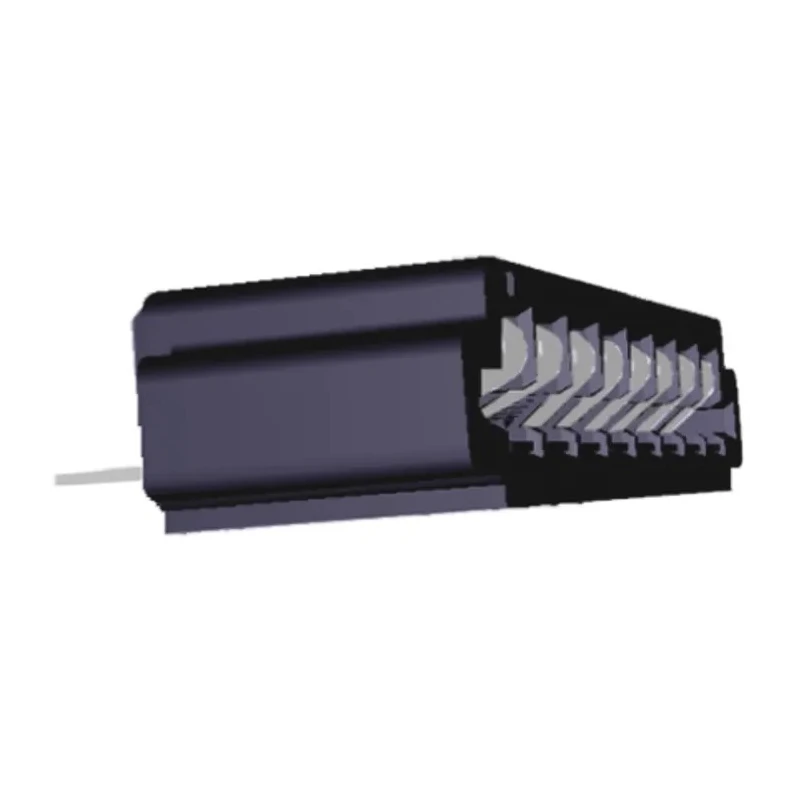

TE Connectivity Trio-Mate 2.54 mm Pitch 6 Way Straight Female FPC Connector 5-487509-5
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | Trio-Mate |
| Termination Type | Vertical Contact |
| Maximum Operating Temperature | 105°C |
| Sub Type | FFC |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-8605Brand: TE ConnectivityManufacturers Part No.: 5-487509-5 |
| Contact Plating | Tin over Copper |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | LIF |
Key Features
- This FPC connector accepts flexible flat cables and flexible printed circuits from 0.13 to 0.38 mm thick in the contact area.
- Constructed with phosphor bronze contacts plated with tin over copper for reliable conductivity.
- Features a black UL 94V-0 thermoplastic housing made from polyethylene terephthalate material.
- Offers a long operating temperature range from -55°C to 105°C suitable for harsh environments.
- Through hole mount type with a straight orientation for easy PCB integration.
- Supports 6 contact points in a single row configuration to facilitate multiple signal connections.
- This connector has a low insertion force (LIF) mechanism and is reusable up to 25 times with the same cable thickness.
- Ideal for applications requiring high extraction force and durability, including industrial electronics and communication devices.
Product Description
TE Connectivity 5-487509-5 Trio-Mate 2.54 mm Pitch 6 Way Straight Female FPC Connector with vertical contact termination is engineered for flexible film connectivity in industrial and electronic component applications. It accommodates flat flexible cable (FFC), flexible printed circuitry (FPC), or membrane switch circuitry ranging from 0.13 to 0.38 mm thickness, offering reliable connection integrity in demanding environments.
Manufactured using phosphor bronze contact material plated with tin over copper, this connector ensures excellent electrical conductivity and corrosion resistance. The black housing is made from flame-retardant polyethylene terephthalate (PET) thermoplastic compliant with UL 94V-0 standards, providing robust mechanical protection.
The connector’s through-hole mounting and straight orientation ease PCB assembly processes, supporting precise positioning and soldering. It operates reliably across a temperature range from -55°C up to 105°C, making it suitable for diverse industrial, telecommunications, and consumer electronics applications.
Designed for durability, the connector supports low insertion force and can be reused 25 times without degradation in contact quality when using the same cable thickness. The single-row 6 contact configuration supports multiple signals for compact electronic systems.
This TE Connectivity FPC connector range ensures high extraction force, improved production efficiency, and robust electrical connections. Compact design with 2.54 mm pitch suits high-density PCB layouts. Perfect for flexible circuits, membrane switches, and other flexible electronic interconnect solutions in manufacturing and prototyping.
Compliance with recognized industry standards enhances quality assurance. Trio-Mate series connectors provide flexibility and reliability for professional electronic component needs.
This 5-487509-5 model is a trusted choice for engineers and manufacturers requiring dependable female FPC Connectors with vertical contact orientation and multiple contact points. Explore EnvMart's extensive catalog for compatible connectors and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this FPC connector is 2.54 mm.
This connector can operate at a maximum temperature of 105°C.
It supports 6 contacts in a single row configuration.
The contacts are made from phosphor bronze plated with tin over copper, and the housing is constructed from polyethylene terephthalate (PET).
The minimum operating temperature is -55°C.
It uses a through-hole mounting type for easy PCB integration.
This connector features a low insertion force (LIF) mechanism, allowing for easier cable insertion.
It can be reused up to 25 times with the same cable thickness without degradation in contact quality.
This model has a vertical contact termination type.
It is suitable for applications in industrial electronics, telecommunications, and consumer electronics.
The connector features female contacts.
Yes, the housing material complies with UL 94V-0 standards for flame retardancy.
