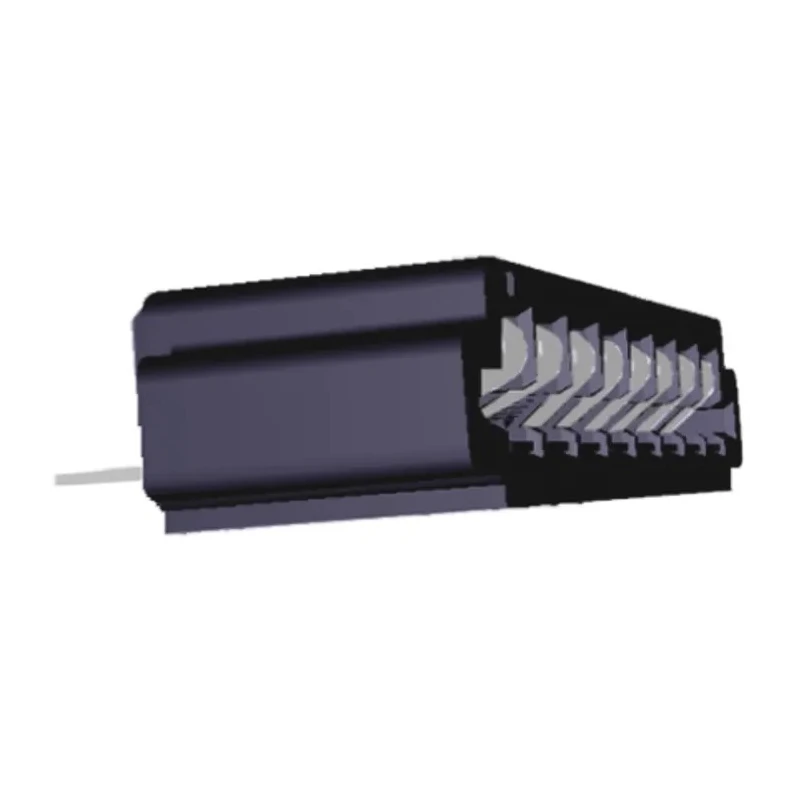

TE Connectivity Trio-Mate 2.54 mm Pitch 12 Way Straight Female FPC Connector, Solder 6-487509-1

TE Connectivity 6-487509-1 Trio-Mate 2.54 mm Pitch 12 Way Straight Female FPC Connector is engineered to provide reliable, high-extraction force connections for flexible printed circuits, membrane switch circuitry, and flexible etched circuit applications that are 0.13 to 0.38 mm thick in the contact area. Suitable for industrial, electronic, and manufacturing environments.

This connector features 12 phosphor bronze contacts preloaded in black UL 94V-0 thermoplastic housings designed for through-hole mounting on PCBs. Its tin over copper plating ensures conductivity and corrosion resistance, while the low insertion force rated contacts facilitate repeated connections with minimal wear.

Designed for operating temperatures ranging from -55°C to 105°C, it supports a wide range of temperature-sensitive applications. The straight female orientation and solder termination type are ideal for durable, permanent PCB connections.

The connector is reusable, supporting up to 25 mating cycles with consistent cable thickness, making it a sustainable choice for maintenance-heavy applications. Its compliance with Trio-Mate standards guarantees compatibility within this connector series. The single-row, 12-contact design with 2.54 mm pitch makes it suitable for compact, high-density circuit boards.

Applications include electronic component assemblies, laboratory equipment, telecommunications hardware, and industrial control systems where reliable flexible circuit interconnections are critical. This connector can be used in manufacturing, HVAC control panels, instrumentation, and other commercial or industrial electronic systems.

Features 12 contacts designed for FPC applications. Constructed with phosphor bronze contacts for durability. Housing crafted from UL 94V-0 black thermoplastic material. Straight orientation with through-hole mount type for PCB integration.

Contact plating comprises tin over copper to ensure good conductivity. Termination type is solder, compatible with standard soldering processes. Designed to operate between -55°C and 105°C temperature range. Reusable up to 25 cycles with same cable thickness for effective maintenance.

Low insertion force (LIF) rated to minimize wear during connection cycles. Compliant with the Trio-Mate series specifications for FFC/FPC Connectors. Explore TE Connectivity connectors and accessories for industrial-grade electronics and power system applications at EnvMart for premium quality and reliability.
