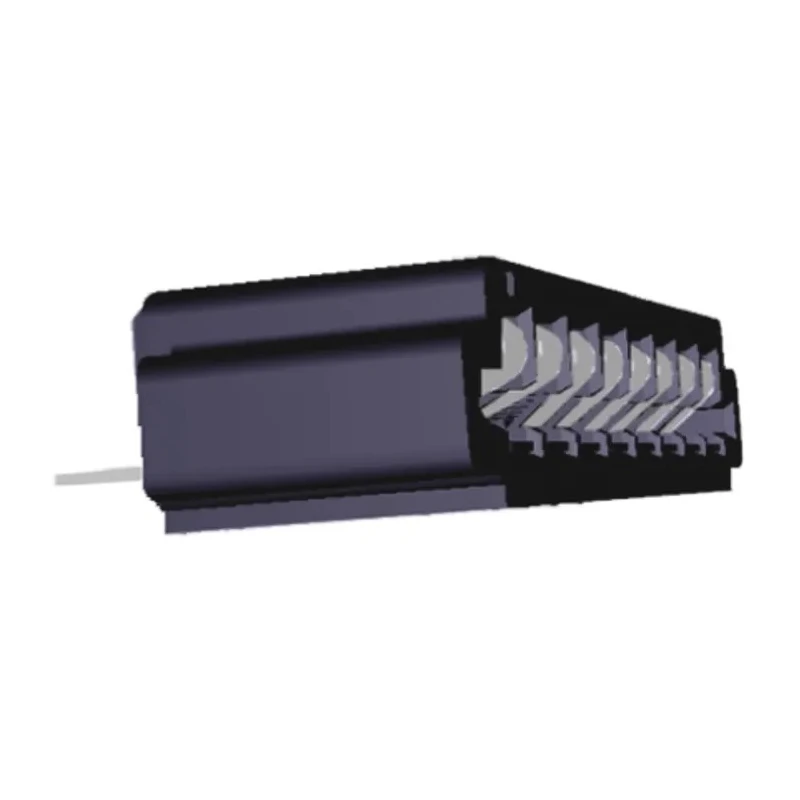

TE Connectivity Trio-Mate 2.54 mm Pitch 6 Way Straight Female FPC Connector Vertical Contact 5-487509-5

TE Connectivity 5-487509-5 Trio-Mate 2.54 mm Pitch 6 Way Straight Female FPC Connector with Vertical Contact termination is engineered for high-performance flexible printed circuit (FPC) applications. The connector is designed for flexible film connectors using flat flexible cables (FFC), flexible etched circuitry, or membrane switch circuits with thicknesses from 0.13 to 0.38 mm. Its phosphor bronze contacts plated with tin over copper offer excellent electrical conductivity and corrosion resistance.

The housing is made from black UL 94V-0 polyethylene terephthalate (PET), ensuring flame retardancy and robustness in demanding operating environments. Its through hole mount type and straight orientation facilitate secure PCB integration and reliable mechanical support.

With a pitch of 2.54 mm and 6 contacts arranged in a single row, this connector delivers consistent and reliable connections in compact electronic assemblies. The low insertion force (LIF) design reduces wear on mating components and enables repeated assembly cycles up to 25 times without degradation, maintaining signal integrity.

Operating temperature range from -55°C to 105°C makes it suitable for use in industrial, electronic manufacturing, telecommunications, and instrumentation applications where temperature resistance and durability are critical.

The Trio-Mate series is recognized for superior contact retention and high extraction force, making it an ideal choice for repeated cable assemblies or repair operations. This connector meets industry standards for quality and performance but does not carry specific certifications.

Features 6 contacts with vertical termination suitable for flexible cables. Made with high-quality phosphor bronze contacts and tin over copper plating. Housing material offers UL 94V-0 flame resistance for safety compliance.

Operates reliably from -55°C to 105°C in various environments. Low insertion force and reusable up to 25 mating cycles. Single row, 2.54 mm pitch for versatile PCB mounting options. Robust mechanical fixation with through hole mount style.

Designed for flexible film and membrane switch circuitry use. Compatible with electronic manufacturing and industrial applications.

This TE Connectivity Trio-Mate 6 Way Female FPC Connector 5-487509-5 is a high-quality component essential for electronic developers seeking reliable flexible connector solutions. Browse EnvMart’s extensive connectors category for more components from TE Connectivity and other leading brands for your electronics projects.
