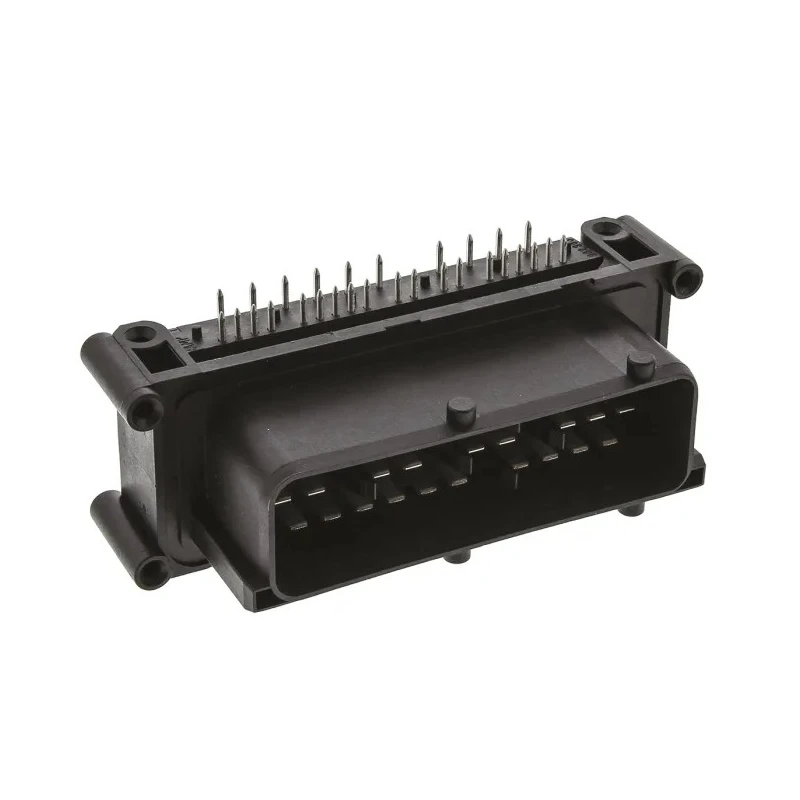

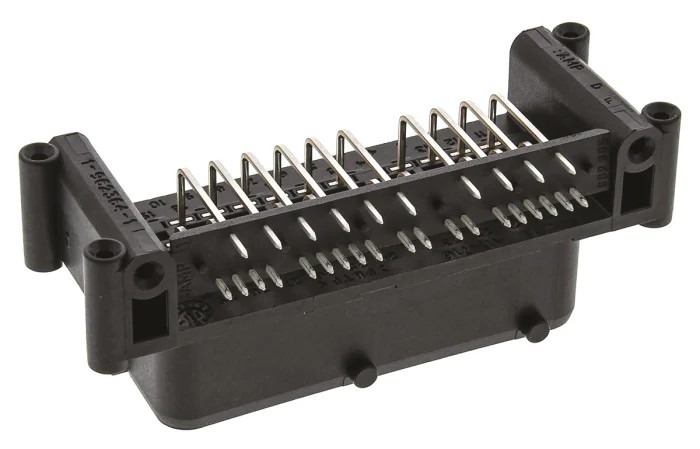

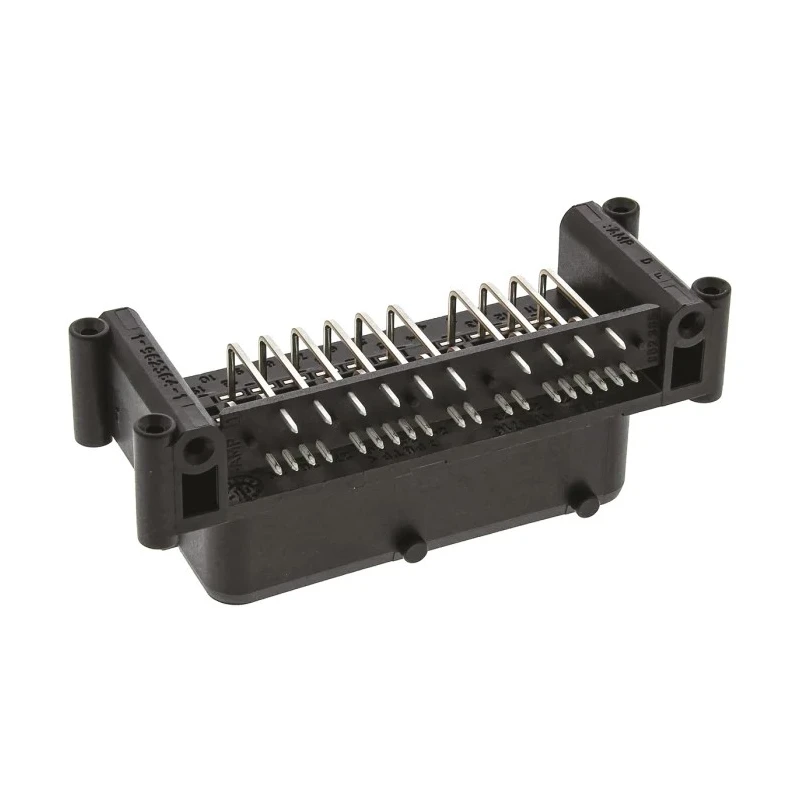

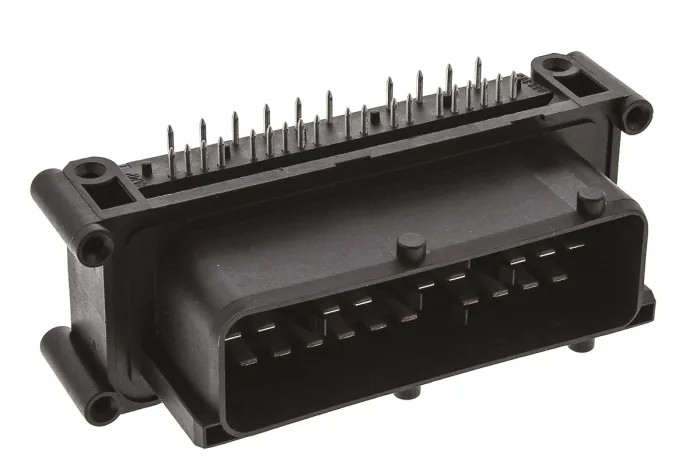

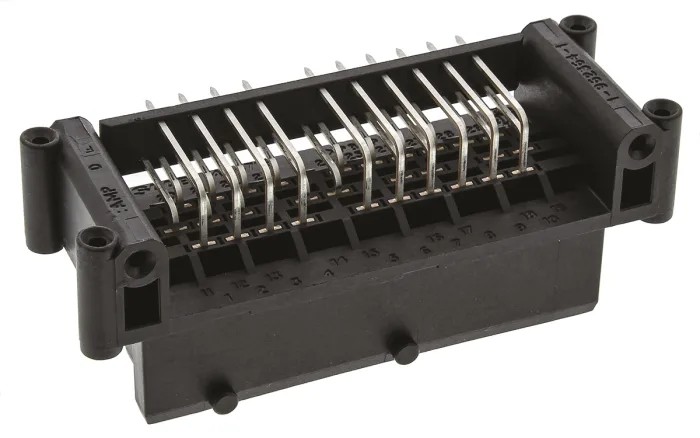

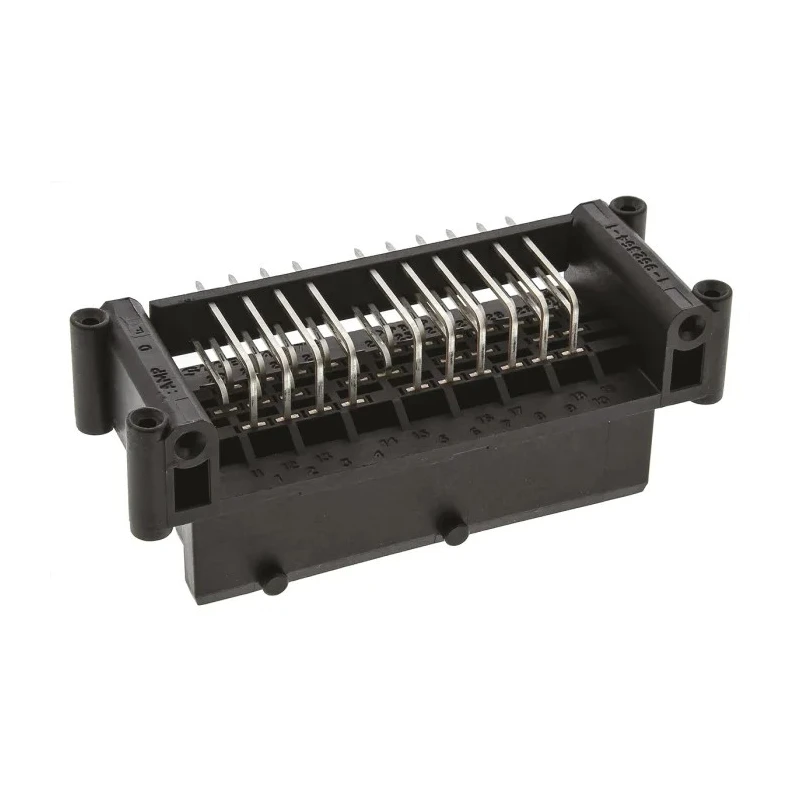

TE Connectivity Junior Power Timer Series Right Angle Through Hole PCB Header 29 Contact 5 mm Pitch 3 Row 1-963221-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 12V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 5A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate Fibreglass |
| Contact Material | Copper Alloy |
| Series | Junior Power Timer |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | 0°C |
| Number of Rows | 3 |
| Pitch | 5mm |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-3830Brand: TE ConnectivityManufacturers Part No.: 1-963221-1 |
| Contact Plating | Tin |
| Number of Contacts | 29 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Constructed with polybutylene terephthalate fiberglass housing for durability.
- Provides reliable wire-to-board connection via through hole mount.
- Features tin-plated copper alloy contacts ensuring good conductivity.
- Designed with shrouded male contacts for secure mating.
- Operates in a temperature range of 0°C to 105°C.
- Contact termination is by solder, suitable for PCB assembly.
- RoHS compliant and built to meet industry standards.
- Ideal for automotive, industrial, and electronic applications.
Product Description
TE Connectivity 1-963221-1 Junior Power Timer Series right angle through hole PCB header provides a high-quality connection solution with its 29 male contacts arranged in 3 rows at a 5 mm pitch.
The connector features a robust polybutylene terephthalate fiberglass housing that enhances mechanical strength and chemical resistance, ideal for demanding electronic and automotive environments.
Its wire-to-board connector system with through hole mount type ensures secure attachment to PCBs, supporting a reliable electrical interface at rated voltage of 12 volts and current carrying capacity of 5 amperes.
The copper alloy contacts are plated with tin for corrosion resistance and excellent electrical contact performance, while the shrouded design helps prevent misalignment and damage during insertion.
Designed to operate between 0°C and 105°C, this connector is suitable for various industrial, automotive, and electronics manufacturing applications requiring dependable and robust PCB interconnectivity.
Durable polybutylene terephthalate fiberglass housing enhances longevity and resistance. Wire-to-board through hole mount system supports secure assemblies. 29 male contacts arranged in 3 rows with 5 mm pitch ensure compact, efficient layout.
Rated for 12V and 5A current for reliable performance in power applications. Tin-plated copper alloy contacts provide corrosion resistance and stable conductivity. Shrouded contact design minimizes insertion errors and enhances connection stability.
Solder termination enables secure and permanent PCB connections. Compliance with RoHS standards assures environmental and safety compliance. Widely used in industrial, automotive, and electronics sectors for high-reliability connectivity.
EnvMart offers this TE Connectivity PCB header as a trusted component to support your PCB assembly and connector requirements in a variety of technical fields.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a voltage of 12 volts.
It features 29 male contacts arranged in 3 rows.
The current carrying capacity is rated at 5 amperes.
This unit uses a through hole mount type for secure attachment to PCBs.
The housing is constructed from polybutylene terephthalate fiberglass, which enhances mechanical strength and chemical resistance.
It operates within a temperature range of 0°C to 105°C.
The termination type is solder, which allows for secure and permanent connections on PCBs.
Yes, it is RoHS compliant, ensuring it meets environmental and safety standards.
The contacts are arranged at a pitch of 5 mm.
The connector features shrouded male contacts, which help prevent misalignment and damage during insertion.
It is widely used in automotive, industrial, and electronics manufacturing applications.
The contacts are made of tin-plated copper alloy, providing good conductivity and corrosion resistance.
