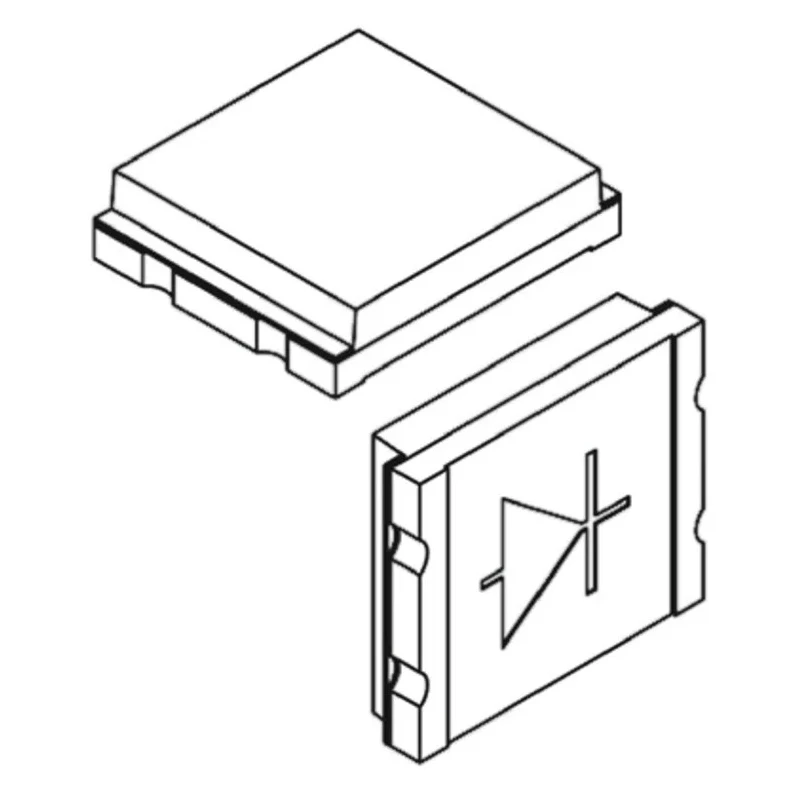

Vishay Infrared Visible Light Photodiode Surface Flat Top 5 x 4.24 x 1.12 mm TEMD5020X01
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Dimensions | 5 x 4.24 x 1.12 mm |
| Height | 1.12mm |
| Length | 5mm |
| Model | TEMD5020X01 |
| Packaging | Tape & Reel |
| Width | 4.24mm |
| Mount Type | Surface |
| Series | TEMD |
| Short Circuit Current | 32μA |
| Maximum Operating Temperature | 100°C |
| Package Type | Flat Top |
| Minimum Operating Temperature | -40°C |
| Polarity | Forward |
| Open Circuit Voltage | 350mV |
| Standards/Approvals | J-STD-020, RoHS, WEEE |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-3822 Brand: [Vishay](https://in.rsdelivers.com/brands/vishay)Manufacturers Part No.: TEMD5020X01 |
| Number of Pins | 2 |
| Typical Fall Time | 100ns |
| Automotive Standard | AEC-Q101 |
| Wavelength of Peak Sensitivity | 900nm |
| Spectrums Detected | Infrared, Visible Light |
| Breakdown Voltage | 60V |
| Minimum Wavelength Detected | 430nm |
| Maximum Wavelength Detected | 1100nm |
| Angle of Half Sensitivity | ± 65 ° |
| Radiant sensitive area | 4.4 mm² |
Key Features
- Detects infrared and visible light spectrums with sensitivity from 430nm to 1100nm.
- Flat top package measuring 5 x 4.24 x 1.12 mm for surface mount applications.
- Fast response with typical rise and fall times of 100ns each.
- Operates reliably in temperature range from -40°C to 100°C.
- Radiant sensitive area of 4.4 mm² providing efficient light detection.
- Forward polarity with short circuit current of 32 μA and breakdown voltage of 60 V.
- Meets J-STD-020, RoHS, WEEE standards and is AEC-Q101 automotive certified.
- Supplied in tape and reel packaging optimized for automated assembly processes.
Product Description
Vishay TEMD5020X01 is a high-performance infrared and visible light photodiode featuring a surface flat top package measuring 5 x 4.24 x 1.12 mm. This photodiode detects light wavelengths ranging from 430 nm up to 1100 nm with peak sensitivity at 900 nm and an angle of half sensitivity at ± 65°, enabling wide-angle light detection suitable for many applications.
The device offers fast response times with typical rise and fall times of 100 ns, making it ideal for high-speed photo detector applications in industrial, laboratory, automotive, and consumer electronics sectors.
Designed for surface mount (SMD) assembly, the TEMD5020X01 features a radiant sensitive area of 4.4 mm² for effective light capturing. It exhibits robust electrical characteristics including a short circuit current of 32 μA, an open circuit voltage of 350 mV, a maximum breakdown voltage of 60 V, and forward polarity operation.
This photodiode operates reliably from -40°C to 100°C, conforming to demanding operating environments. Compliance with international standards such as J-STD-020, RoHS, WEEE, and AEC-Q101 automotive standard verifies its quality and suitability for sensitive and long-lasting applications.
The product is delivered in tape and reel packaging to support automated pick-and-place manufacturing processes, improving production efficiency. The Vishay TEMD5020X01 photodiode is optimal for electronic components applications including optocouplers, photo sensors, and light detection systems.
Detects infrared and visible light spectrums from 430 nm to 1100 nm range. Surface mount flat top package with dimensions 5 x 4.24 x 1.12 mm. Fast rise and fall times of 100 ns each for high-speed response. Operating temperature from -40°C to 100°C for reliability in harsh environments.
Radiant sensitive area of 4.4 mm² providing efficient light detection. Short circuit current of 32 μA and forward polarity operation. Compliance with RoHS, WEEE, J-STD-020, and automotive AEC-Q101 standards. Packaged in tape and reel for seamless integration in automated assembly.
Explore more optoelectronic components and photodiodes at EnvMart for your industrial and manufacturing needs.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model detects wavelengths ranging from 430 nm to 1100 nm, with peak sensitivity at 900 nm.
It has a flat top package measuring 5 x 4.24 x 1.12 mm.
The typical rise and fall times are both 100 ns, allowing for fast response in applications.
The photodiode operates reliably within a temperature range of -40°C to 100°C.
It features a radiant sensitive area of 4.4 mm², which enhances its light detection efficiency.
The maximum breakdown voltage is 60 V, ensuring safe operation under specified conditions.
It complies with J-STD-020, RoHS, WEEE standards, and is AEC-Q101 automotive certified.
It is supplied in tape and reel packaging, optimized for automated assembly processes.
The photodiode operates with forward polarity, which is important for its electrical characteristics.
The short circuit current is 32 μA, indicating its electrical performance under short circuit conditions.
The angle of half sensitivity is ± 65°, allowing for wide-angle light detection.
