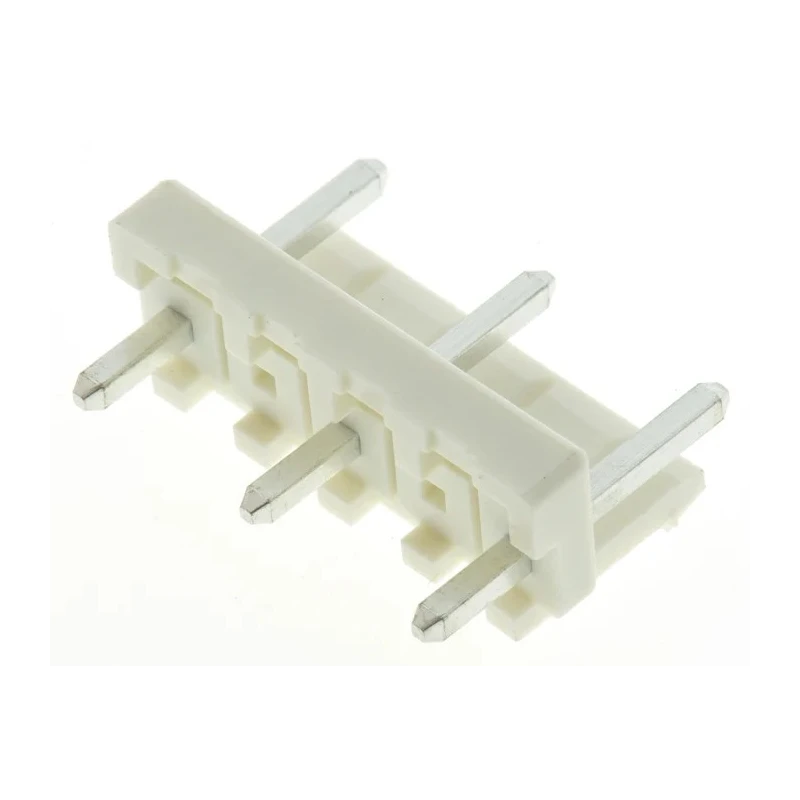

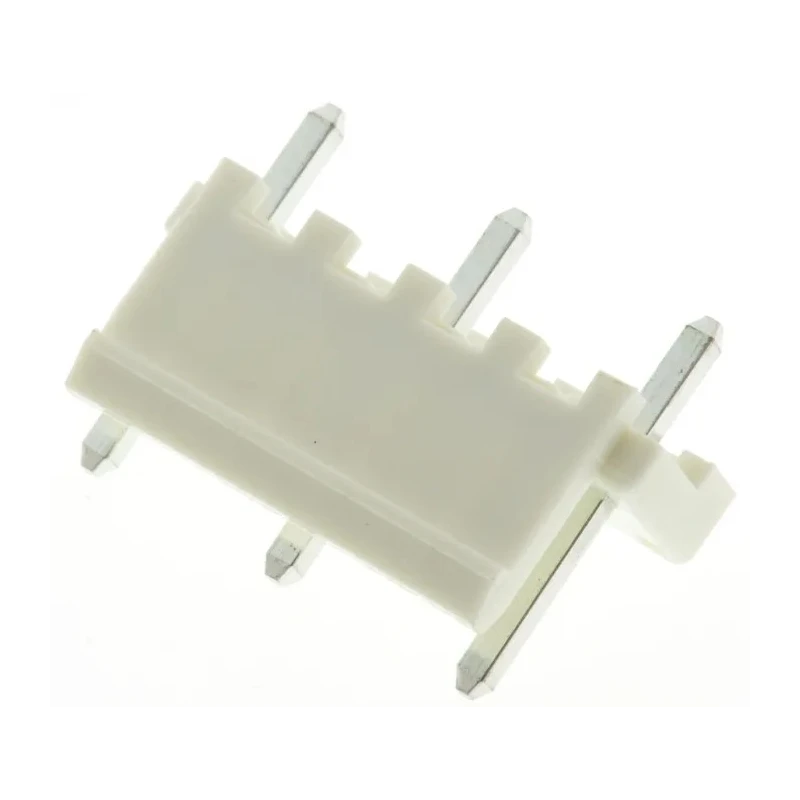

TE Connectivity Economy Power Series Straight Through Hole PCB Header, 5 Contact(s), 7.92 mm Pitch, 1 Row 1-1123724-3
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 7.5A |
| Mount Type | Through Hole |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | Economy Power |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 7.92mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 712-1236PBrand: TE ConnectivityManufacturers Part No.: 1-1123724-3 |
| Contact Plating | Tin |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.7mm |
Key Features
- Features a fiberglass reinforced polybutylene terephthalate housing for durability.
- Includes brass contacts with tin plating for reliable conductivity.
- Designed for a single row with a 7.92 mm pitch between contacts.
- Supports operating temperatures from -65°C to 105°C, suitable for diverse environments.
- Tail pin length of 3.7 mm for effective solder termination.
- Shrouded design enhances connector protection and safety.
- Compatible with PCBs up to 1.60 mm thickness for versatile mounting.
- Meets industry power connector standards but carries no explicit certifications.
Product Description
TE Connectivity 1-1123724-3 Economy Power Series Straight Through Hole PCB Header is engineered for reliable wire-to-board electrical connections, supporting a current rating of 7.5A at 250V in power circuit applications.
The connector features a robust fiberglass reinforced polybutylene terephthalate (PBT) housing that ensures mechanical stability and durability in industrial environments. It has 5 brass contacts with tin plating arranged in a single row with a precise 7.92 mm pitch for consistent PCB mounting. The tail pin length of 3.7 mm ensures a secure solder joint when mounted through-hole.
Its shrouded design provides enhanced protection against accidental contact and mechanical damage, making it suitable for applications requiring increased safety.
Operating temperature range spans from -65°C to 105°C, making this connector ideal for use in challenging industrial, manufacturing, and electronic assembly contexts where temperature variability is expected.
This PCB header is suited for PCBs with thicknesses up to 1.60 mm and supports a wire-to-board connection system for power supplies or signal transmission in industrial and commercial electrical devices.
Fiberglass reinforced PBT housing provides long-term durability. Brass contacts with tin plating guarantee efficient electrical conductivity. Single row, 5 contacts with 7.92 mm pitch ensures accurate placement. Wide operating temperature range accommodates diverse conditions.
Shrouded body design increases safety and mechanical protection. Through-hole mounting type assures strong PCB attachment. Supports power connectors up to 250V and 7.5A current.
This TE Connectivity Economy Power Series PCB header is a dependable component for use in industrial, manufacturing, HVAC, electronics, and power distribution systems, enabling secure and stable electrical connections. Explore more industrial connectors on EnvMart for your project needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 7.5A at 250V, making it suitable for power circuit applications.
The pitch between the 5 contacts in this connector is 7.92 mm, ensuring accurate placement on the PCB.
It features a fiberglass reinforced polybutylene terephthalate (PBT) housing and brass contacts with tin plating for reliable conductivity.
The maximum operating temperature for this PCB header is 105°C, allowing it to function in a variety of environments.
This unit utilizes a through-hole mounting type, ensuring a strong attachment to the PCB.
The tail pin length is 3.7 mm, which facilitates effective solder termination when mounted.
It is compatible with PCBs up to 1.60 mm in thickness, providing versatility in mounting options.
This model features a shrouded design, which enhances connector protection and safety against accidental contact.
The minimum operating temperature is -65°C, making it suitable for use in challenging conditions.
This connector has 5 contacts arranged in a single row, designed for wire-to-board connections.
The orientation of this connector is straight, suitable for straightforward mounting on PCBs.
It supports a wire-to-board connection system, ideal for power supplies or signal transmission.
